Kidde IG-100 User Manual

Component Descriptions
April 2020 2-22 06-237619-001

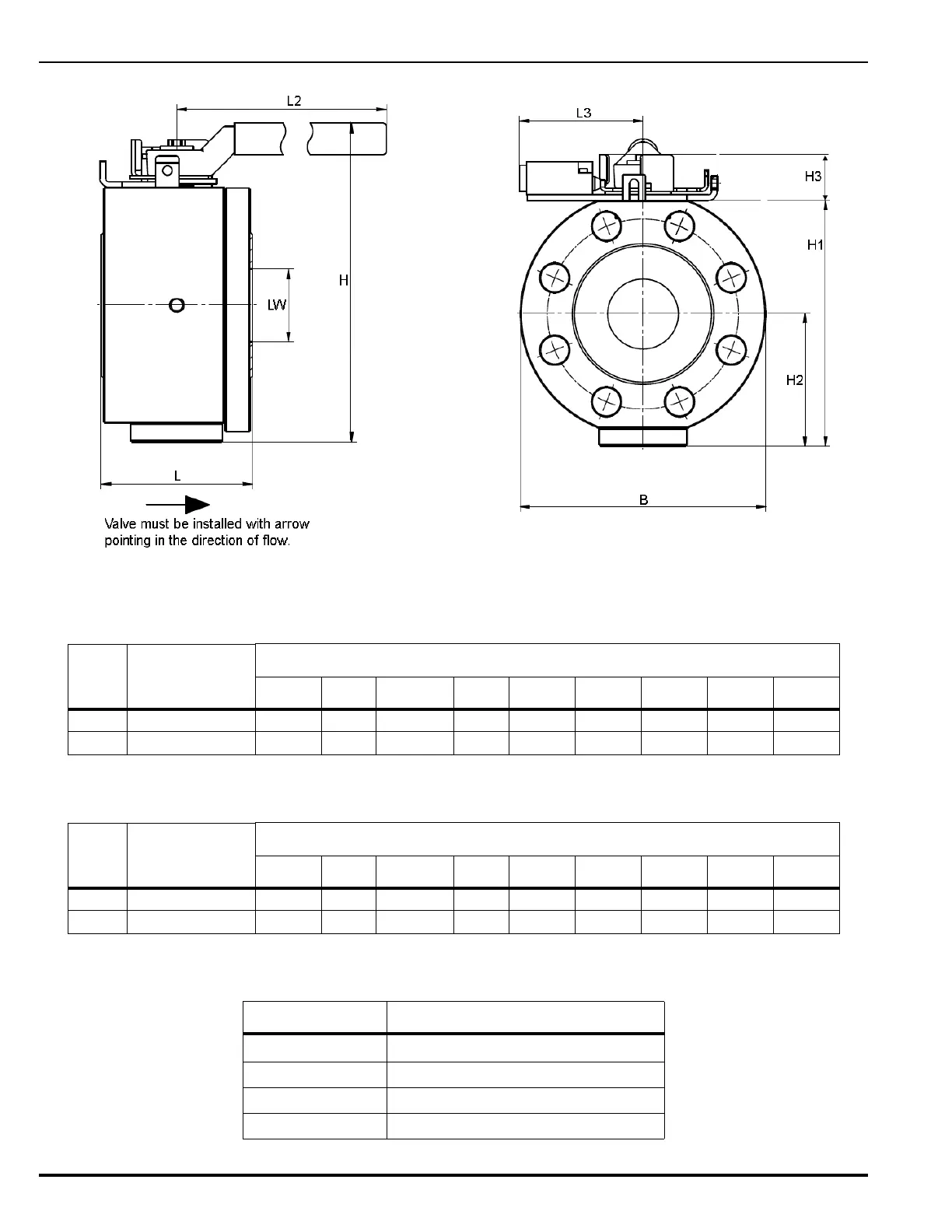

Figure 2-28. 3”, and 4” Lockout Valves
Table 2-19. Lockout Valves Dimensions and Part Numbers for 3” and 4” valves (U.S. Customary Units)
Valve
Size
Part Number
Approximate Dimensions (inch)
LW L L2 L3 H H1 H2 H3 B
3” 38-409830-009 Ø 3.0 6.3 23.6 4.4 11.5 9.5 5.0 1.5 9.4
4” 38-409830-010 Ø 4.0 7.5 27.4 4.9 14.3 11.1 6.0 3.2 10.9
Table 2-20. Lockout Valves Dimensions and Part Numbers for 3” and 4” valves (SI Units)
Valve
Size
Part Number
Approximate Dimensions (mm)
LW L L2 L3 H H1 H2 H3 B
3” 38-409830-009 Ø 78 160 600 111 291 238.7 127.5 38.3 238
4” 38-409830-010 Ø 100 190 696.5 123.5 364 283 151.5 81 277
Table 2-21. Kidde IGS Lockout Valve Part Numbers
Part Number Description
38-409830-005 Valve, 1" NPT Lockout (Isolation)
38-409830-007 Valve, 2" NPT Lockout (Isolation)
38-409830-009 Valve, 3" NPT Lockout (Isolation)
38-409830-010 Valve, 4" NPT Lockout (Isolation)
