Basic Features ｜ CONFIG Settings
Displaying and setting CONFIG parameters
CF00, CF60, and CF80 are execution parameters of features. For the execution procedure,
see the details of each CONFIG parameter.
1
Use the CONFIG key and the VOLTAGE knob to select the CONFIG
parameter you want to set.
The CONFIG key lights. The voltmeter displays the parameter number. The ammeter
displays the corresponding setting. Pressing CONFIG changes the tens digit. Turning
the VOLTAGE knob changes the ones digit.
Pressing LOCAL changes the CONFIG parameter number to the mnemonic display.
Turning the VOLTAGE knob while holding down the LOCAL key switches the CONFIG
parameter while retaining the mnemonic display.
2
Turn the CURRENT knob to change the value of the parameter.
3
To specify or display other parameters, repeat Step1 and Step2 .
4
Hold down CONFIG until the measured value display appears, or press
PWR DSPL.
There are parameters whose values are applied immediately, those whose values are
applied after the power is turned off and then back on, and those whose values are
applied when [APPL] is executed using CF60 (p.54).

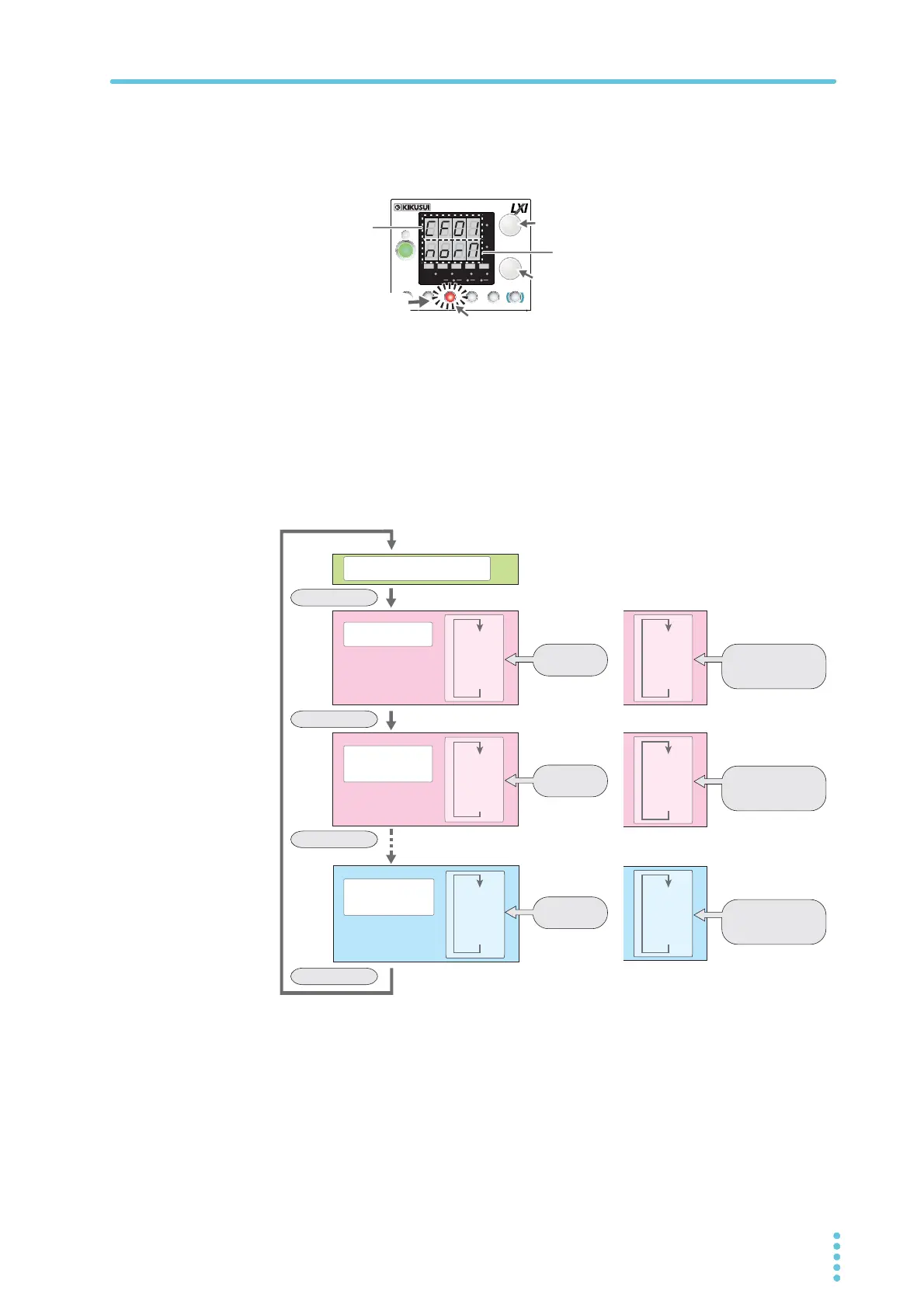

CONFIG setting and
display examples
CV
CC
/ W
V
A
AL M RMT LOCK LAN
BCA
PRESET
DLY SEQ HBSSVIR
CV
CC
/ W
V
A
AL M RMT LOCK LAN
SC2 SC3 LOCKALM CLR SC1
SHIFT
FINE
FINE
REGULA TED DC POWER SUPPLY
OUTPUT
VOLTAGE
CURRENT
CONFIG PWR DSPLMEMORY LOCALSET OVP•OCP
Lit
Value display
CONFIG ke
y
Select the
p
arameter number.
Parameter number
CF (CONFIG) + a
two-digit number or
mnemonic display
VOLTAGE knob
Select the parameter number.
CURRENT knob
Select the value or the
parameter to display.
CONFIG key
CONFIG key
CONFIG key
CONFIG key
Measured value display
mnemonic display
Basic settings
Basic settings
(external)
CF00
CF01
CF09
CF10
CF11
CF19
... ...
VOLTAGE
knob
RST
BLE
OFF.D
...
VOLTAGE knob
+
LOCAL key
E.CC
E.CV
STS.A
...
VOLTAGE knob
+
LOCAL key
PROG
REM.L
TRG.O
...
VOLTAGE knob
+
LOCAL key
VOLTAGE
knob
...
Sequence
Setting
CF80
CF81
CF84
VOLTAGE
knob
