Advanced Features ｜ Synchronized Operation
3

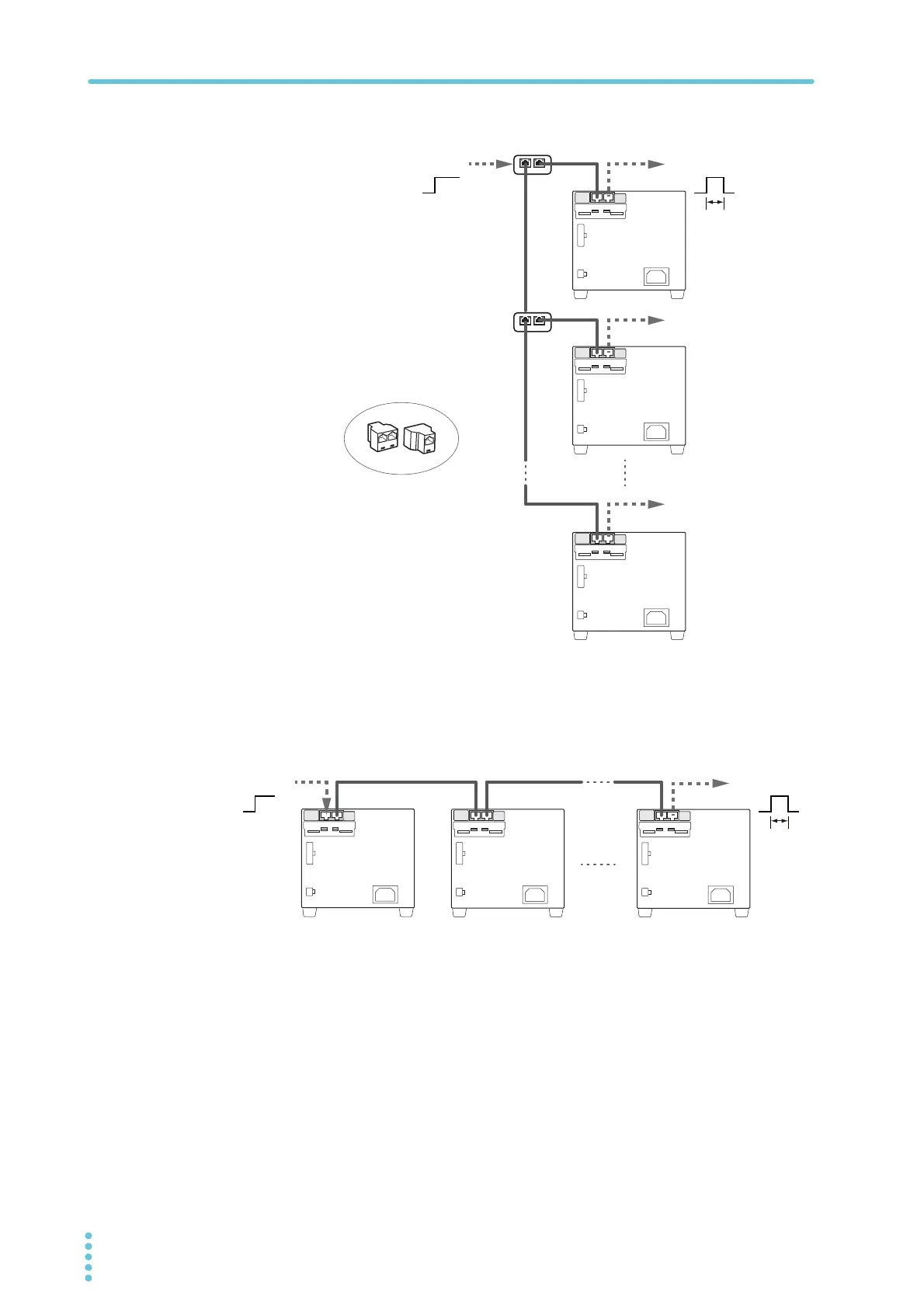

Connect all the PWR-01s with LAN cables.
If you want to synchronize the resumption of steps in a sequence program, you can cascade
PWR-01s as shown in the following figure by setting the trigger output
(PROG:STEP<n>:TRIGOUT ON) in steps.
External device
External device
External device
RJ45
RJ45
TRG IN
TRG OUT
TRG IN
TRG OUT
TRG IN
TRG OUT
Use a RJ45 modular
branch splitter for
branching.
External device
100 μs
800W model connection example 1
External device
External device
TRG IN
TRG OUT
TRG IN
TRG OUT
TRG IN
TRG OUT
100 μs
800W model connection example 2
(only when synchronizing the resumption of steps in a sequence program)
