Matrix 2360 Programmable Shear User Manual - Section 6
12-092600 A 45
20. Feed material onto the input
platen, and allow a little loop to
form, hanging in front of the loop
sensor. Insert the end of the
material into the drive rollers, and
set the machine for production as
described in the OPERATION
section.
21. Adjust the sensor so a generous
loop of material is maintained at
the infeed end of the machine.
Adjust the horizontal position of
the material so that the lens array
on the front of the sensor cannot
look past the material on the roll.

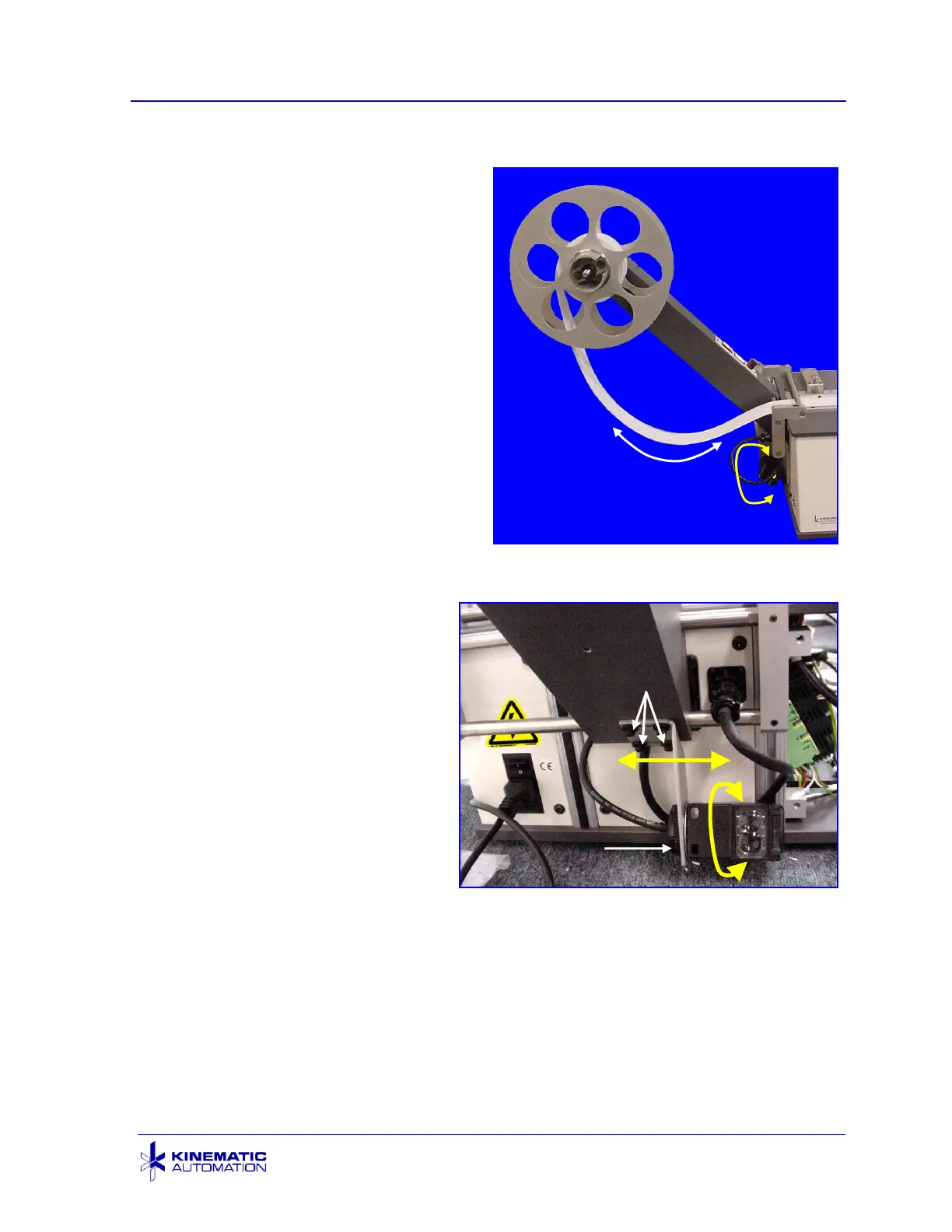

Roll Feed with Appropriate Loop
22. The sensor array should be
approximately centered on
the roll material. The sensor
mounting may be adjusted by
loosening the sensor mount
lock and changing the sensor
angle. The sensor may also
be mounted further in or out
on the mounting bracket by
loosening the mounting
bracket screws and shifting
the bracket horizontally.
Loop Sensor
