18. Now, adjust the roll feed arm for the
size of material by placing the
material on the roll and aligning the
membrane to the infeed track. The
feed arm can be moved to
accommodate your material by
lifting the arm and sliding it to the
right or left. Adjust the web width
guide rails.

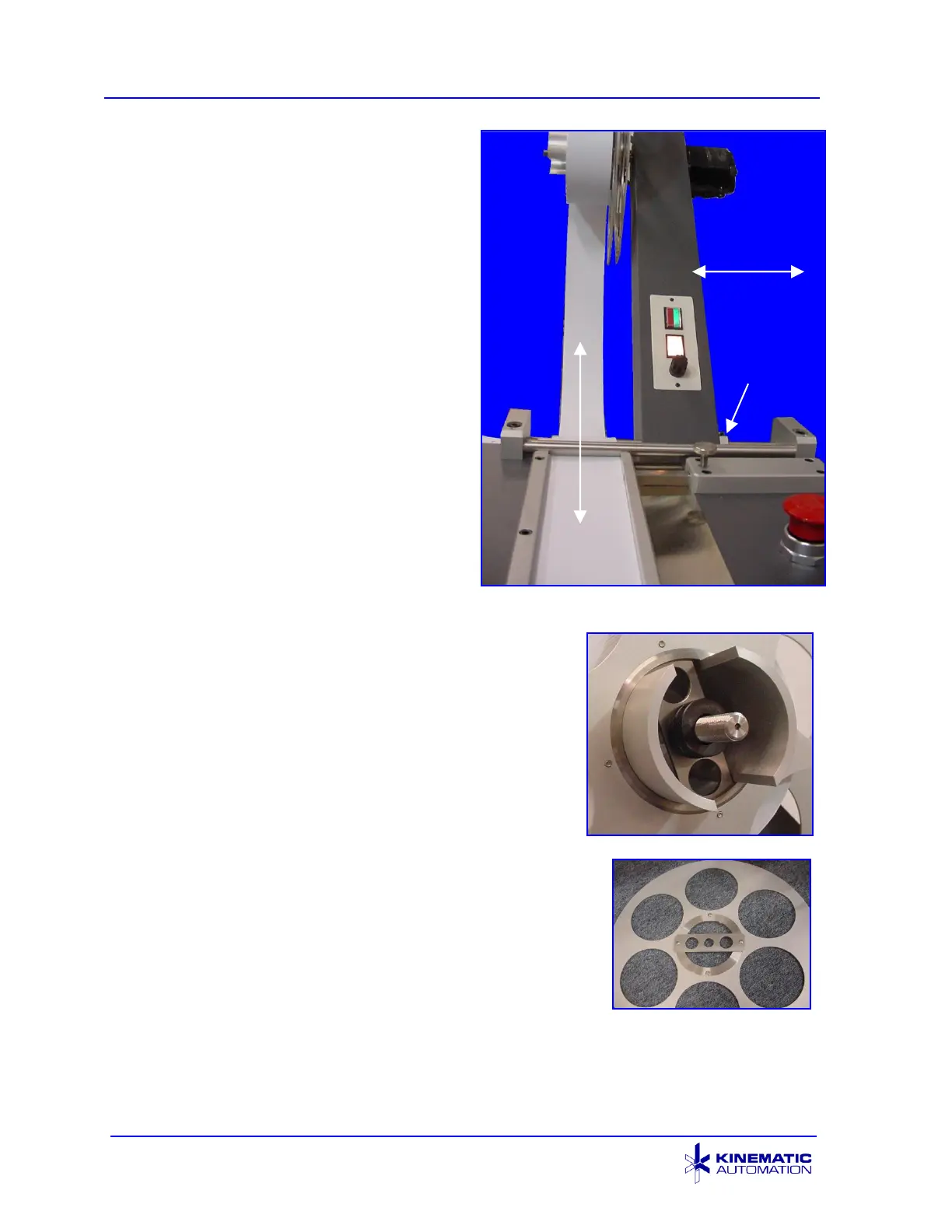

Aligning Roll Feed Arm
19. Place outside flange on the roll hub to hold
material securely. Lock in place.
Roll Hub Lock
Outside Flange (Interior Side)
