KLS Martin group marLED E3 - Checking Locking Screws

Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 151

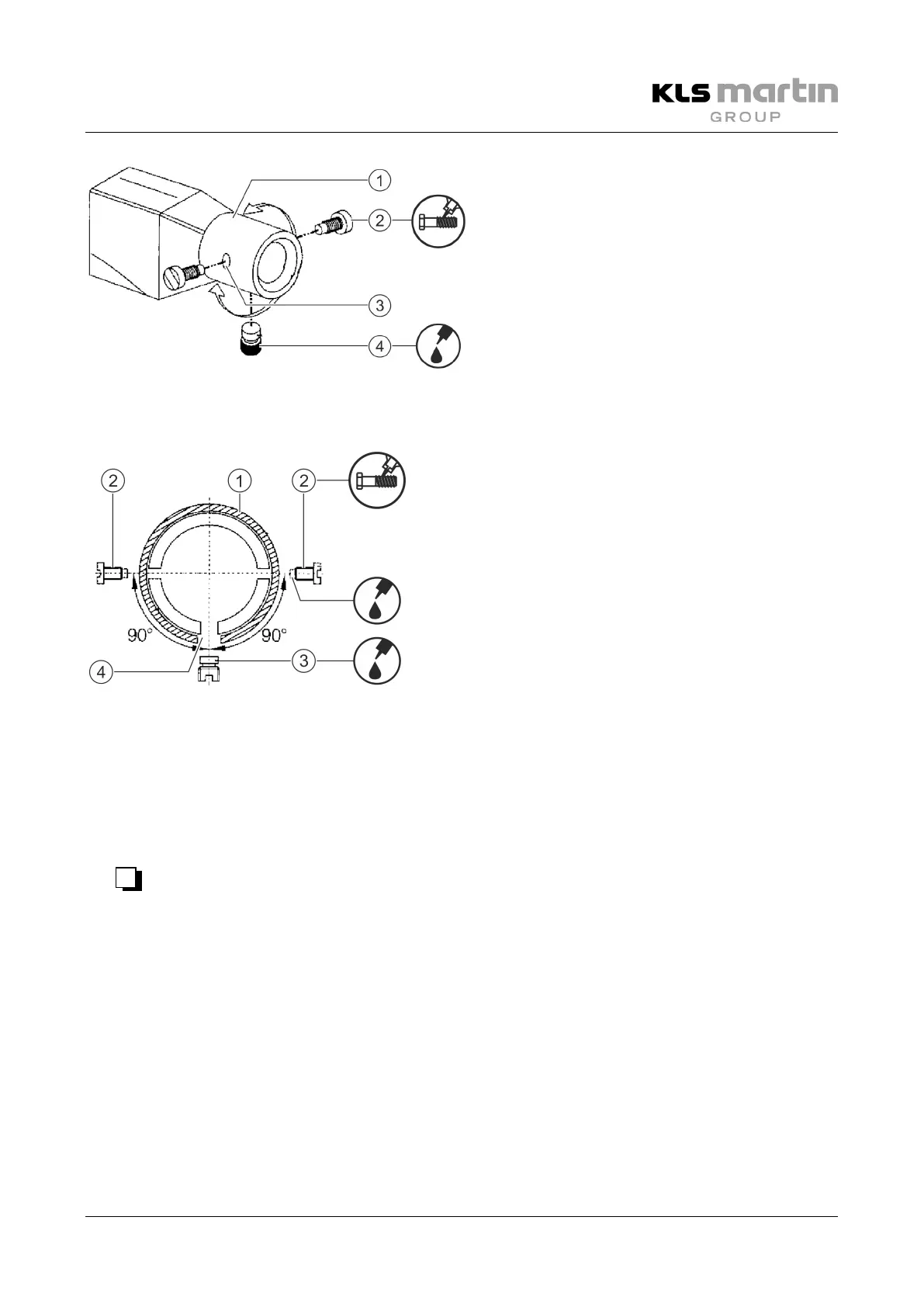

AC2000 LC and Onda Space LC
1
Spring arm sliding sleeve
2
Locking screws
3
Mounting hole of sleeve
4
Brake screw, grease here
c) Checking the locking screws
AC2000 LC and Onda Space LC
1
Spring arm sliding sleeve
2
Locking screws, grease here
3
Brake screw, grease here
4
Fit of brake screw
• Check for presence, correct length and suitable pin diameter (4) of the 2 locking screws (2):
– AC2000 LC: Locking screws (2) length ≥ 10 mm, Ø pin ≥ 2.5 mm
– Onda Space LC: Locking screws (2) length ≥ 21 mm, Ø pin ≥ 2.5 mm
Measure the pin diameter on the location with the smallest diameter.
• Replace worn and missing parts.
• Install the 2 locking screws (2) with screw lock.
• √
