Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
92 Revision 2

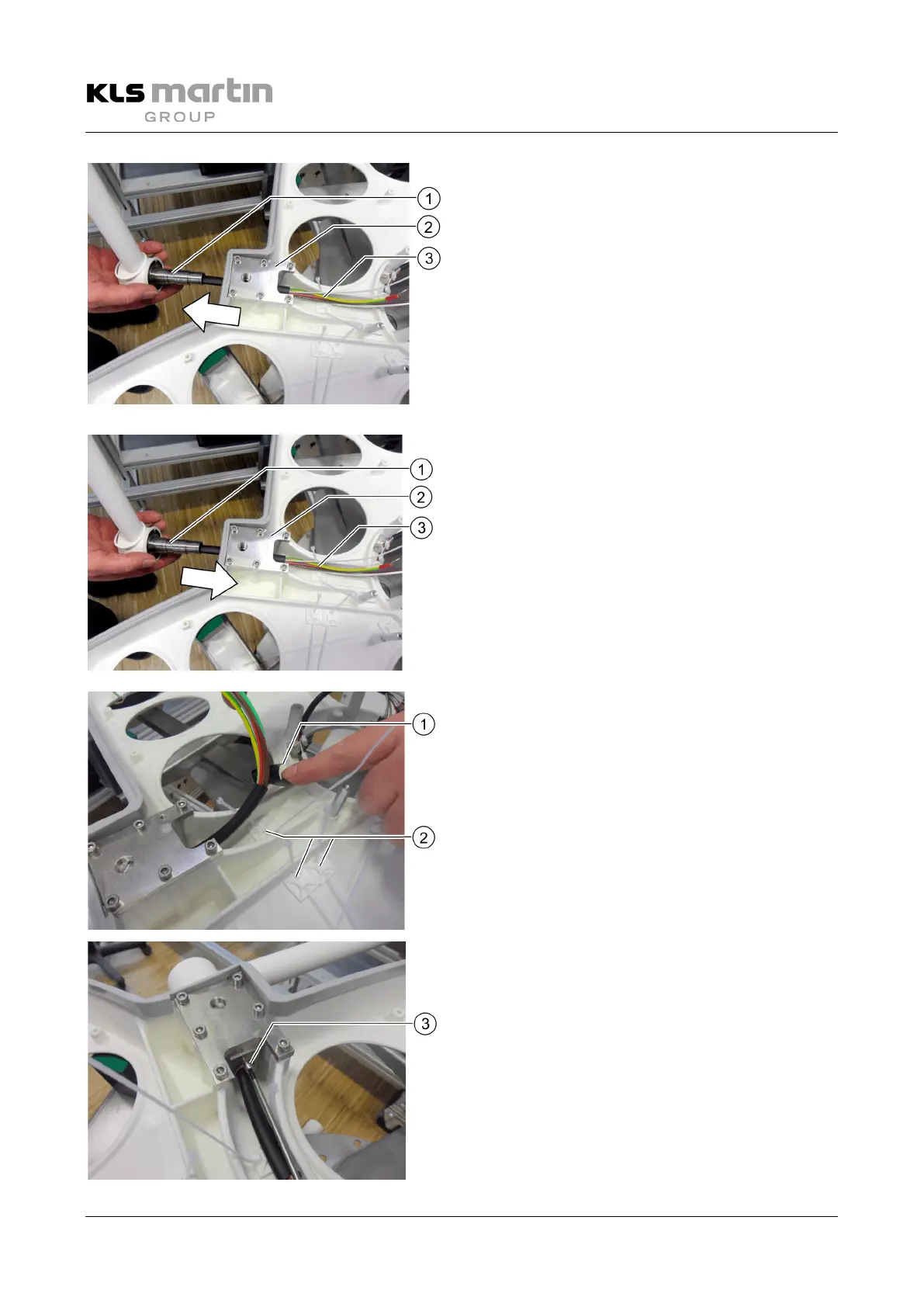

Removing old cardanic suspension
1
Cardanic suspension
2
Bearing block
3
Connecting cable
• The cardanic suspension (1) is now
disconnected and can be removed from the
bearing block (2).
The remaining brake screws remain mounted.
• Disconnect the connecting cable (3) and pull it
backward out of the bearing block (2).
Putting new cardanic suspension back in place
1
Cardanic suspension
2
Bearing block
3
Connecting cable
• Grease the neck of the new cardanic
suspension (1), then insert it into the bearing
block (2), connecting cables (3) first.
Fixing the cable in place again
1
Fixing clamp
2
Cable tie
• Reinstall cable, cable ties (2) and fixing
clamps (1) in accordance with your notes.
Installing locking segment
3
Locking segment with screw
• Mount locking segment with screw (3) and
tighten with screwdriver.
