Service Manual
Operating Lights marLED® E3, E9, E9i, E15, battery and
marLED® E3 on ceiling tube Ø 110 mm
Revision 2 93

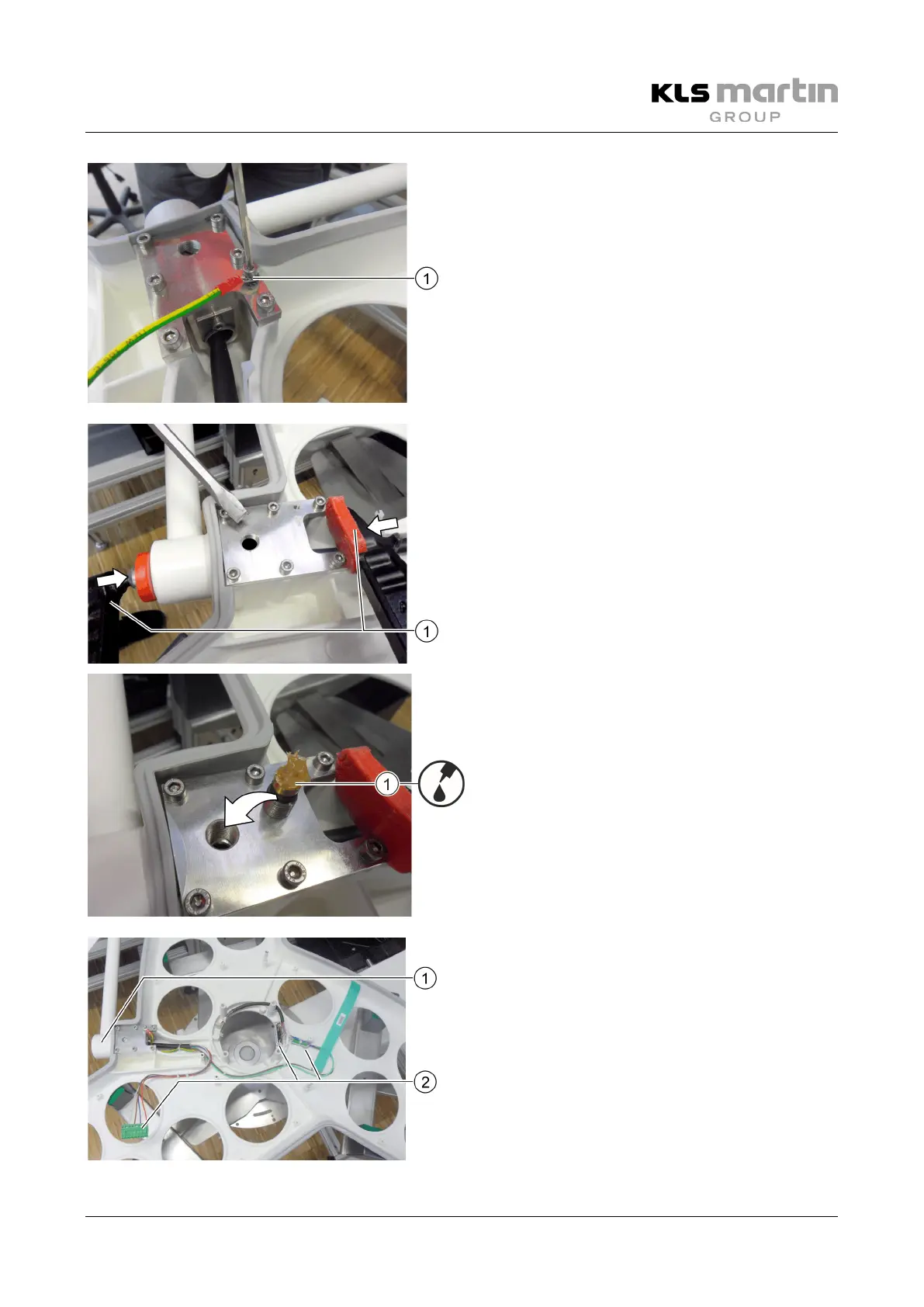

Installing protective grounding
• Screw protective (PE) conductor (1) in place
with screwdriver.
Fixing cardanic suspension in place
1
Screw clamp
• Using the screw clamp (1), fix cardanic
suspension in place in its bearing block seat.
Inserting the greased brake screw
• Grease brake screw (1), then screw it in place.
Checking the cables for correct installation
Cable with connecting plugs
• Using your notes, check all cable connections
and fixations for correctness.
• Reconnect the cables and fix them in place.
