Kohler KDI 1903M - Heater (Replacement)

11
INFORMATION ABOUT OPTIONAL
COMPONENTS
EN 146
3.

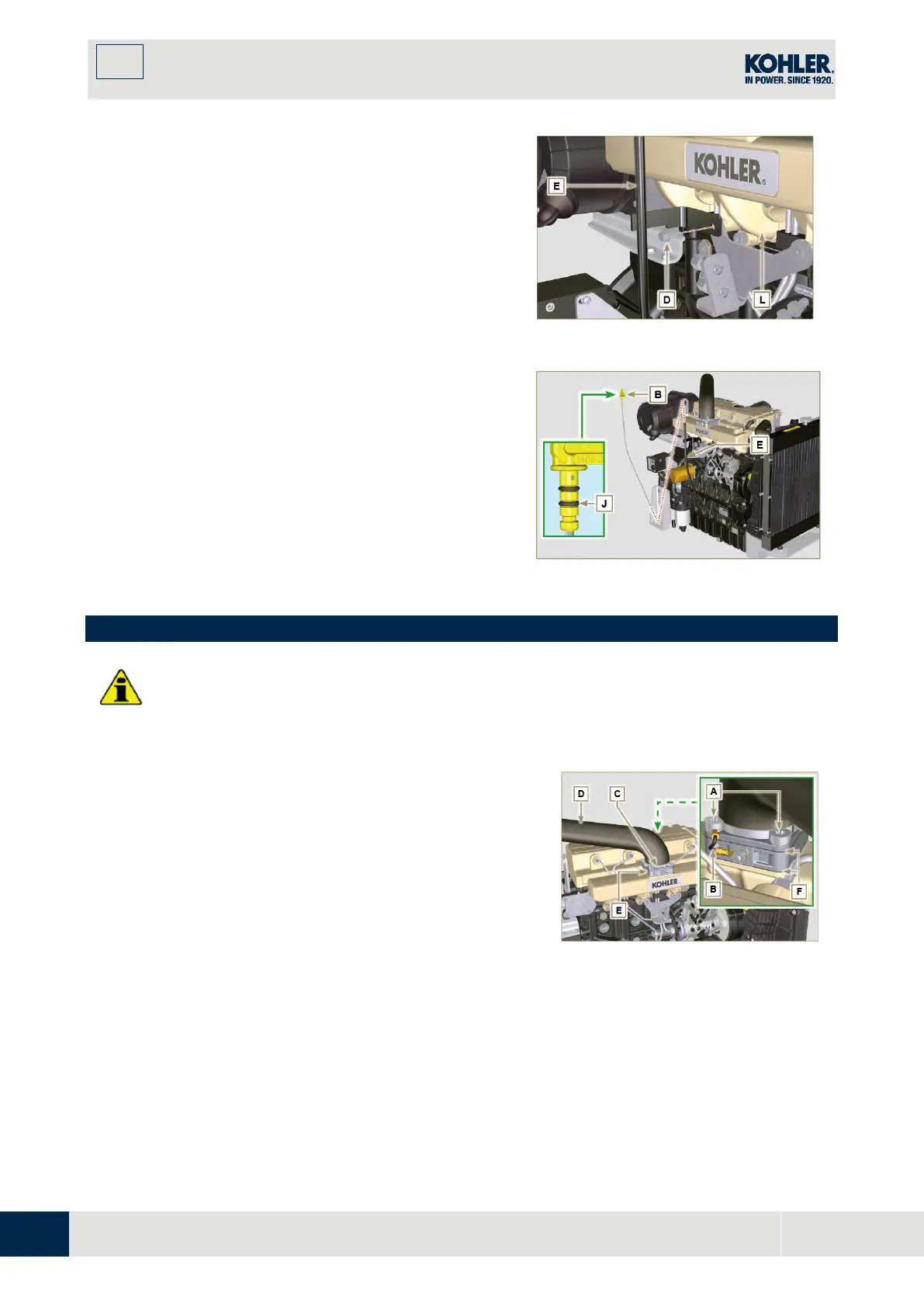

Tighten the oil dipstick hose E using the screw D
on the manifold L (Tightening torque of 10 Nm).
Fig 11.4
NOTE:
Check the integrity of the gaskets
J.
4.
Insert the dipstick B inside the hose E.
Fig 11.5
11.2 Heater (replacement)
Important
•
Before proceeding with operation, read Par. 3.3.2.
11.2.1 Disassembly
1.
Undo the screws A and the relevant washers and
remove the earth cable B.
2.
Remove the flange C and the manifold D.
3.
Remove the heater E and the relevant gaskets F.
Fig 11.6
