11.12.2 Manifold air filter disassembly
1.
Release the clamp D.
2.
Remove the manifold E.
3.
Loosen capscrews G and remove plate H.

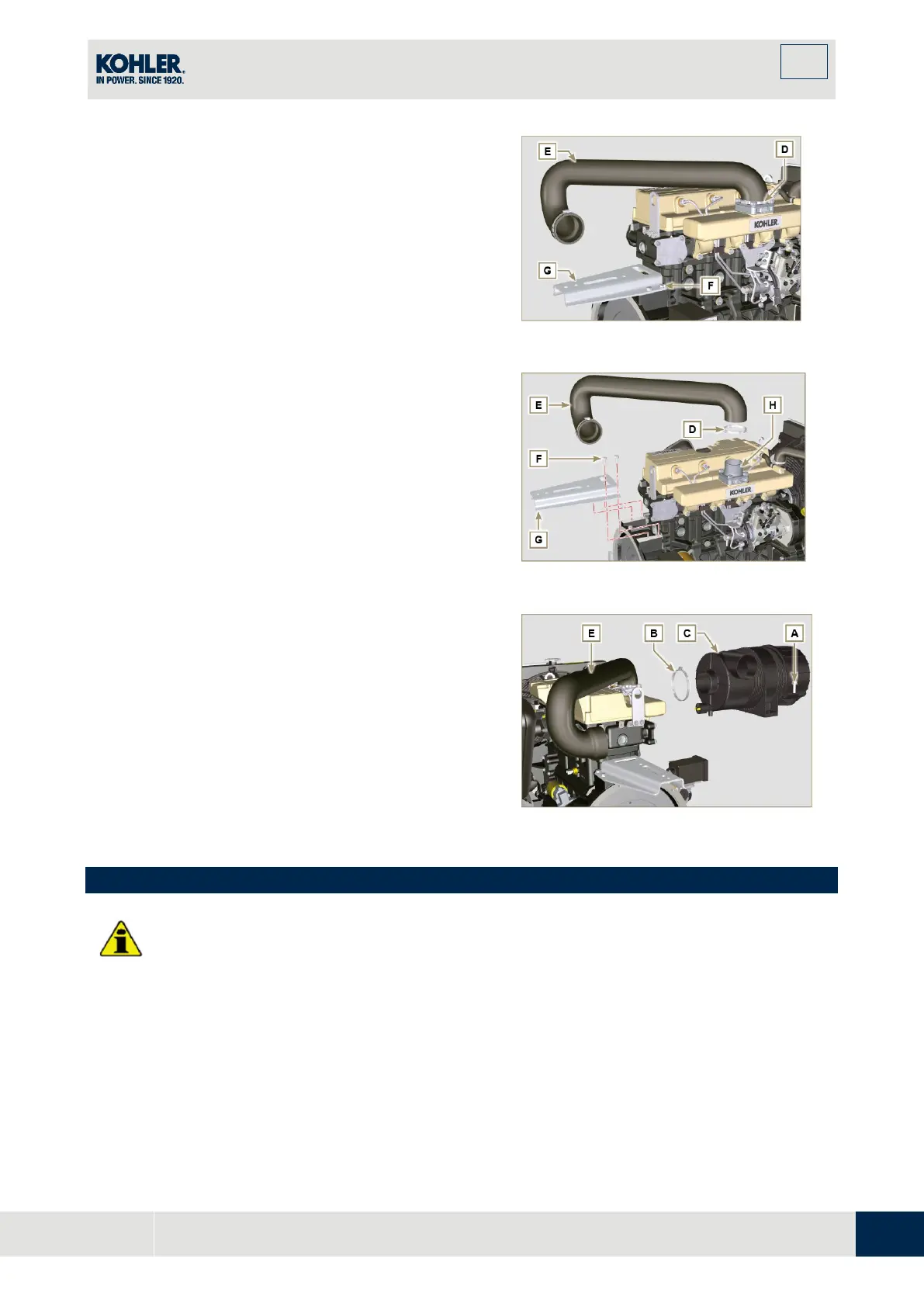

Fig. 11.54
11.12.3 Air filter manifold assembly
1.
Insert the fitting G on the flange H.
2.
Tighten the clamps D.
3.
Fasten plate G by means of capscrews F
(tightening torque at 25 Nm).
Fig. 11.55
11.12.4 Air filter assembly
1.
Insert the filter C into the manifold E.
2.
Tighten the clamps B.
3.
Tighten the screws A (tightening torque at
25
Nm)
Fig. 11.56
11.13 Muffler (replacement)
Important
•
Before proceeding with operation, read Par. 3.3.2.
