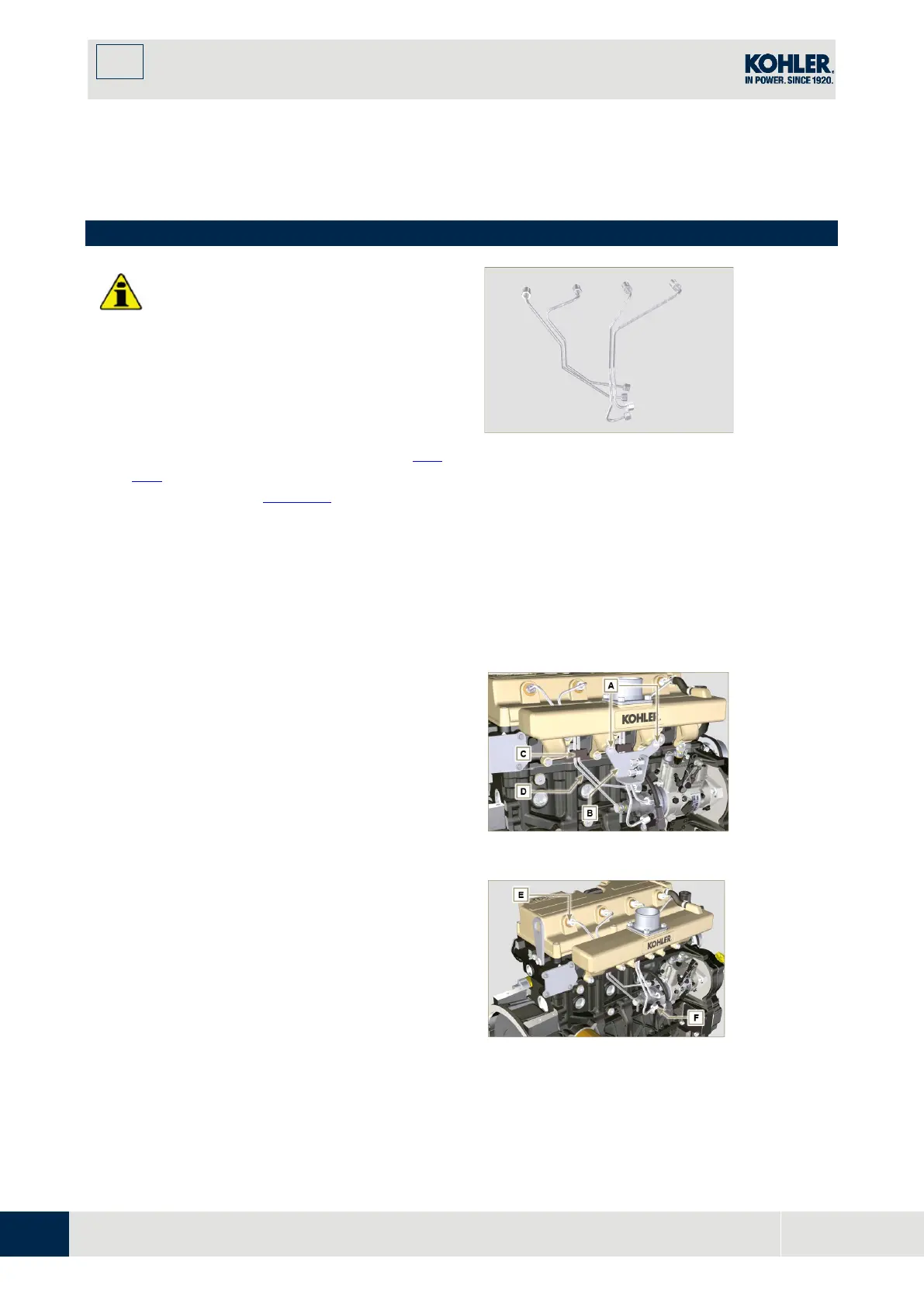

6
INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
EN 60
6 INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6.1 Injectors and injection pump replacement
Important
Before proceeding with operation, read Par.
3.3.2.
Replace the high pressure pipes after two
disassemblies.
Always replace the gaskets after each
disassembly.
Handle the components as described in
Par.
2.17.
Please referring to Par. 2.9.7 in order to see
the operating references during disassemble
an
d assemble procedures.
When repaired, RSN-
A injectors must be
certified by a Stanadyne centre to check their
correct operation - check the type of engin
e
m
ounted injectors on the spare parts list (RSN-
A is specified in the description).
Fig 6.1
6.1.1injection fuel pump disassembly (injection
pump/injectors)
1.
Undo the screws A and remove plate B.
2.
Remove the retainers C for the hoses D.
Fig 6.2
3.
Undo the nuts F.
4.
Undo the nuts E.
5.
Remove the tube D.
Fig 6.3
