INFORMATION FOR DISASSEMBLY
EN 88

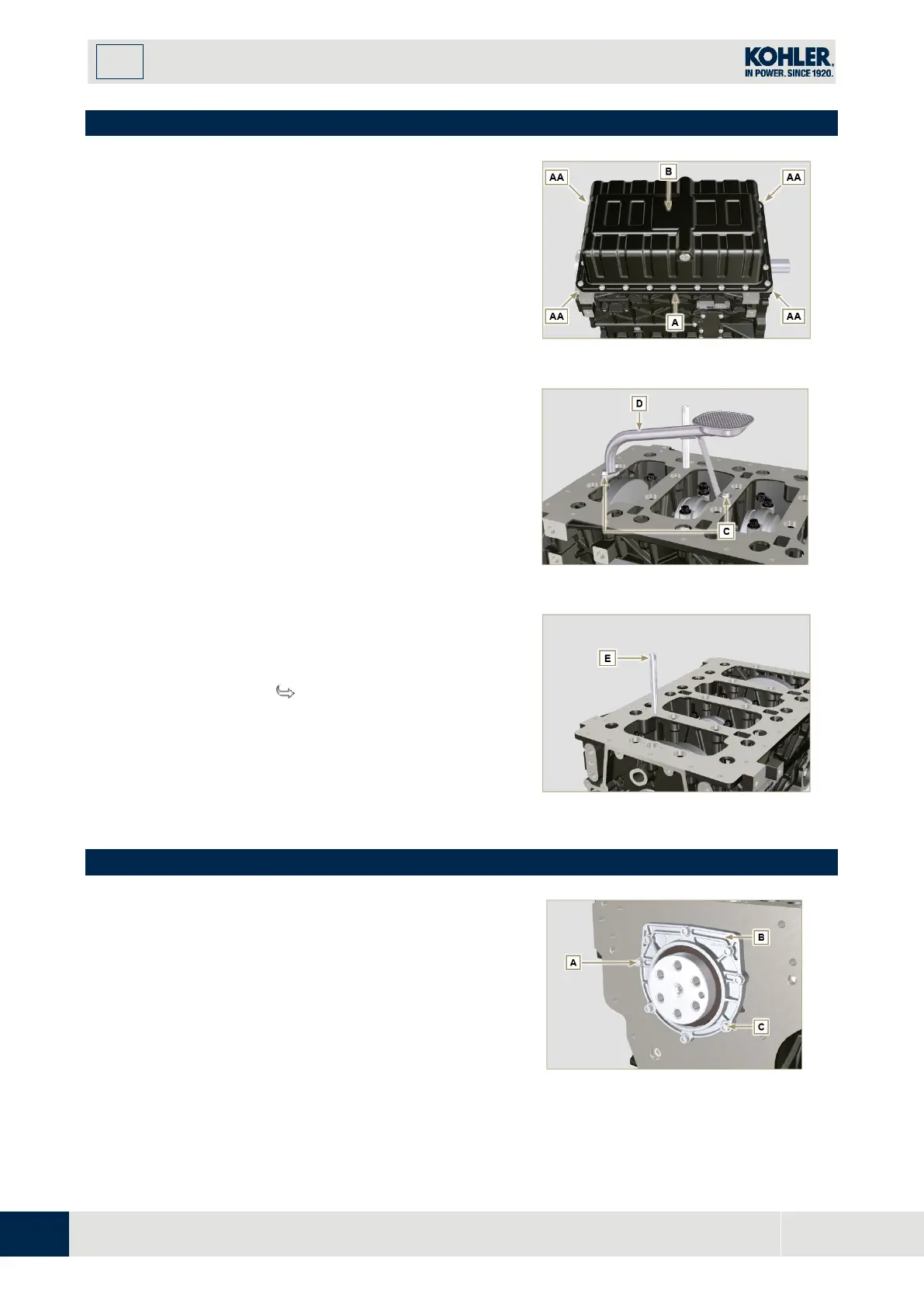

7.12 Oil sump unit disassembly
7.12.1 Oil sump
1.
Undo the screws A.
2.
Remove the oil sump B by inserting a plate in the
areas indicated by the arrow AA.
Fig 7.42
7.12.2 Oil intake pipe
1.
U
ndo the screws C and remove the oil pipe D.
Fig 7.43
7.12.3 Oil vapour pipes ( )
1.
U
nscrew and removethe pipes E.
Fig 7.44
7.13 Engine block disassembly
7.13.1 Crankshaft gasket flange
1.
Undo the screws A.
2.
Remove the flange B and the gasket C.
Fig 7.45
