Kohler KDI 1903M Workshop Manual

INFORMATION FOR DISASSEMBLY
7
87
EN
Important
•

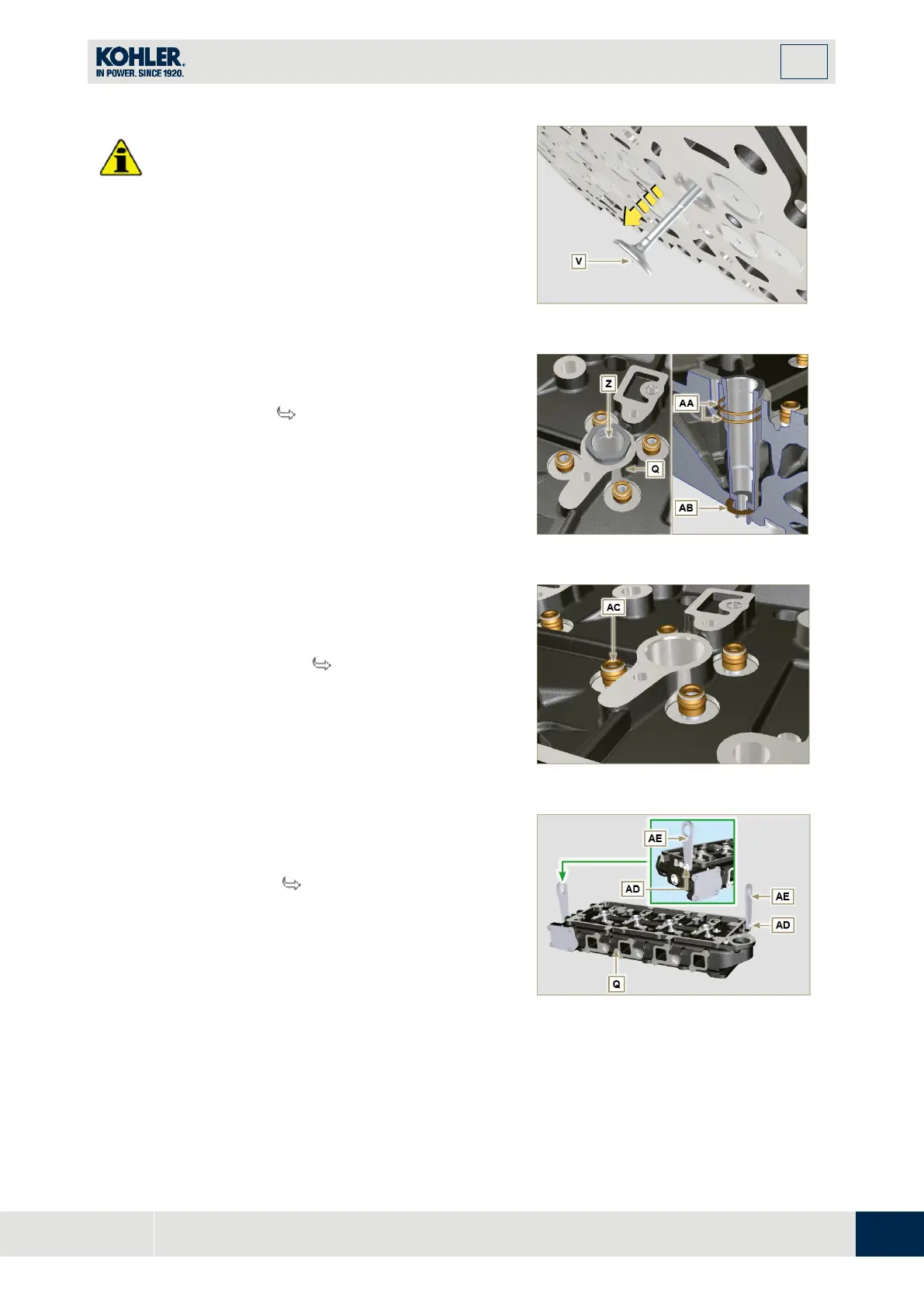

Before removing the valves, make some marks in
their original position, in order to prevent confusin
g
them when they are re-assembled, if they are not
replaced.
4.
Remove the valves V.
Fig 7.38
7.11.3.2 Injector sleeve ( )
1.
Unscrew and remove the sleeves Z from the head
Q.
2.
Remove the gaskets AA and AB.
Fig 7.39
7.11.3.3 Valve steam gasket ( )
1.
Remove the oil seals AC.
Fig 7.40
7.11.3.4 Lifting eyebolts ( )
1.
Undo the screws AD and remove the eyebolts AE.
2.
Make the thorough washing the cylinder head Q.
Fig 7.41
