Kohler KDI 1903M - Exhaust Manifold Disassembly; Coolant Recirculation Components Disassembly

7
INFORMATION FOR DISASSEMBLY
EN 78

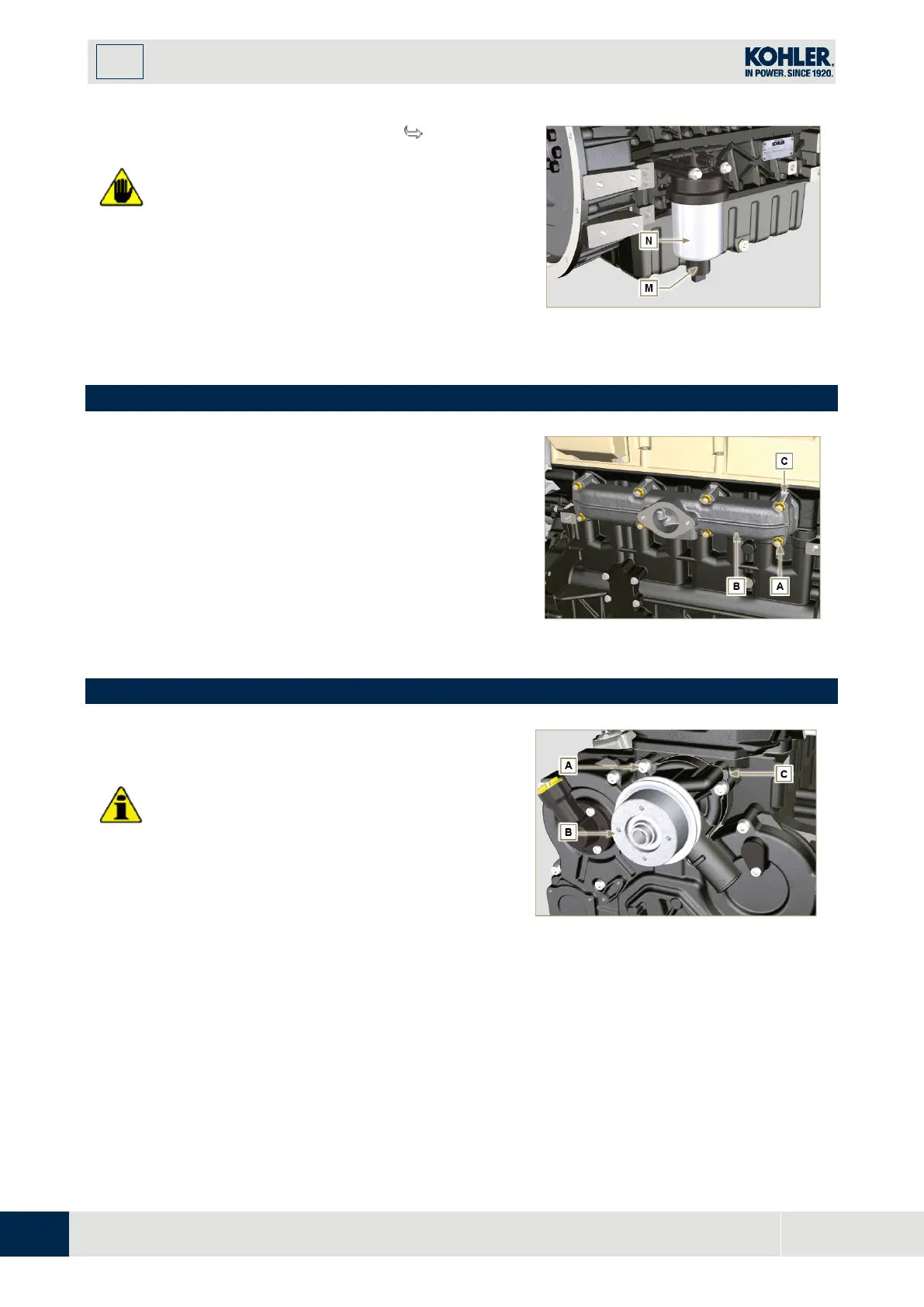

7.2.4.3 Fuel filter water detection sensor ( )
Warning
•
The fuel filter is not always installed in the engine.
•
When disassembling the sensor M, use a suitable
co
ntainer to recover the fuel contained in th
e
cartridge N.
1.
Unscrew the sensor M from the cartridge N.
Fig 7.5
7.3 Exhaust manifold disassembly
1.
Undo the nuts A and remove the manifold B an
d
t
he metallic gaskets C.
2.
Close the openings and manifolds to prevent
f
oreign bodies from entering.
Fig 7.6
7.4 Coolant recirculation components disassembly
7.4.1 Coolant recirculation components disassembly
Important
•
The pump B is not reparaible
1.
Undo the screws A and remove the water pump
unit B with its gasket C.
Fig 7.7
