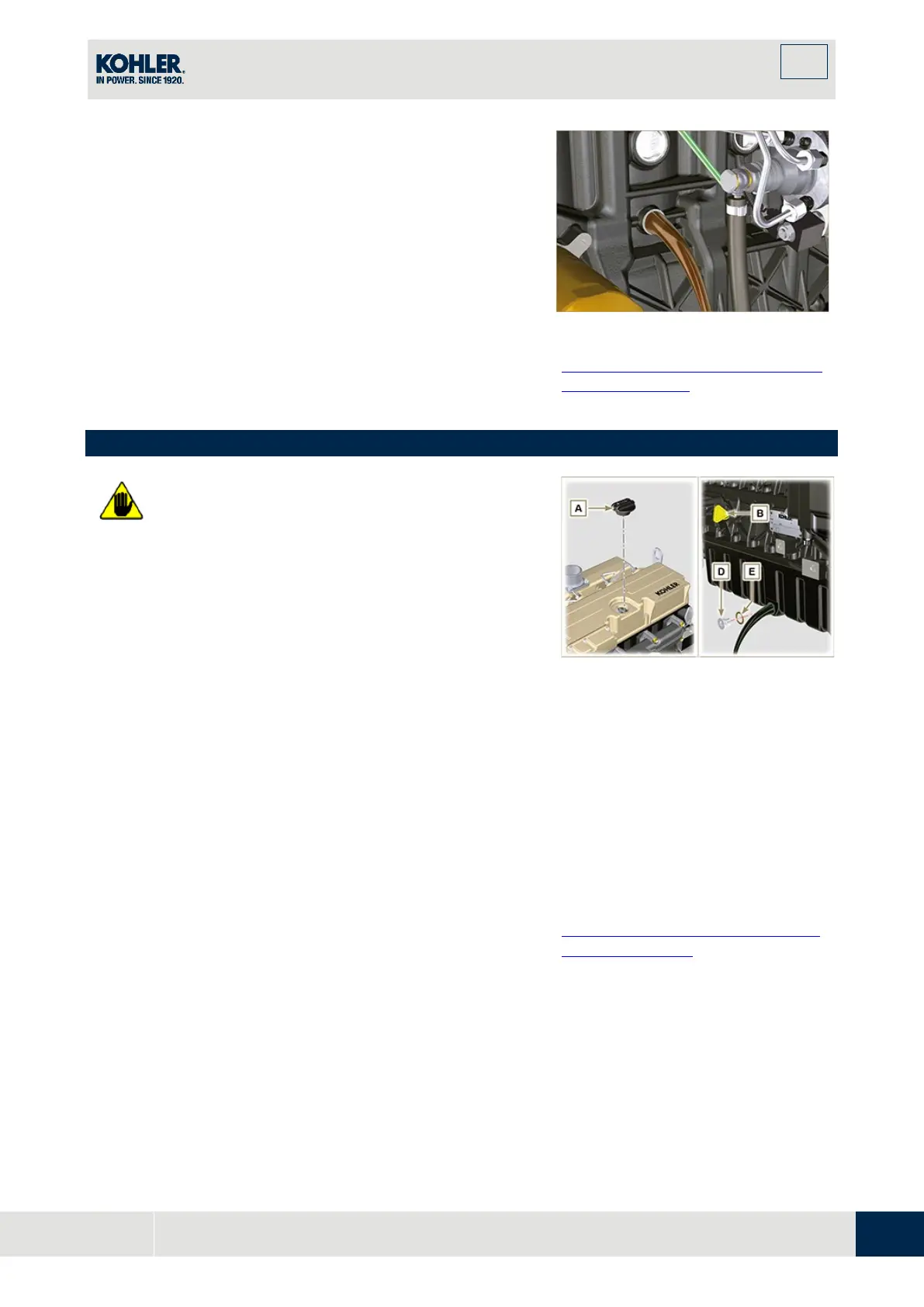

5.2 Engine oil
• This operation should be carried out with vacuum pump.
The oil must be drained whilst the engine is hot, which
requires particular care to prevent burns. Do not allow oil
to come into contact with the skin because of the heal
th
h
azards involved. It is recommended to use an oil intak
e
p
ump via the oil dipstick hole B.
• Before proceeding with operation, read Par. 3.3.2.
NOTE: Perform this operation with warm engine, to get a
better fluidity of the oil and get a full discharge of oil and
impurities contained in it.
1.
Undo the oil filler cap A.
2.
Remove the oil dipstick B.
3.
Remove the oil drain plug D and the gasket E (the oil
drain plug is on both sides of the oil sump).
4.
Drain oil in an appropriate container.
(For used oil disposal refer to the Par 3.6).
5.
Perform the operations described in Par. 6.6.
Fig. 5.4
NOTE
: Click by side to play the procedure.
https://www.youtube.com/embed/Kg
Z2JBPCGPk?rel=0
