Kohler KDI 1903M Workshop Manual

INFORMATION ABOUT OPTIONAL
COMPONENTS
11
151
EN

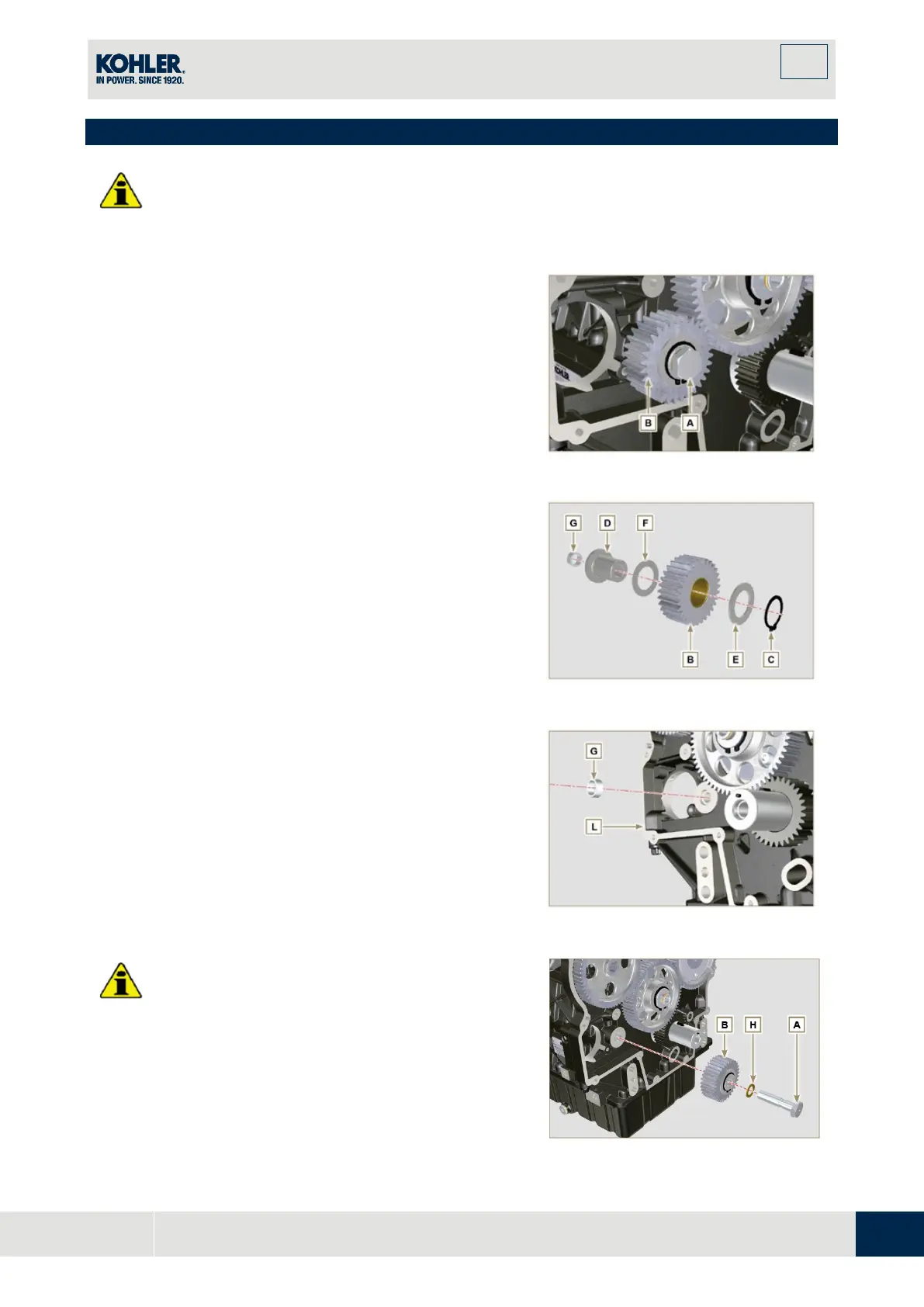

11.5 Idler gear (for 3rd / 4th PTO)
Important
•
Before proceeding with operation, read Par. 3.3.2.
11.5.1 Disassembly
1.
Undo the screw A and remove the gear unit B.
Fig 11.8
2. Remove the retainer ring
C
from the seat of the pin
D
.
3. Remove the shoulder washer
E
, the gear
B
, the shoulder
ring
F
and the bushing
G
from the pin
D
.
Fig 11.9
11.5.2 Assembly
1.
Fit into the pin D:
- The shoulder ring F (of least thickness)
- The gear B
- The shoulder ring E
- The retainer ring C.
2.
Insert the bushing G on the crankcase L.
Fig 11.10
Important
•
Always replace the washer H every time it is
disassembled.
Modified component, see service letter 700019 -
700021.
•
Check that the perforated screw A is free from
impurities inside it.
Fig 11.11
