6
INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
EN 70
3.

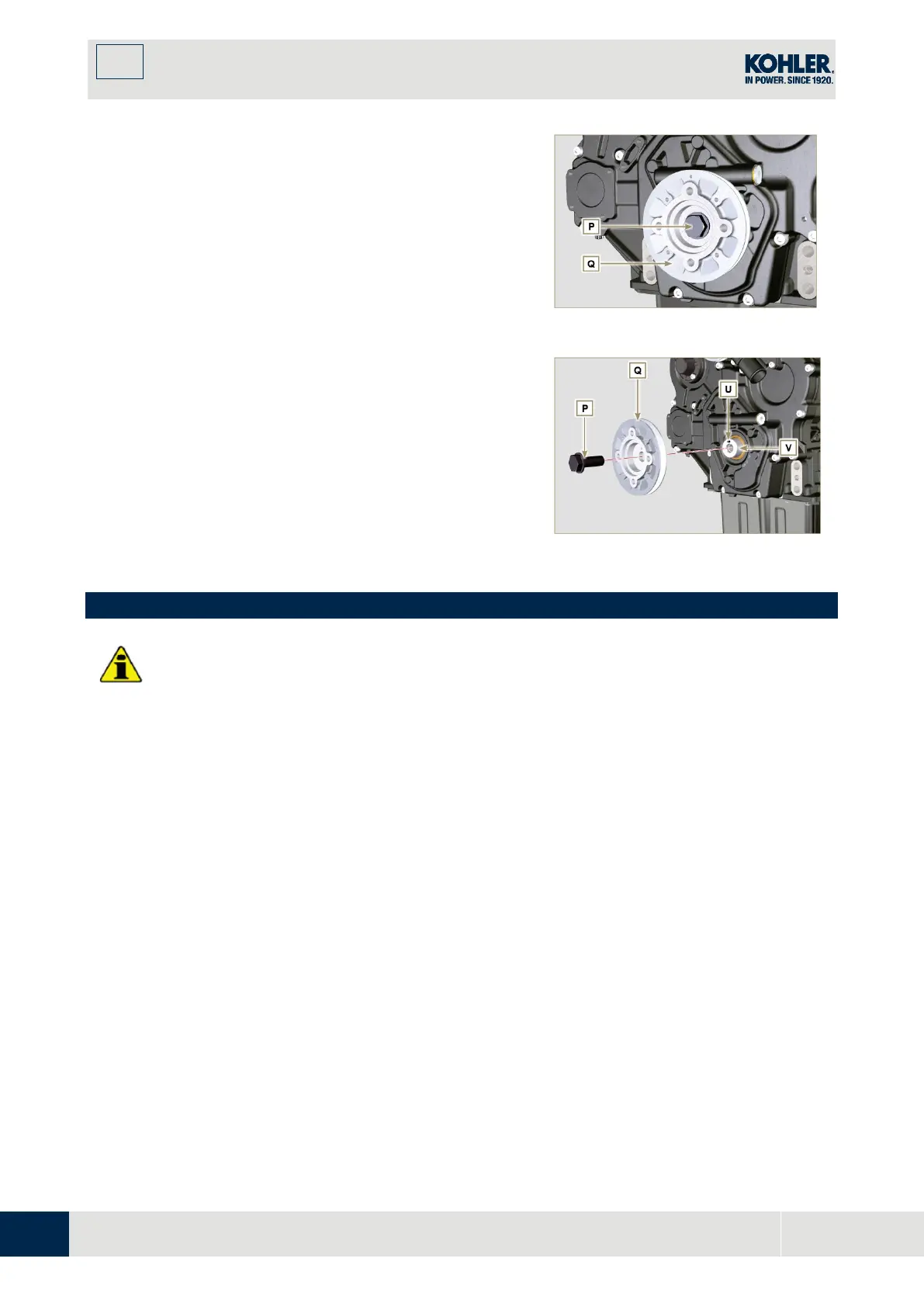

Undo the screw P (clockwise) and remove the pulley
Q.
Fig 6.36
6.3.2 Assembly
1.
Check that the pin U is mounted properly on the
crankshaft V.
2.
Insert the pulley Q on crankshaft V respecting th
e
reference of the pin U.
3.
Apply Molyslip grease on the screw thread P.
4.
Fit the pulley Q with the screw P (tightening torque
360 Nm) and remove the tool ST_34.
Fig 6.37
6.4 Oil pump replacement
Important
Before proceeding with operations, read Par.
3.3.2.
The oil pump is not repairable.
6.4.1 Coolant pump disassembly
1.
Perform the operations described in Par 6.2.1.
6.4.2 Engine pulley disassembly
1.
Perform the operations described in Par 6.3.1.
