Kohler KDI 1903M - Intake Manifold Disassembly; Fuel System Disassembly

INFORMATION FOR DISASSEMBLY
7
81
EN

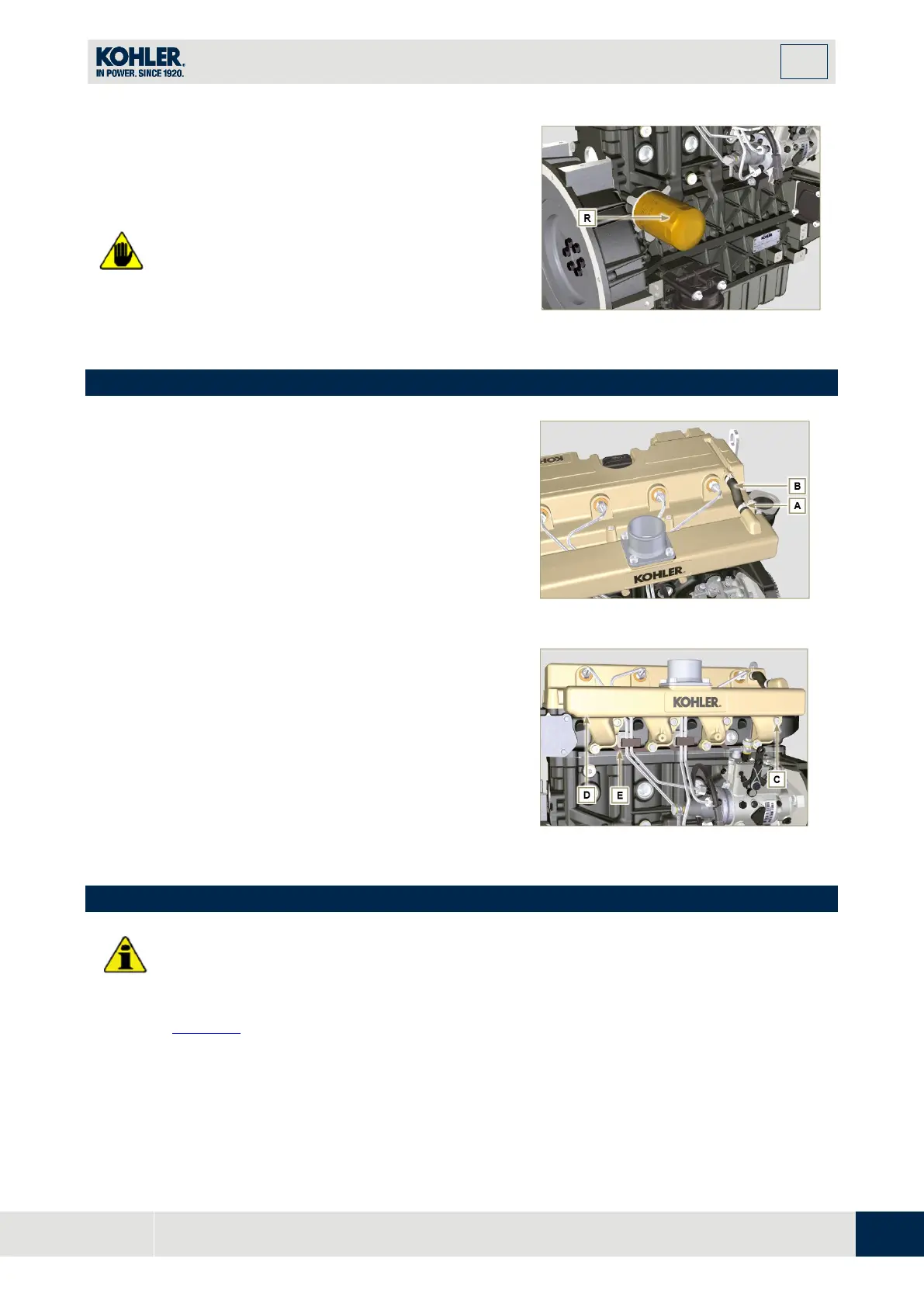

7.6.5 Oil filter
1.
Unscrew and remove the cartridge R.
W
arning
•
Use a suitable container to recover any residue oil.
Fig 7.15
7.7 Intake manifold disassembly
1.
Loosen clamp A and disconnect hose B.
Fig 7.16
2.
Undo the screws C and remove the manifold D
together with the washer E.
Fig 7.17
7.8 Fuel system disassembly
Important
•
Seal all injection component unions as illustrated
in Par. 2.9.7
.
•
The fuel injection circuit undergoes hig
h
p
ressure, use safety protections as described in
Par 3.4.3.
