INFORMATION FOR DISASSEMBLY
EN 82

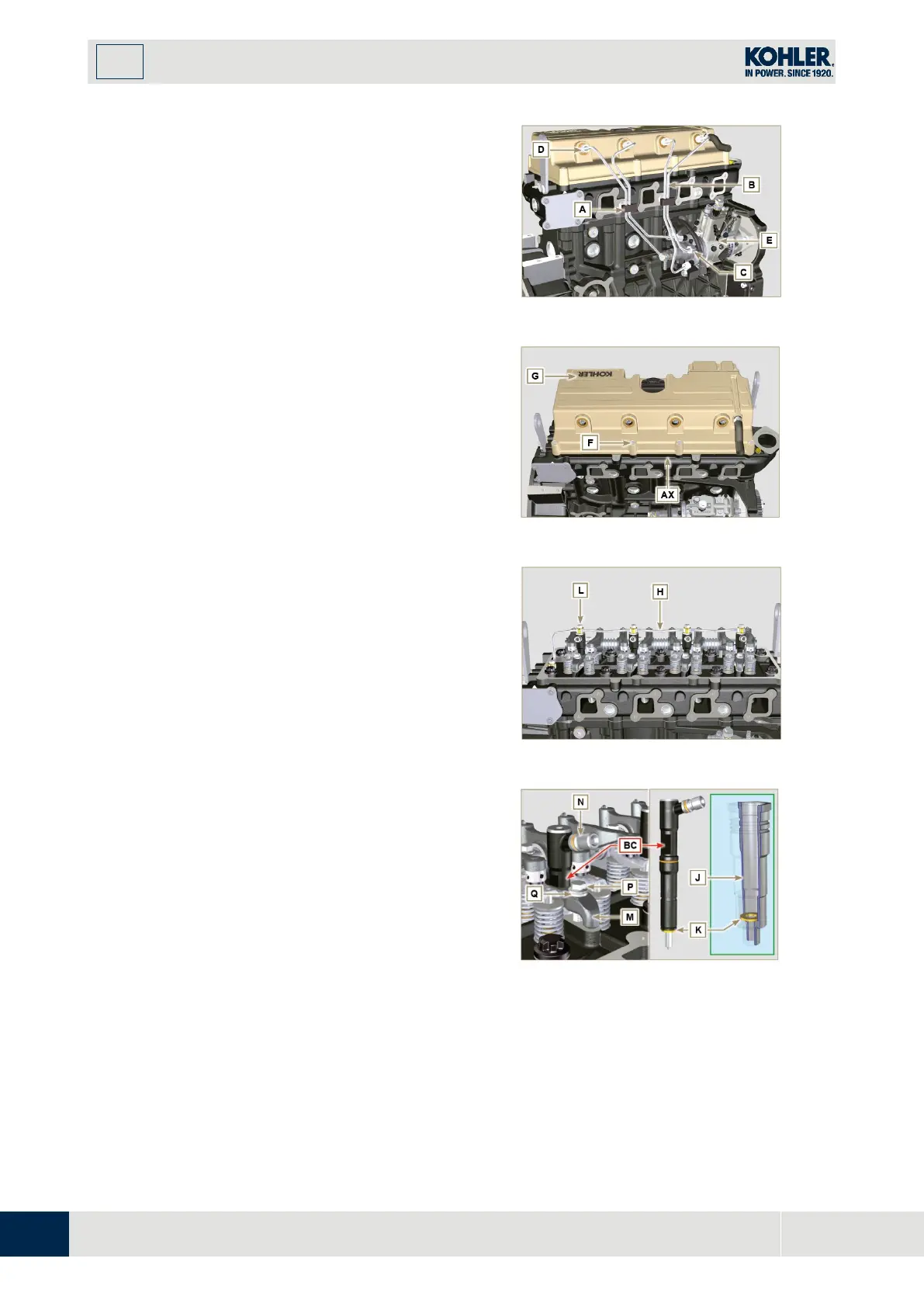

7.8.1 Fuel injection pipes
1.
Remove loking clips A from pipes B.
2.
Loose nuts C and D and remove pipes B.
Fig 7.18
7.8.2 Rocker arm cover
1.
Undo the screws F and remove the rocker arm
cap G.
Fig 7.19
7.8.3 Fuel return pipes
1.
Undo the screws L and remove hose H.
Fig 7.20
7.8.4 Injector
1.
Undo the screws P and remove the washers Q
and the brackets M.
2.
Pull out the injectors N.
NOTE
: Should you be unable to remove the injector
(acting only on point
BC
), use an open-ended spanner (
∅
11 mm
), by applying small rotations to unblock the
component. If the washer
K
is not found on the injector
N
, recover it from inside the injector sleeve
J
.
Fig 7.21
