5.

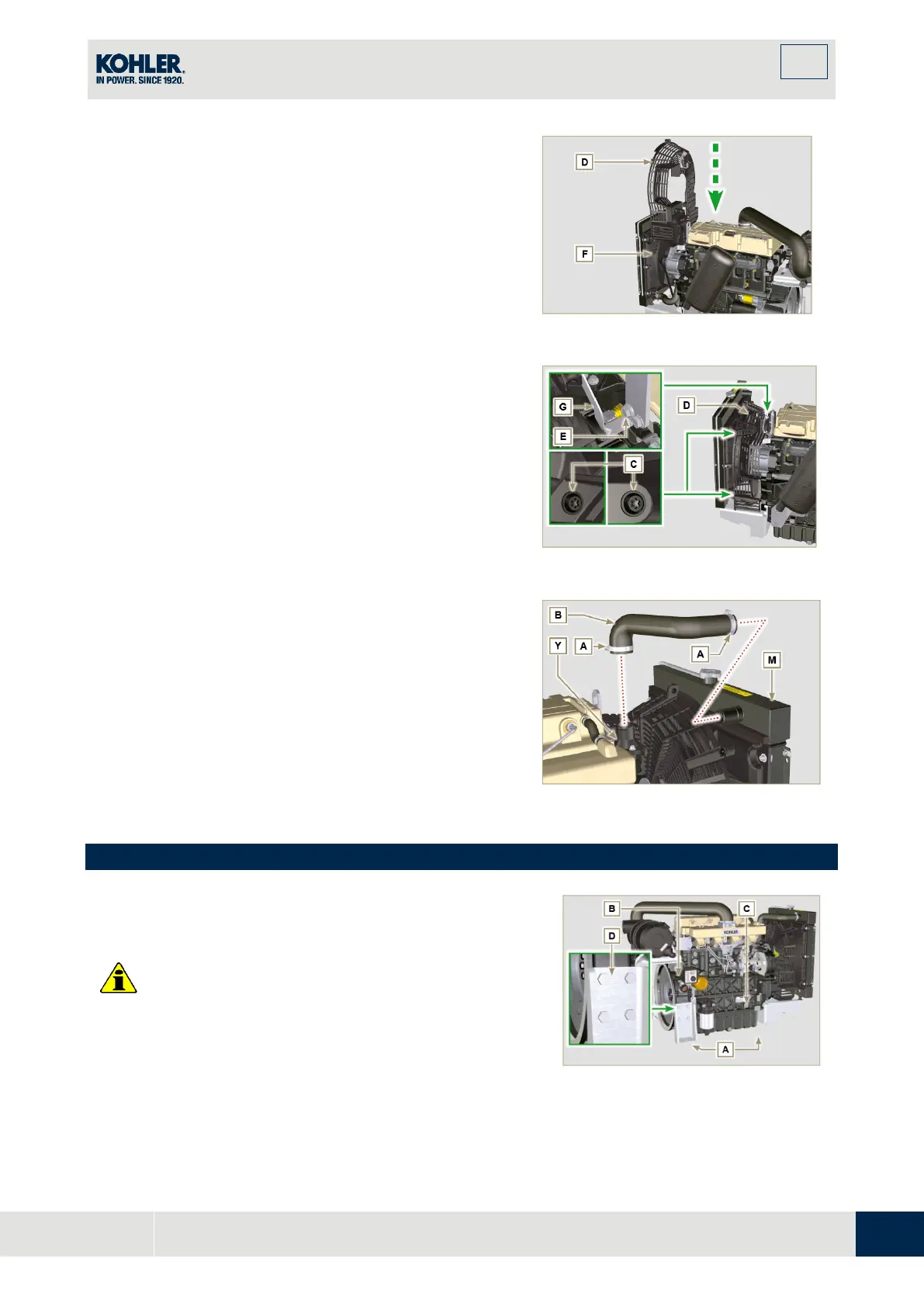

Position bulkhead D onto shroud F.
Fig. 11.68
6.
Fasten brace G by means of capscrews E
(tightening torque at 25 Nm).
7.
Fasten guard D by means of capscrews C
(tightening torque 10 Nm).
Fig. 11.69
8.
Fit the sleeve B on the fitting of the radiator M an
d
o
f the thermostat cover Y.
9.
Tighten the clamps A.
Fig. 11.70
11.15 Engine feet (information)
NOTE
: Component not necessarily supplied by
KOHLER
. The
representation of the engine is purely indicative.
Important
•
The motor supports A can be installed on the bell B or
on the crankcase C by using the screws D (tightening
torque at 50 Nm).
Fig. 11.71
