11.17 Oil sump 15L
11.17.1 Disassembly
1.
Perform the operations indicated in Par. 5.2 .
2.
Loosen the screws A and remove the oil sump B .
3.
Loosen the screws A1 and remove the oil sump B1
flange.

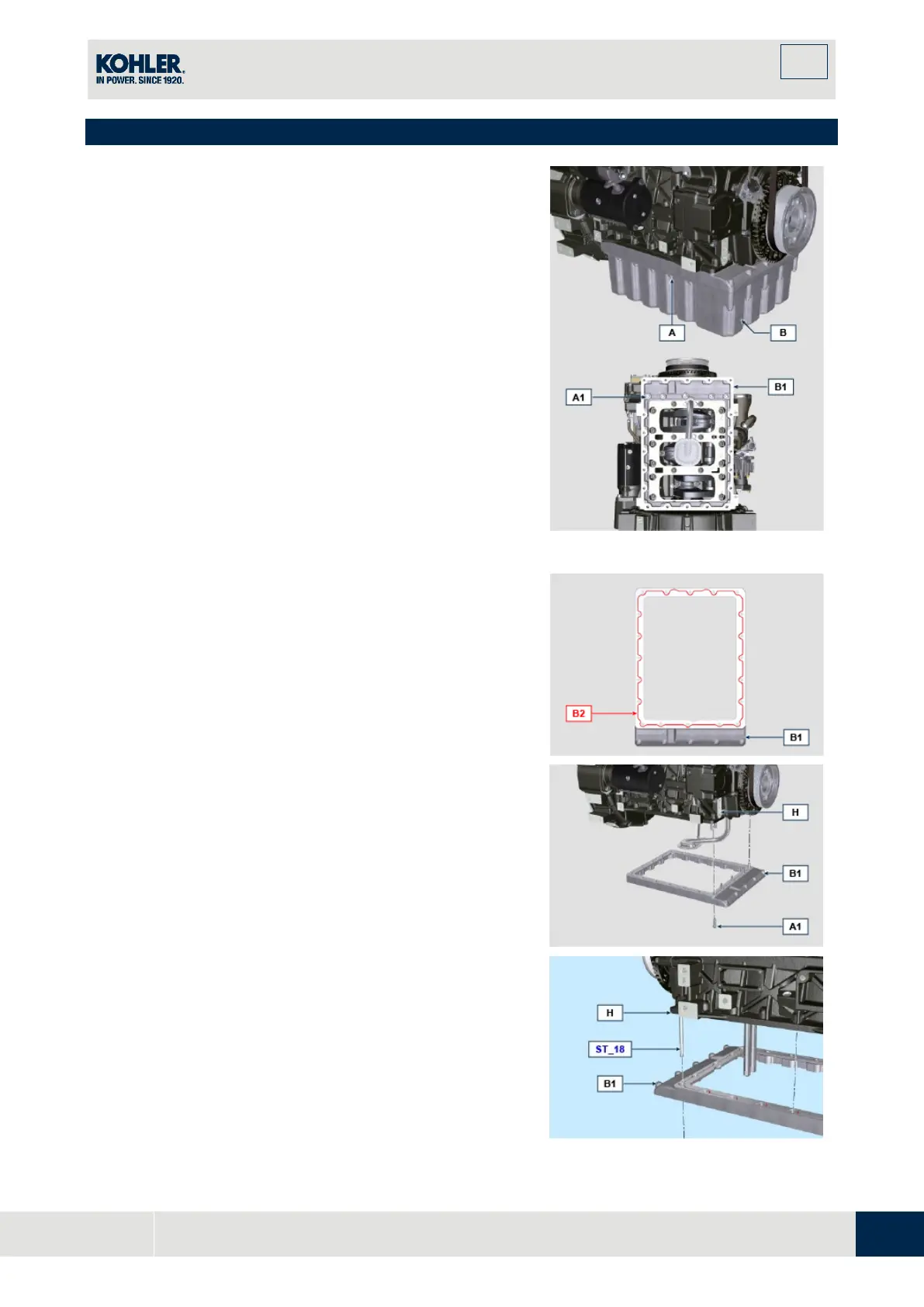

Fig. 11.81
11.17.2 Assembly
1.
Apply a bead of approx. 2.5 mm of sealant ( Loctite
5660 ) inside the channel B2 of the oil sump B1
flange.
2.
Position the oil sump B1 on the crankcase H at the
fixing holes (use the tool ST_18 ).
3.
Screw the screws A1 in the fixing holes.
Fig. 11.82
