INFORMATION ABOUT OPTIONAL
COMPONENTS
EN 172
12.
Insert gaskets N into seats P of bypa
ss
tub
e D.
13.
Fasten bypass tube D onto oil sump F
using capscrews C (tightening torque at
10 Nm).

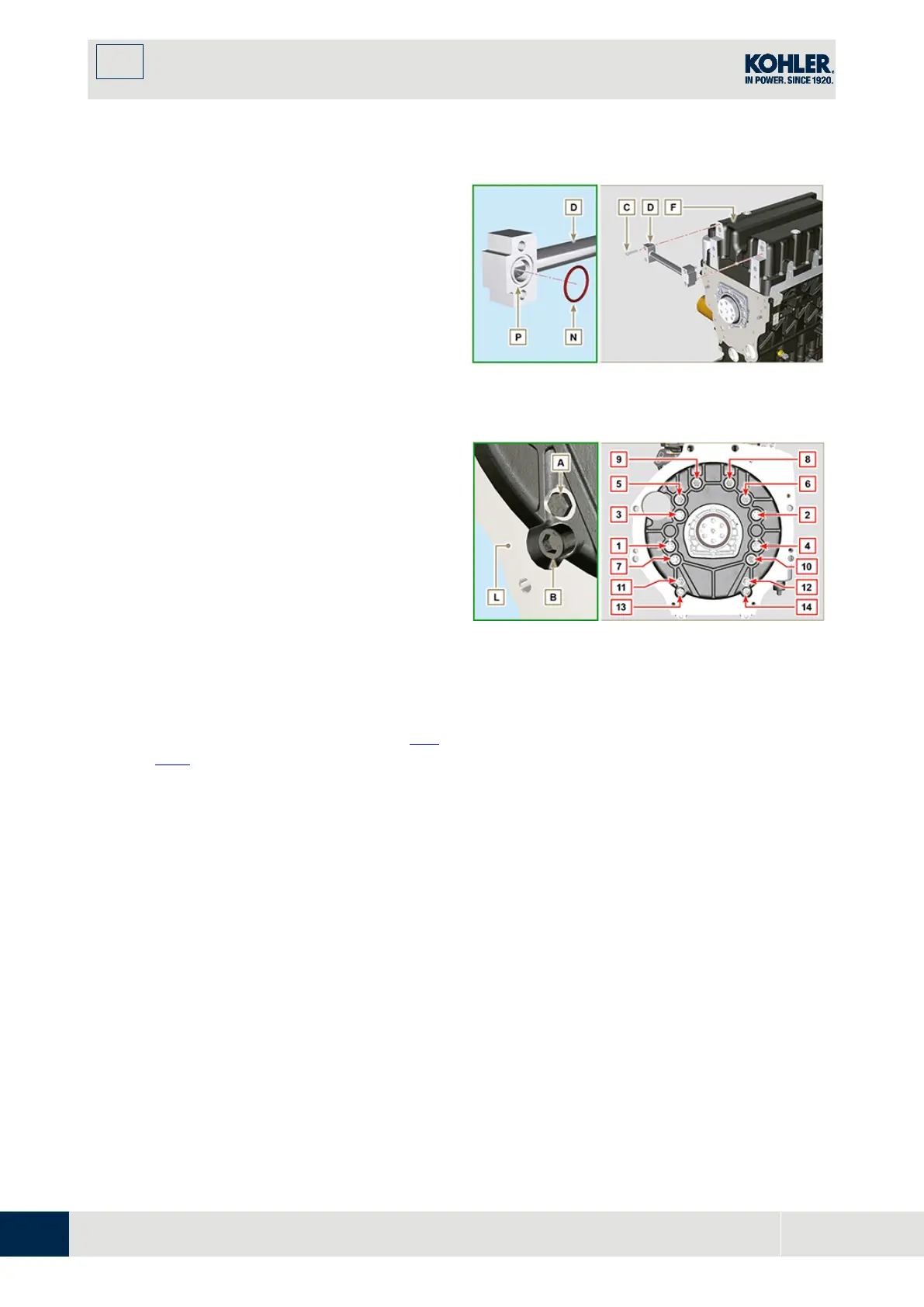

Fig. 11.79
11.16.5 Flange plate / housing assembly
1.
Execute the operations described in poi
nt
6 of
Par. 11.14.4.
2.
Fasten housing or plate L by using
capscrews A and strictly following the
order shown in Fig. 11.79 (tightening
torque at 85 Nm).
3.
Fasten housing or plate L by using
capscrews B (tightening torque at 2
70
Nm)
.
11.16.6 Flywheel assembly
1.
Execute the operations described in Par.
9.5.2.
Fig. 11.80
