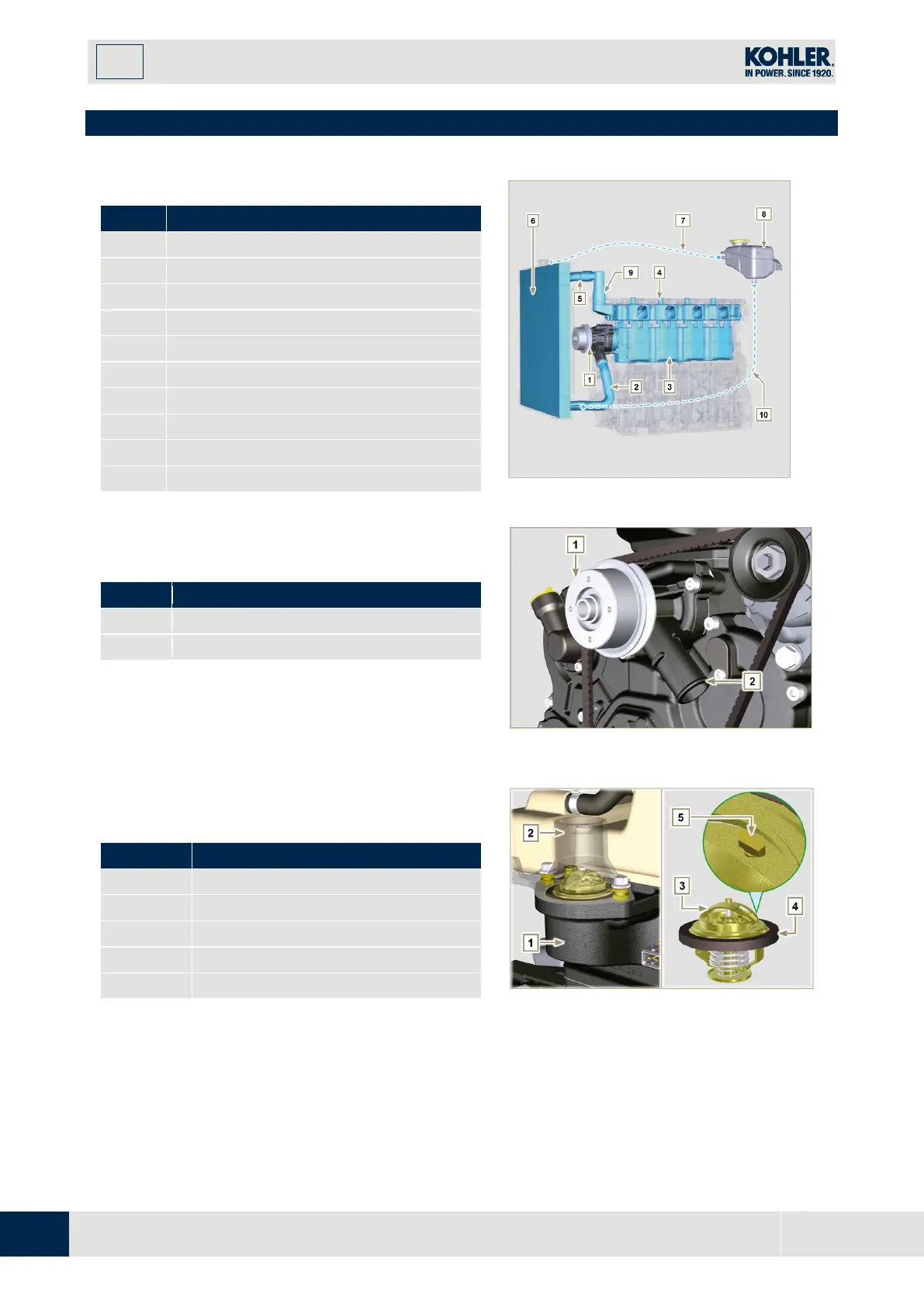

2.11 Coolant circuit
2.11.1 Coolant circuit diagram
Tab 2.24
POS.
DESCRIPTION
1
Coolant pump
2
Coolant intake
3
Coolant, cylinder
4
Coolant, cylinder head
5
Coolant to radiator
6
Coolant into radiator
7
Vent line from radiator (to 8)
8
Compensation tank
9
Thermostatic valve
10
Return from compensation tank
Fig 2.17
2.11.2 Coolant pump
Tab 2.25
POS.
DESCRIPTION
1
Coolant pump control pulley
2
Coolant intake fitting
Fig 2.18
2.11.3 Thermostatic valve
Tab 2.26
POS.
DESCRIPTION
1
Cylinder head
2
Coolant outlet cover
3
Thermostatic valve
4
Gaskets
5
Air bleeding hole
Opening temperature +79° ± 2°C.
Fig 2.19
