Kohler KDI 1903M Workshop Manual

INFORMATION ABOUT OPTIONAL
COMPONENTS
11
147
EN
11.2.2 Assembly
Important
•
Always replace gaskets F, with each assembly.
1.
In sequence, fit the manifold G with the gasket F, the
new heater E, the second gasket F, the flange C, the
washers H, the screws A and the cable B.
2.
Secure the flange H with the screws A (tightening
torque at 22 Nm).
3.
Secure the earth cable B with the nut J and th
e
r
elevant washer on the heater E.

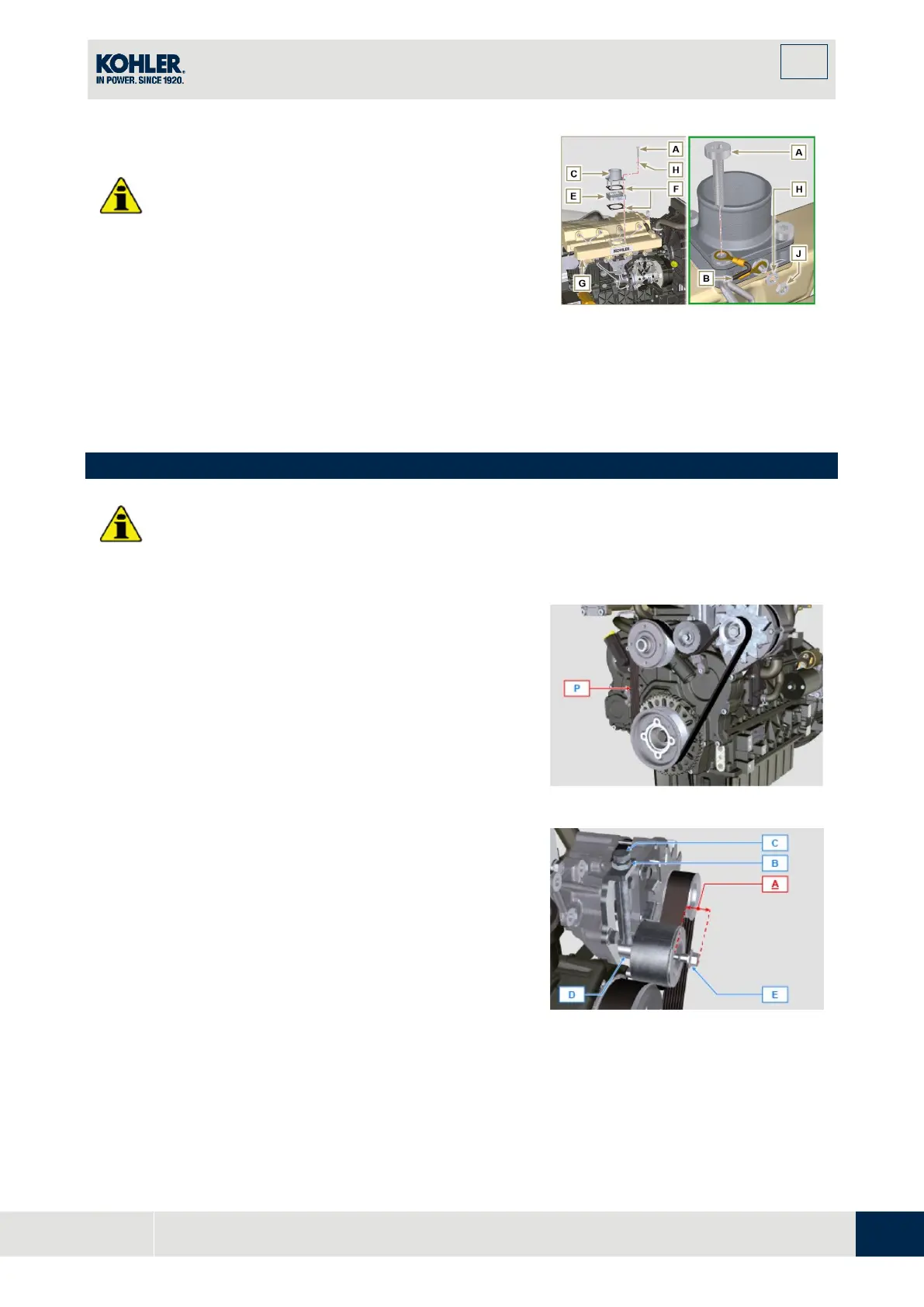

Fig 11.7
11.3 Poly-V alternator belt (replacement and adjustment)
Important
•
Before proceeding with operation, read Par. 3.3.2.
1.
Loosen the nut B and manually tighten the screw C
until it just touches the pulley pin D (Fig. 11.9).
Fig 11.8
2.
Untighten the screw E by around 32mm (A).
3.
Untighten the screw C.
NOTE: The belt tensioner pulley F should move towards the
arrow G. If it does not, please move it manually.
