11
INFORMATION ABOUT OPTIONAL
COMPONENTS
EN 162

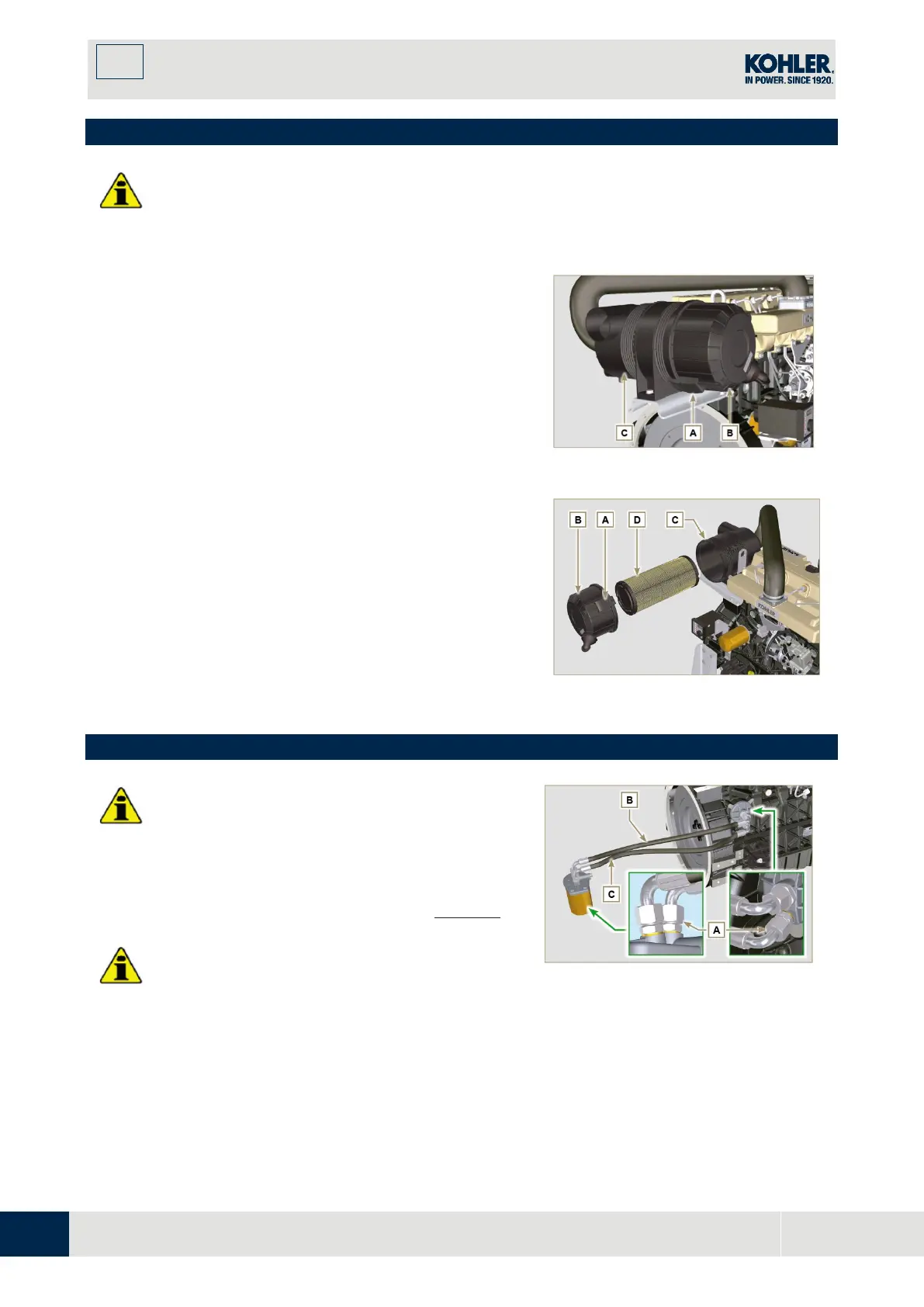

11.10 Air filter (cartridge replacement)
Important
•
Before proceeding with operation, read Par. 3.3.2.
1.
Release the two hooks A and remove the cover B
from the body C.
2.
Remove the cartridges D.
Fig 11.46
3.
Insert the new cartridge D and both of them inside
the filter body C.
4.
Secure the cover B via the hooks A.
Fig. 11.47
11.11 Remote oil filter (disassembly and assembly)
Important
• Modified component, see service letter 700018.
11.11.1 Disassembly
1. Perform the operations described in
Par. 5.2.
I
mportant
1.
Before proceeding with operation, read
Par. 3.3.2.
2.
For the replace the cartridge, please refer to
operation number 6 (Par. 11.9.1) and
2
(
Par. 11.9.2).
3.
For the disassembly of the pipes B and C,
lock with a tool the fittings K, H (Fig. 11.49)
and L (Fig. 11.50) in order to prevent their
Fig 11.48
