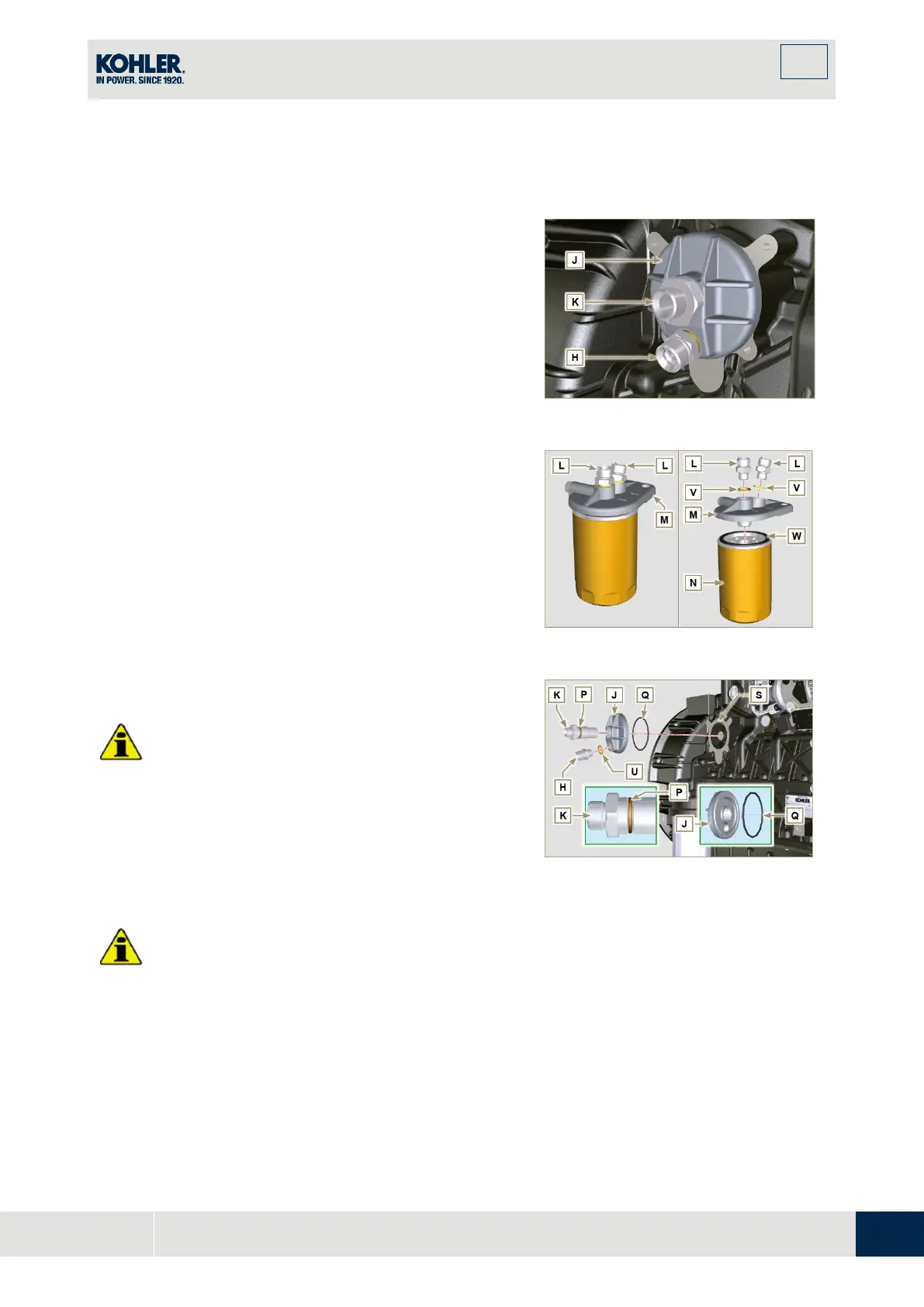

Kohler KDI 1903M Workshop Manual

INFORMATION ABOUT OPTIONAL
COMPONENTS
11
163
EN
lose together with the nuts A, with the
consequent of oil leakage.
2.
Undo the nuts A and remove the hoses B and C.
3.
Unscrew and remove the fitting H with its copper
gasket from the head J.
4.
Unscrew the fittings K and remove the copper
gaskets from the head J.
Fig 11.49
5.
Unscrew the fittings L and remove the coppe
r
g
askets from the support M.
6.
Unscrew the cartridge N with gasket from the
support M.
Fig 11.50
11.11.2 Assembly
Important
•
Always replace the gaskets V after each assembly.
1.
Clamp the fittings H on the support M inserting the
gasket V (tightening torque at 65 Nm).
2.
Lubricate the gasket W and clamp the cartridge N
on the support M (tightening torque at 20 Nm).
I
mportant
•
Always replace the gaskets P, Q, and U at each
assembly.
•
Lubricate the gaskets P, Q with oil befor
e
a
ssembling them.
3.
Insert the gasket P on the seat of the fitting K.
4.
Insert the head J on the fitting K and the gasket Q
in the seat of the head J.
Fig 11.51
