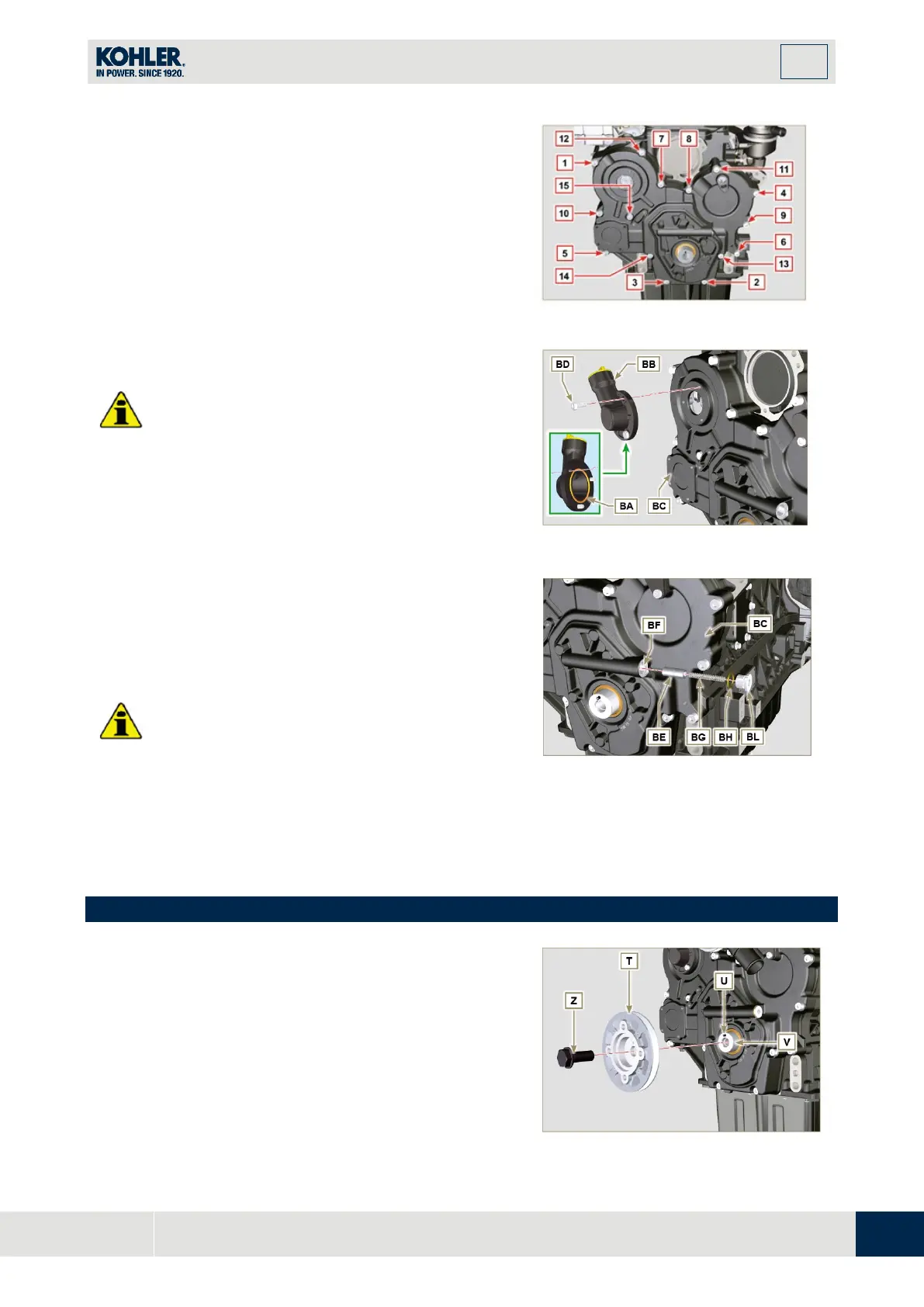

ASSEMBLY INFORMATION
9
133
EN
7.
Fasten the screws R (tightening torque of 25 Nm).
9. 11.4 Crankcase oil filler flange Timing System
Important
•
Always replace the gasket BA after each assembly.
1.
Position the gasket BA in the seat on the flange BB.
2.
Clamp the flange BB on the crankcase BC with the
screws BD (tightening torque of 10 Nm - ST_06).
Fig 9.78
9. 11.5 Oil pressure relief valve
1.
Lubricate the piston BE and fully insert it in the sea
t
BF.
2.
I
nsert the spring BG in the piston.
I
mportant
•
Always replace the gasket BH after each assembly.
3.
Mount the gasket BH on cap BL.
4.
Tighten the cap BL on the crankcase BC (tightening
torque of 50 Nm).
Fig 9.79
9.12 Crankshaft pulley assembly
1.
Check that the pin U is mounted properly on the
crankshaft V.
2.
Position the pulley T on the crankshaft V using the
pin mark U.
3.
Apply Molyslip grease on the screw thread Z.
4.
Clamp the pulley T with the screw Z (tightening
torque of 360 Nm) and remove special tool ST_34
(Fig. 9.29)
Fig 9.80
