Kohler KDI 1903M Workshop Manual

11
INFORMATION ABOUT OPTIONAL
COMPONENTS
EN 168

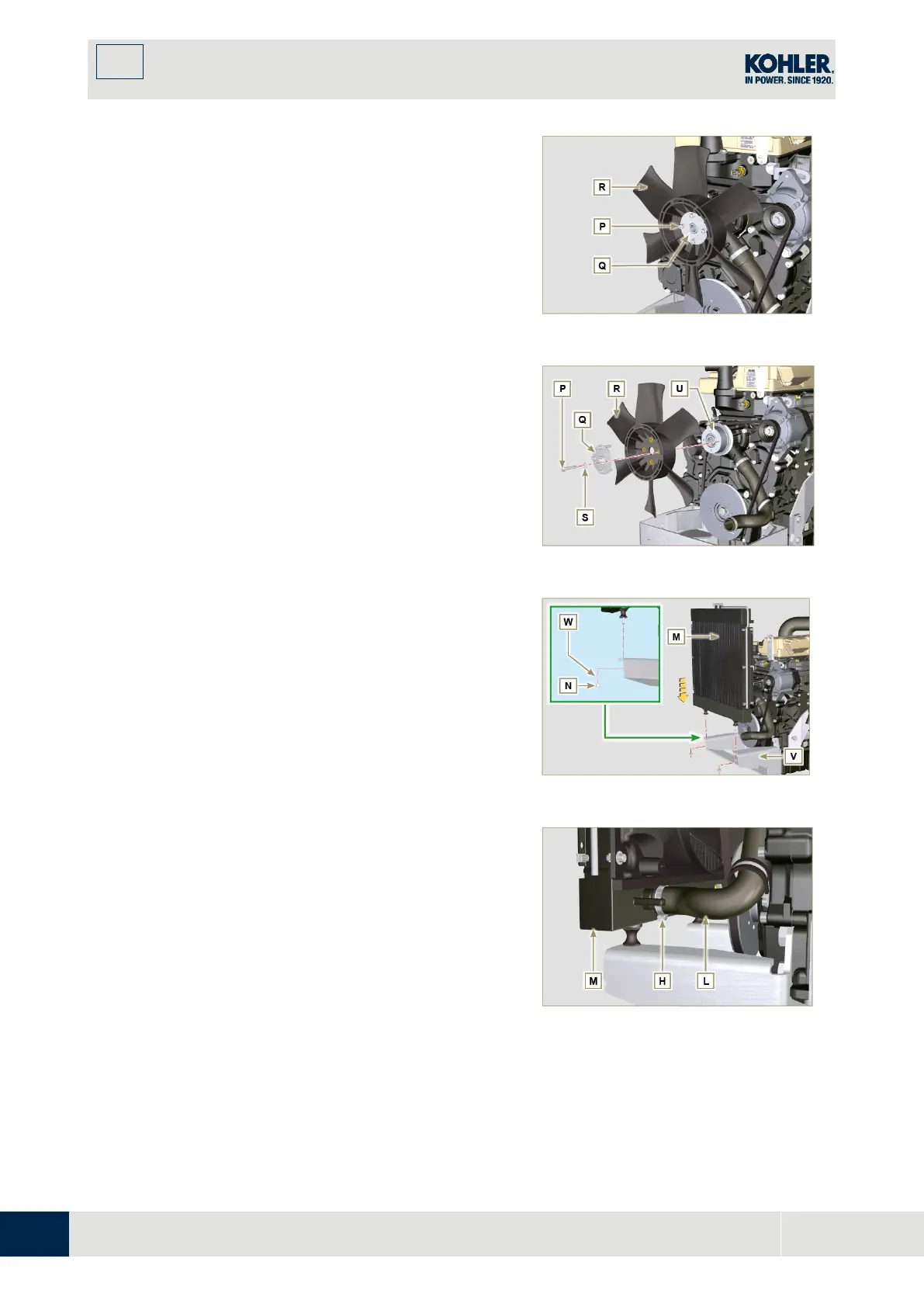

11.14.2 Fan disassembly
1.
Undo the screws P and remove the plate Q from
the fan R.
Fig. 11.64
11.14.3 Fan assembly
1.
Assemble the fan R on the pulley U.
2.
Position the plate Q on the fan R.
3.
Fasten the fan R by using the screws P an
d
i
nterposin washers S (tightening torque at 10 Nm).
Fig. 11.65
11.14.4 Radiator assembly
1.
Position the radiator on the support V.
2.
Fasten radiator M on support V by means of nut N
inserting washer W (tightening torque at 20 Nm).
Fig. 11.66
3.
Fit the sleeve L on the fitting of the radiator M.
4.
Tighten the clamp H.
Fig. 11.67
