INFORMATION FOR DISASSEMBLY
7
83
EN

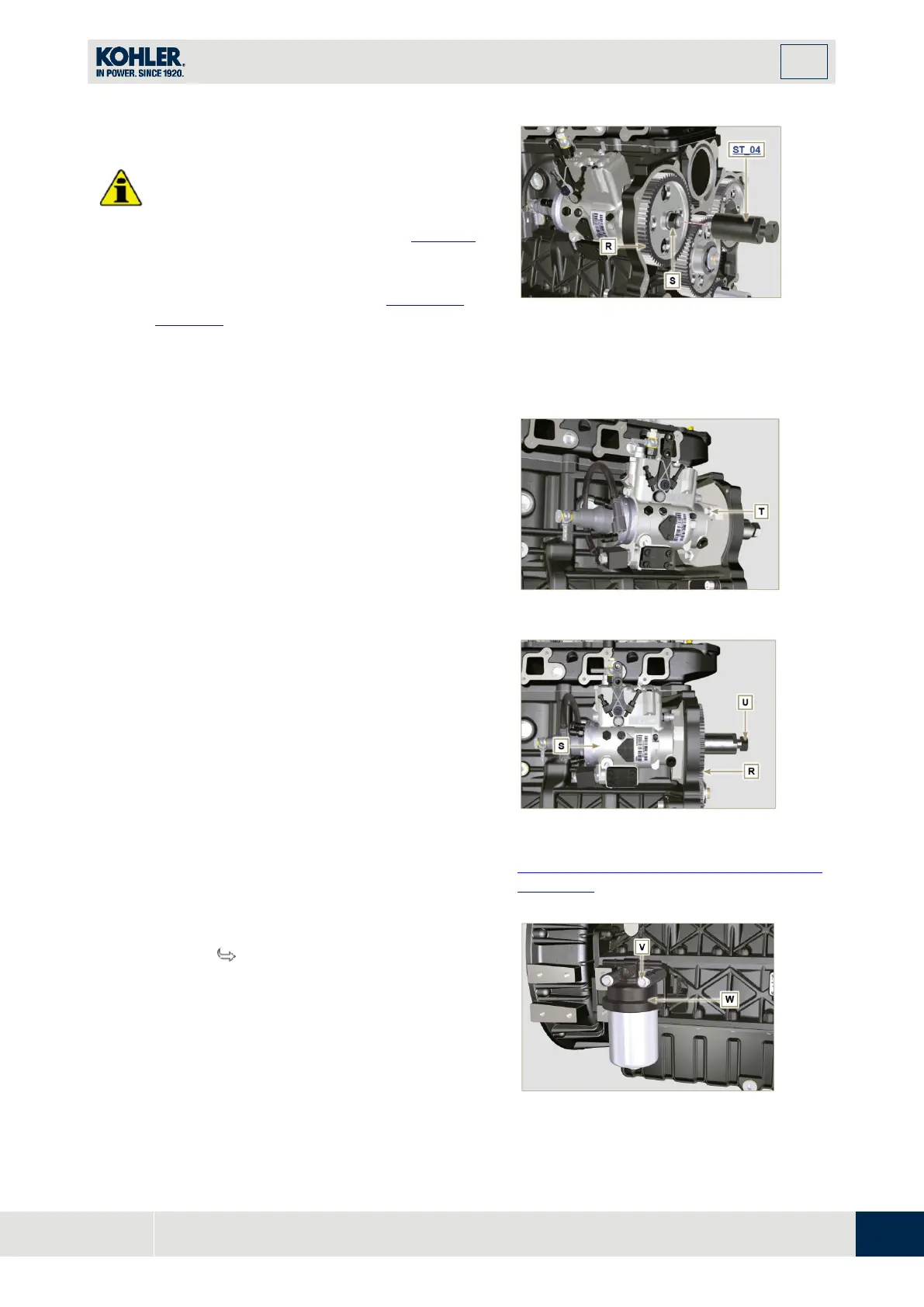

7.8.5 Injection pump
Important
•
Before disassembling, carefully read Par. 2.17.
•
The injector pump cannot be repaired.
1.
Carry on operations described in steps 1-13
Par. 6.1.5.
2.
Undo the nut S and remove it together with the
washer.
3.
Screw the unit ST_04 on the gear R.
Fig 7.22
4.
Undo the screws T.
5.
Tighten the screw U of the unit in order to
separate the injector pump S from the high
pressure pump control gear R.
F
ig 7.23
Fig 7.24
NOTE:
Click by side to play the procedure.
https://www.youtube.com/embed/tQ9VHKF
4u_0?rel=0
7.8.6 Fuel filter ( )
NOTE:
to disassemble the fuel cartridge, refer to
operations 3 and 4 of
Par. 6.7.1
.
1.
Undo the screws V and remove the filter suppor
t
W.
Fig 7.25
