Kohler KDI 1903M Workshop Manual

INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
6
61
EN

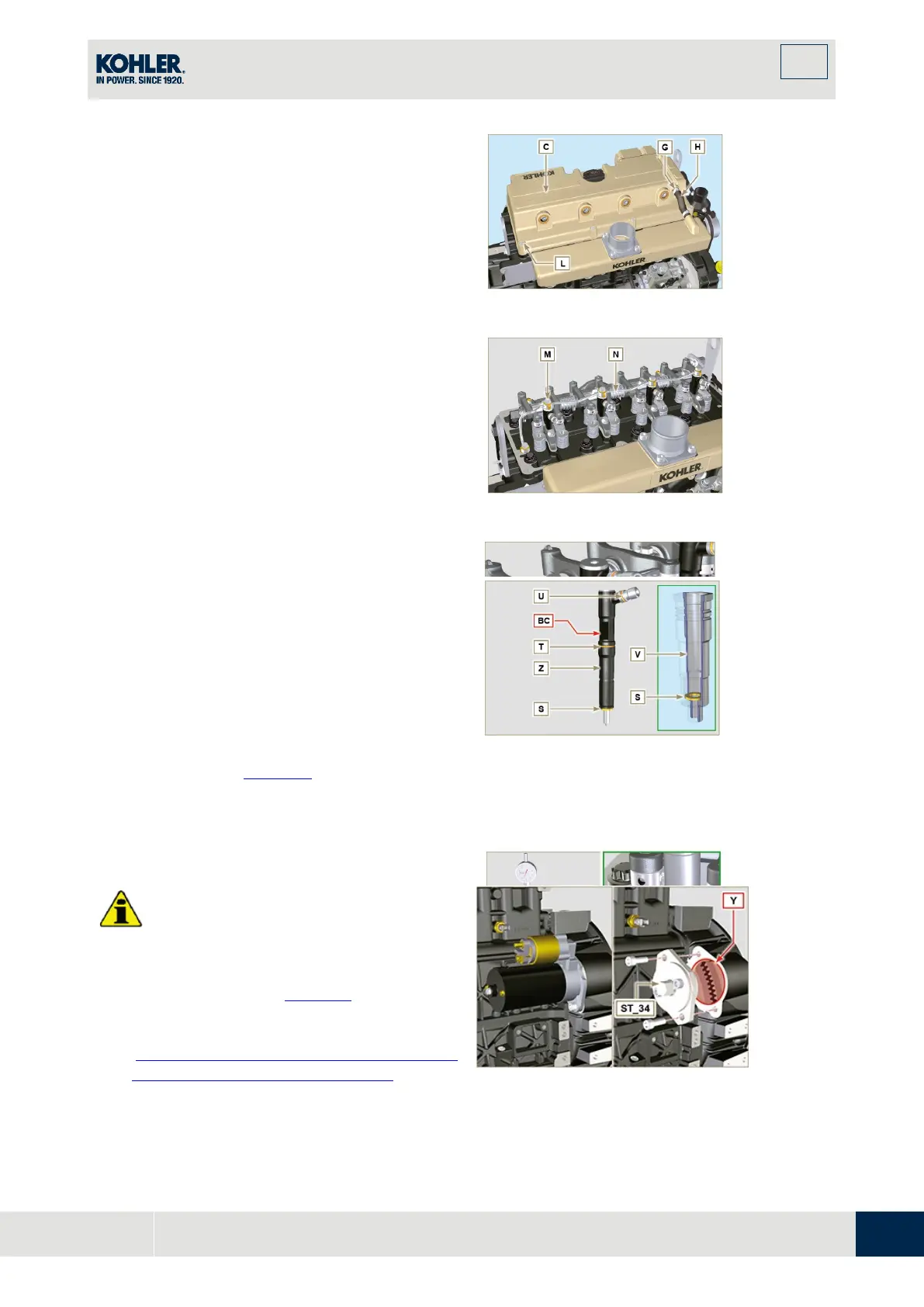

6.1.2 Rocker arms cover disassembly
1.
Loosen clamp G and disconnect hose H
2.
Undo the screws L and remove the rocker
arm cap C.
Fig 6.4
6.1.3 Fuel return pipes disassembly
1.
Undo the screws M and remove hose N.
Fig 6.5
6.1.4 Injectors disassembly
1.
Undo the screw P and remove washer Q
and bracket R.
2.
Remove the injector Z.
NOTE
: Should you be unable to remove the injector
(acting only on point
BC
), use an open-ended
spanner (11 mm), by applying small rotations to
unblock the component.
3.
Seal all injection component unions as
illustrated in Par. 2.9.7
.
NOTE
: If the washer
S
is not found on the injector
Z
, recover it from inside the sleeve
V
.
Fig 6.6
Fig 6.7
6.1.5 Injection pump disassembly
Important
• Before proceeding with the disassembly,
identify the pump code from its identifying
name plate (Pos. 12 - Tab. 2.12).
• Alternatively, you can identify the pump from
the online spare parts catalogu
e
(h
ttps://partners.lombardini.it/App/Sparepar
tCatalogue/Default/Catalogue.aspx).
1.
Insert the tool ST_30 into the injector N°
1
an
d fix it with the fixing brace R of the
injector, capscrew P and washer Q.
NOTE
: Do not tighten the capscrew
P.
Fig 6.8
Fig 6.9
