INFORMATION FOR REPLACING THE
FUNCTIONAL UNITS
EN 62
2.
Disassemble the starter motor.
3.
Mount the tool ST_34 in the seat of th
e
s
tarter motor Y and fit it with the two starter
motor fixing screws.
4.
Rotate the crankshaft clockwise ST_34 tool
bringing reference X upwards.
NOTE: During the positioning phase of reference X,
check that cylinder N° 1 is in compression phase
(intake and exhaust valves of cylinder N° 1 must be
in closing position).

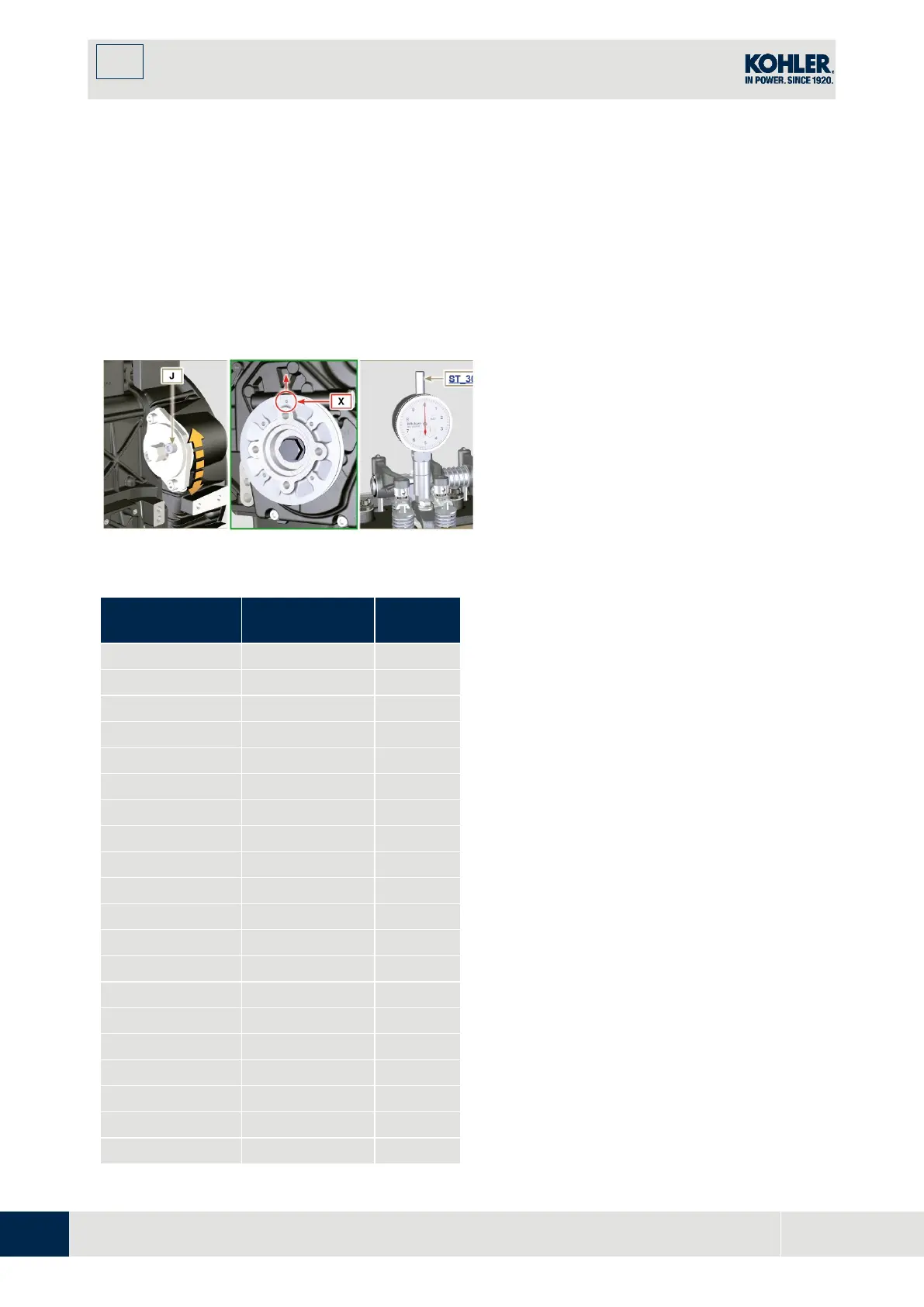

Fig 6.10
Tab. 6.1
PUMP CODE
PISTON
LOWERING (mm)
α
