FUEL SYSTEM/ ENGINE
23

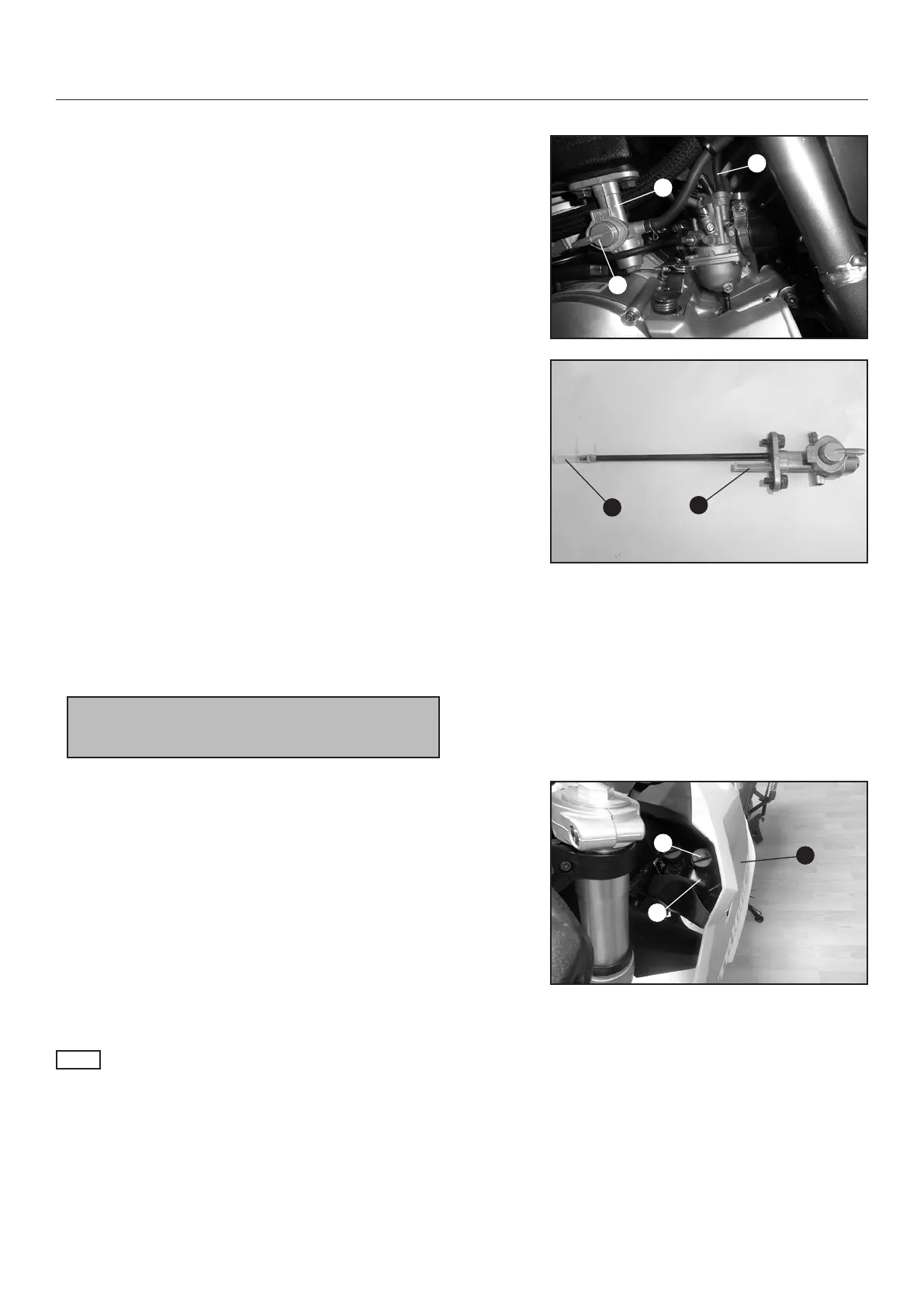

FUEL FILTERS CLEANING
The fuel lter must be changed concerning the maintenance chart
or when it is blocked.
Always check the fuel lter during each work on the fuel system.
The fuel lters are placed in the tank.
Cleaning:
1. Switch of the ignition.
2. Switch the fuel cock (1) to the “OFF” position.
3. Disconnect the fuel line (2) from the Carburetor
4. Leave out the fuel (switch the fuel cock to the “ON” position).
5. Remove the fuel tank.
6. Remove the fuel cock (3).
7. Clean the two fuel lters (4).
8. Reassemble in reverse order.
ENGINE OIL LEVEL INSPECTION
When it is necessary to rell engine oil please only use the
recommended type.
Recommended engine oil
Quantity 1 L
Castrol Power 1-Racing 2T Fully Synthetic
Under regular conditions the engine oil consumption is approxi-
mately 1L/ 700 km.
The engine oil must be checked by the end user during each fuel
relling.
The engine oil tank (1) is located on the left handle side in the
front.
Engine oil level inspection
1. Switch of the ignition.
2. Remove the engine oil tank cap (2).
3. Check the oil level.
4. Rell the recommended engine oil type till overow hose (3)
shown on the next page.
5. Reassemble in reverse order.
NOTE
• Check the engine oil level when the engine is warmed up.
• Check the oil level just one minute after stopping the engine.
If the engine oil level become too low the red indicator light will
come on.
If the engine oil level will be not indicated correct please check
the oil level sensor (5).
If the oil level sensor do not work correct you must replace it
against a new one.
2
1
3
4
4
1
2
4
To Next Page
