BRAKES
32

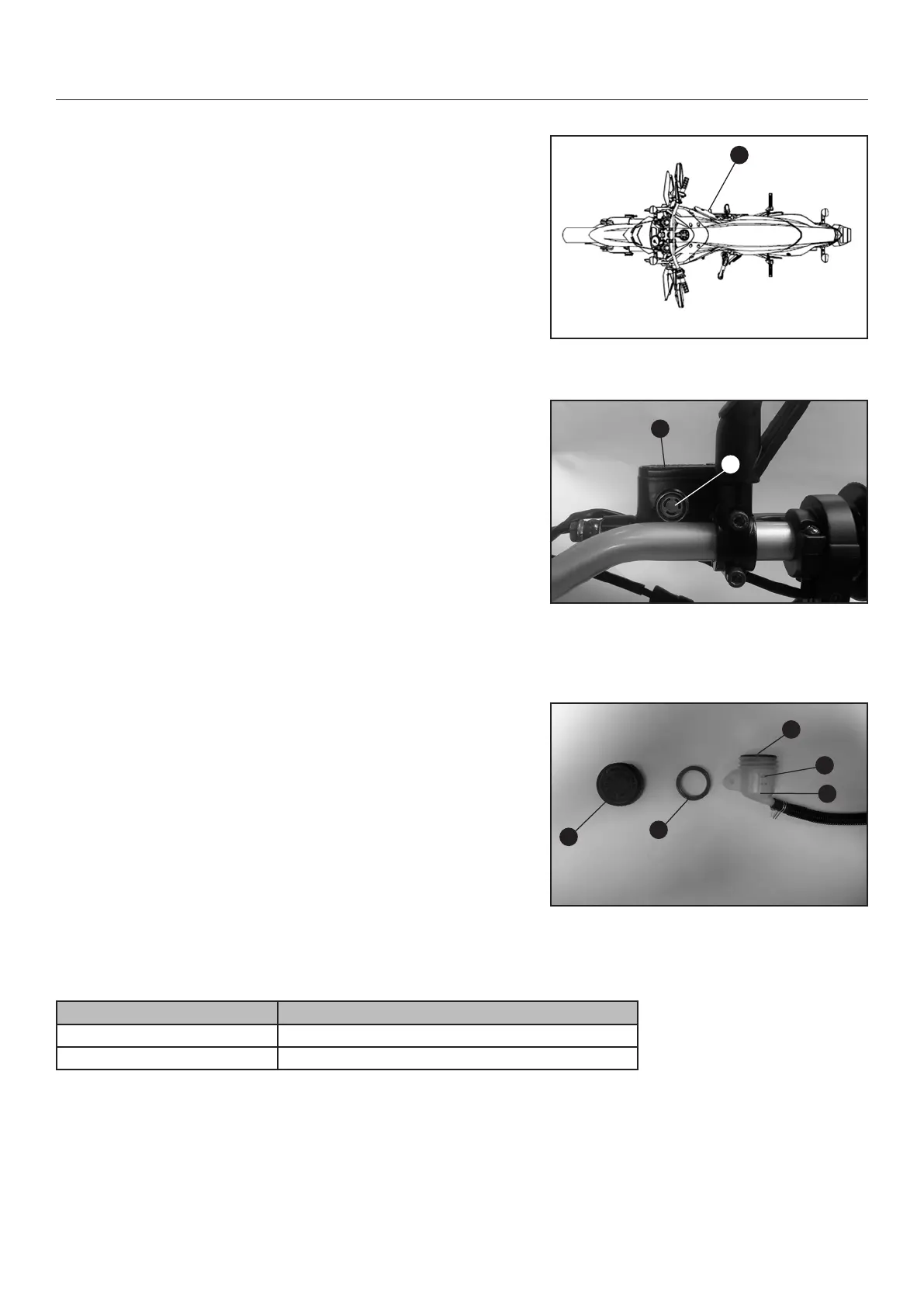

BRAKE OPERATION INSPECTION REAR
1. Operate the foot brake lever (2) until the brake pads lie on the
brake disc and check if there is a pressure point. If there is no
pressure point check the brake system.
2. While operate the foot brake lever push the vehicle forward
and backward (picture (1) on page 31) on the handlebar to
check if the brake system is working. If the brake do not work
correct check the brake system.
3. Final make a driving test with low speed and check if the
brake system is working. If the brake do not work correct
check the brake system.
BRAKE FLUID LEVEL INSPECTION FRONT
After a certain time the brake pads start to wear out and the brake
uid level falls down. If the brake uid level falls below the MIN
(1) mark, check the brake pads or and the brake system for any
leakage. Never add brake uid only without checking the system.
1. Move the brake uid reservoir mounted on the handlebar to
a horizontal position.
2. Check the brake uid level.
3. Add brake uid if necessary.
4. Remove the cover (2) with the membrane.
5. Add brake uid to the MAX level.
6. Mount the cover (2) with the membrane.
BRAKE FLUID LEVEL INSPECTION REAR
After a certain time the brake pads start to wear out and the brake
uid level falls down. If the brake uid level falls below the MIN
(1) mark, check the brake pads and the brake system for any
leakage. Never add brake uid only without checking the system.
1. Remove the brake uid reservoir (1).
2. Hold the brake uid reservoir on a horizontal position.
3. Check the brake uid level.
4. Add brake uid if necessary.
5. Remove the cover (2).
6. Remove the plastic part (3) and the rubber part (4).
7. Add brake uid to the MAX (5) level.
8. Mount the cover (2).
Brake uid type
CASTROL SUPER DISK BRAKE FLUID DOT 4
Brake uid boiling temperature > 170°C
Brake uid water content < 3%
1
4
3
2
5
2
