KSR Moto TRIGGER 50 - Exploded View; Part Location - Shift Mechanism

ENGINE/ TRANSMISSION
72

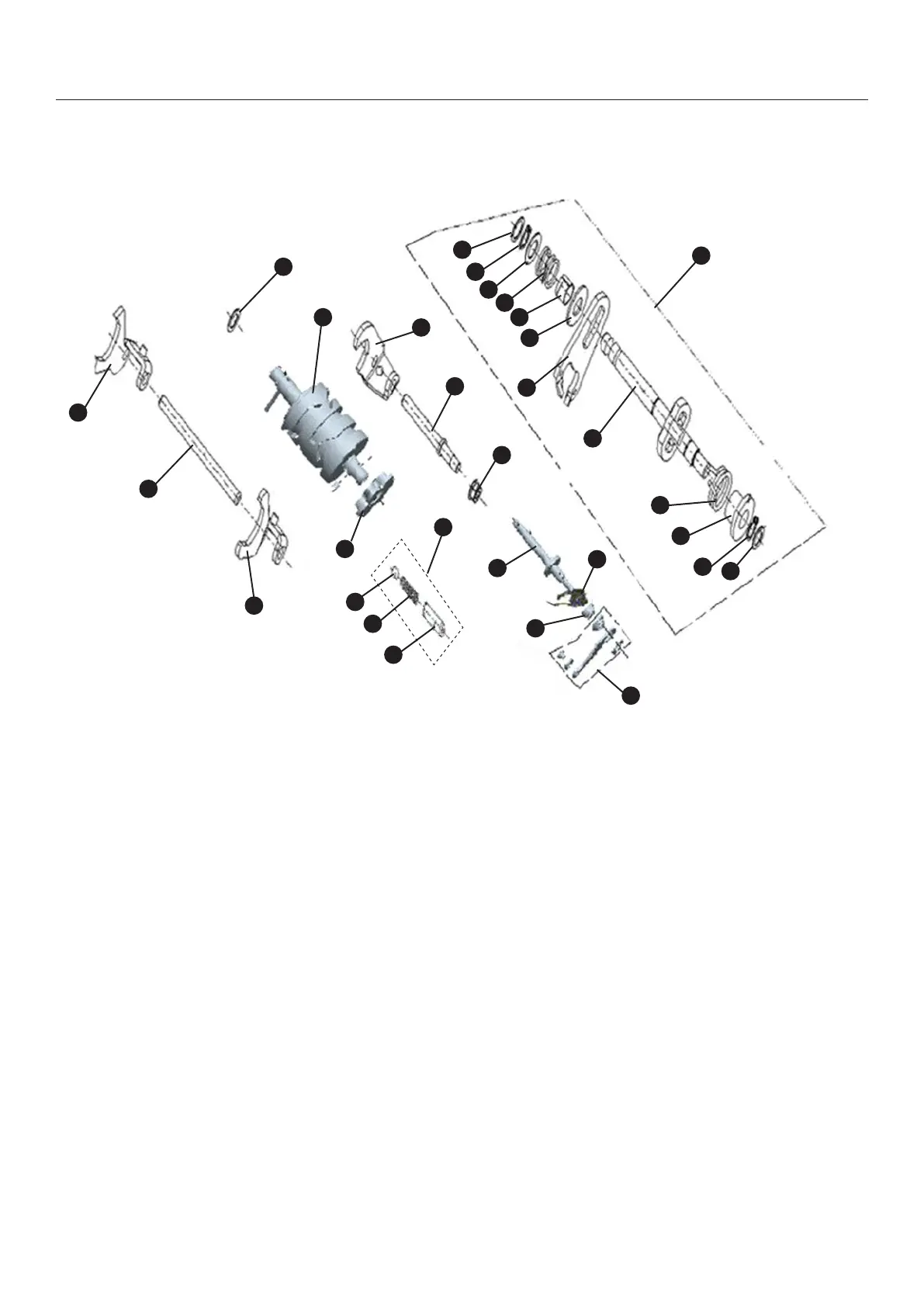

EXPLODED VIEW / PART LOCATION - SHIFT MECHANISM
PART LIST - SHIFT MECHANISM
1. Gear shift shaft assy
2. Circlip
3. Washer
4. Washer
5. Spring
6. Female
7. Washer
8. Plate gear shift shaft
9. Gear shift shaft
10. Spring
11. Spring bracket
12. Spacer
13. Stop lever
14. Bush
15. Spring
16. Shaft
17. Nut M6
18. Guid shaft shift fork
19. Shift fork
20. Spacer
21. Shift fork
22. Star washer
23. Detent
24. Steel ball
25. Spring
26. Sleeve
27. Shift frok
28. Guid shaft shift fork
29. Shift fork
9
8
7
6
5
4
3
2
1
12
11
10
3
20
21
19
18
17
16
15
14
13
28
27
22
23
24
25
26
29
