KSR Moto TRIGGER 50 - Chassis Exploded View; Part Location - Frame

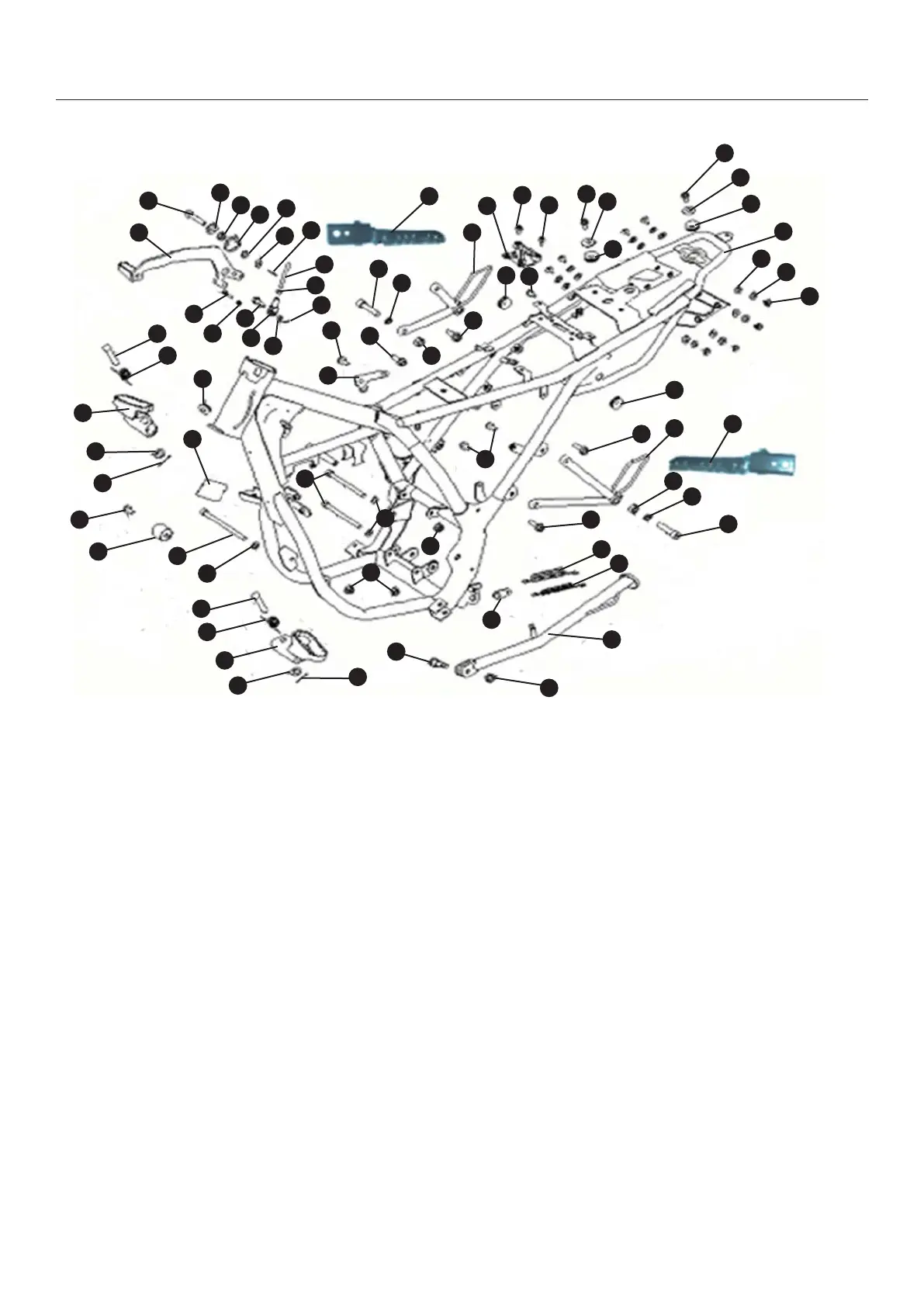

EXPLODED VIEW/ PARTS LOCATION - FRAME
CHASSIS
47
PART LIST - FRAME
1. Frame
2. Screw M15×12
3. Washer M8
4. Rubber pad
5. Rubber pad
6. Screw M8x25
7. Bracket passenger footrest
8. Passenger footrest
9. Nut M10
10. Snap ring M10
11. Screw M10x45
12. Spring- Side stand
13. Locking plate
14. Side stand 320mm
15. Nut M10x1,25
16. Screw M10x1,25
17. Splint
18. Footrest
19. Spring
20. Pin
21. Exhaust bracket
22. Screw M6x8
23. Foot brake lever
24. Screw M6x30
25. Nut M6
26. Screw M6
27. Pull handle
28. Pull rod
29. Washer
30. Spring
31. Nut M8
32. Washer
33. Screw M8x50
34. Rubber pad
35. Direction sign
36. Screw M8x120
37. Screw M8x100
38. Nut M8
39. Screw M6x20
40. Bracket
41. Screw M6x12
42. Lock mechanism seat
43. Rubber pad
44. Spacer sleeve
45. Screw M8x16
1
4
3
2
11
8
5
9
6
22
21
36
13
16
15
14
12
12
20
19
18
17
35
34
18
16
28
16
17
29
30
31
32
33
23
24
25
27
20
19
11
40
41
17
25
38
37
41
39
38
44
45
41
43
44
45
43
6
25
26
6
6
9
7
7
41
42
5
10
10
2
2
2
2
8
