SPECIAL TOOLS
See page 12-15.
TROUBLESHOOTING

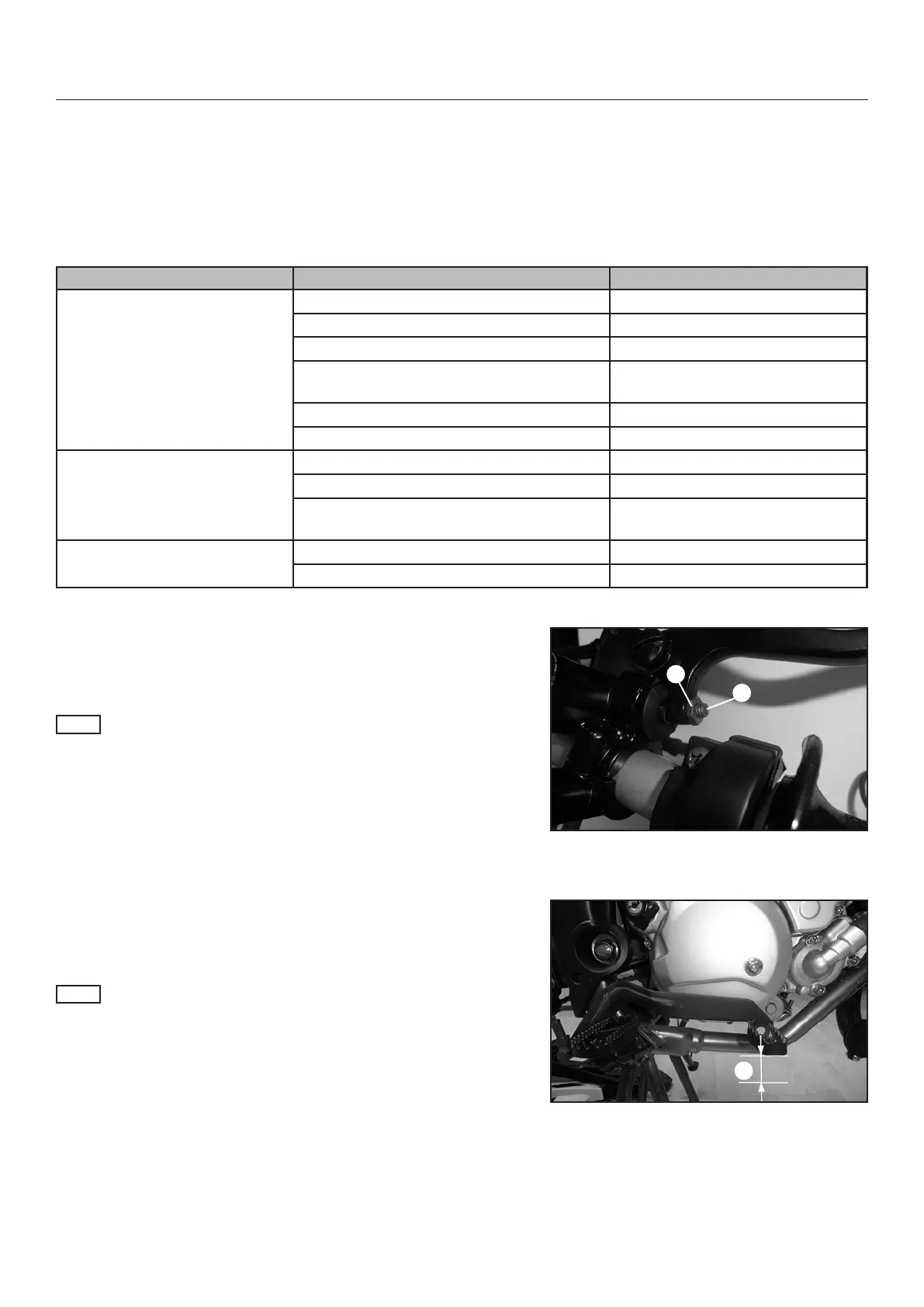

BRAKE LEVERS / FRONT BRAKE LEVER
The front brake lever is located on the right side of the handle-
bar.
NOTE
This lever operated by hydraulic the front brake. It is not
possible to adjust the free-play of the front brake lever. When
the brake lever feels spongy or the brake performance is poor
the front brake system have to be bleeded.
It is possible to adjust the grip width by loosing the xing nut (1)
and screwing the adjustment bolt (2) in or out.
See page 38.
BRAKE LEVERS / REAR BRAKE PEDAL
The rear brake pedal is located on the right side of the vehicle.
NOTE
This lever operated by hydraulic the rear brake. When the brake
pedal feels spongy, the brake performance is poor or the free
play (A) is not correct the rear brake system have to be adjust-
ed. See page 38.
FAILURE CAUSE TO DO
Poor brake performance
Unfavourable brake adjustment Adjust the brake system
Brake pads worn Replace the brake pads
Brake pads installed improperly Install the brake pads proper
Brake pads or brake disc contaminated
Clean or replace the brake pads
and clean the brake disc/ drum
Air in the front brake hose Bleed the brake hose
Gasket(s) leaky Replace affected gasket
Strange sound during braking
Brake pads glazed Replace the brake pads
Burrs Grind away burr
Brake pads or brake disc contaminated
Clean or replace the brake pads
and clean the brake disc/ drum
Pulsing during braking
Brake disc worn Replace brake disc
Brake drum worn Repalce the rear rim
