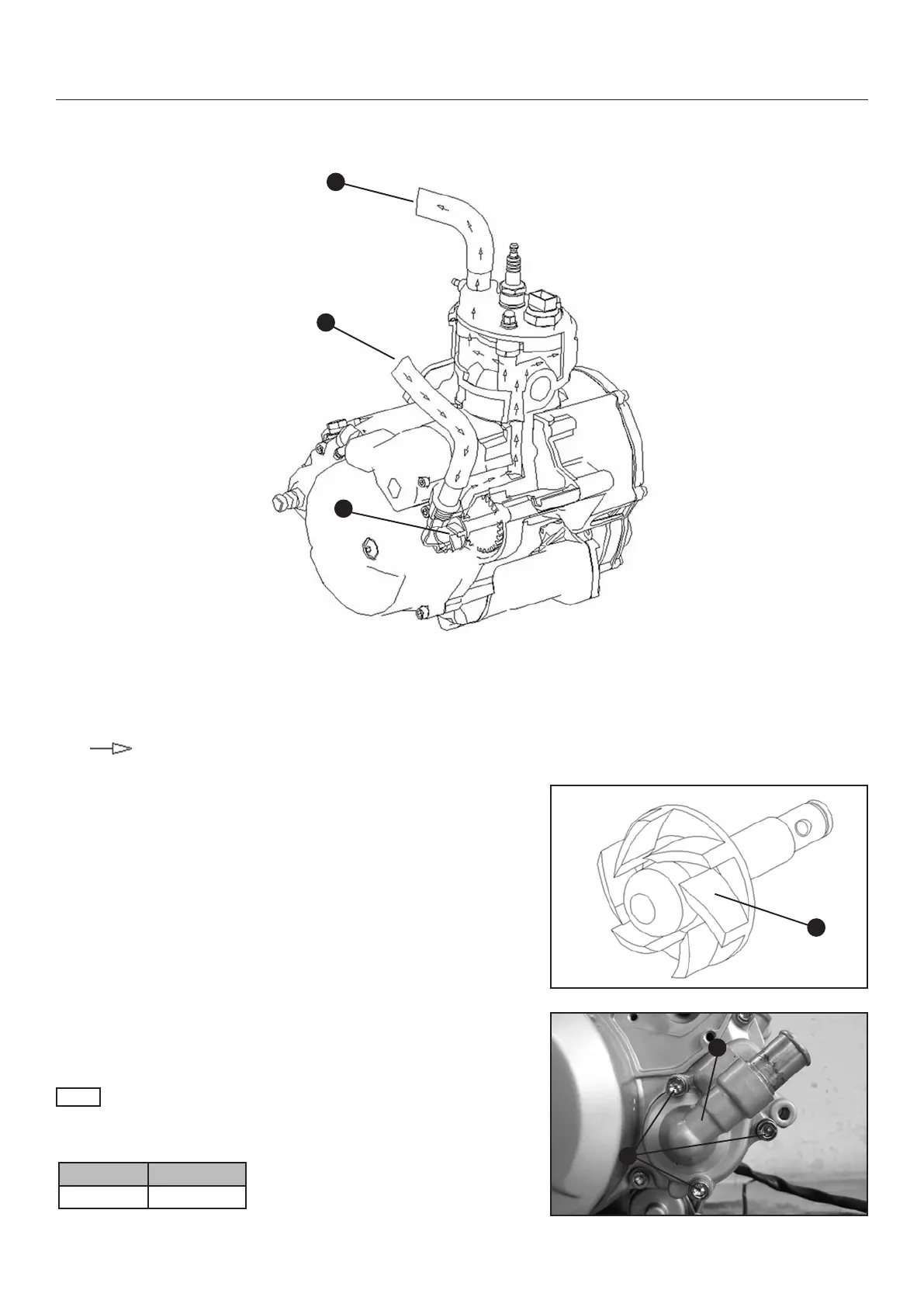

COOLING SYSTEM SCHEME
WATER PUMP INSPECTION
1. Inspect the wear and tear of the impeller set (1). Severe
wear and replace it.
WATER PUMP ASSEMBLING
1. Install the oil pump (1) on the right crankcase and check free
movement.
2. Tighten the bolts (2).
NOTE
Renew the gasket.
TORQUE LIST
PART NO. TORQUE
2 8 - 12 Nm
ENGINE/ COOLING SYSTEM/ WATER PUMP
91
3
2
1
PART LIST - LUBRICATION SYSTEM
1. Water pump
2. Connected to the water tank
3. Flow back to the water tank
Water ow direction
1
1
2
