KSR Moto TRIGGER 50 - Exploded View; Part Location - Rear Swing Arm

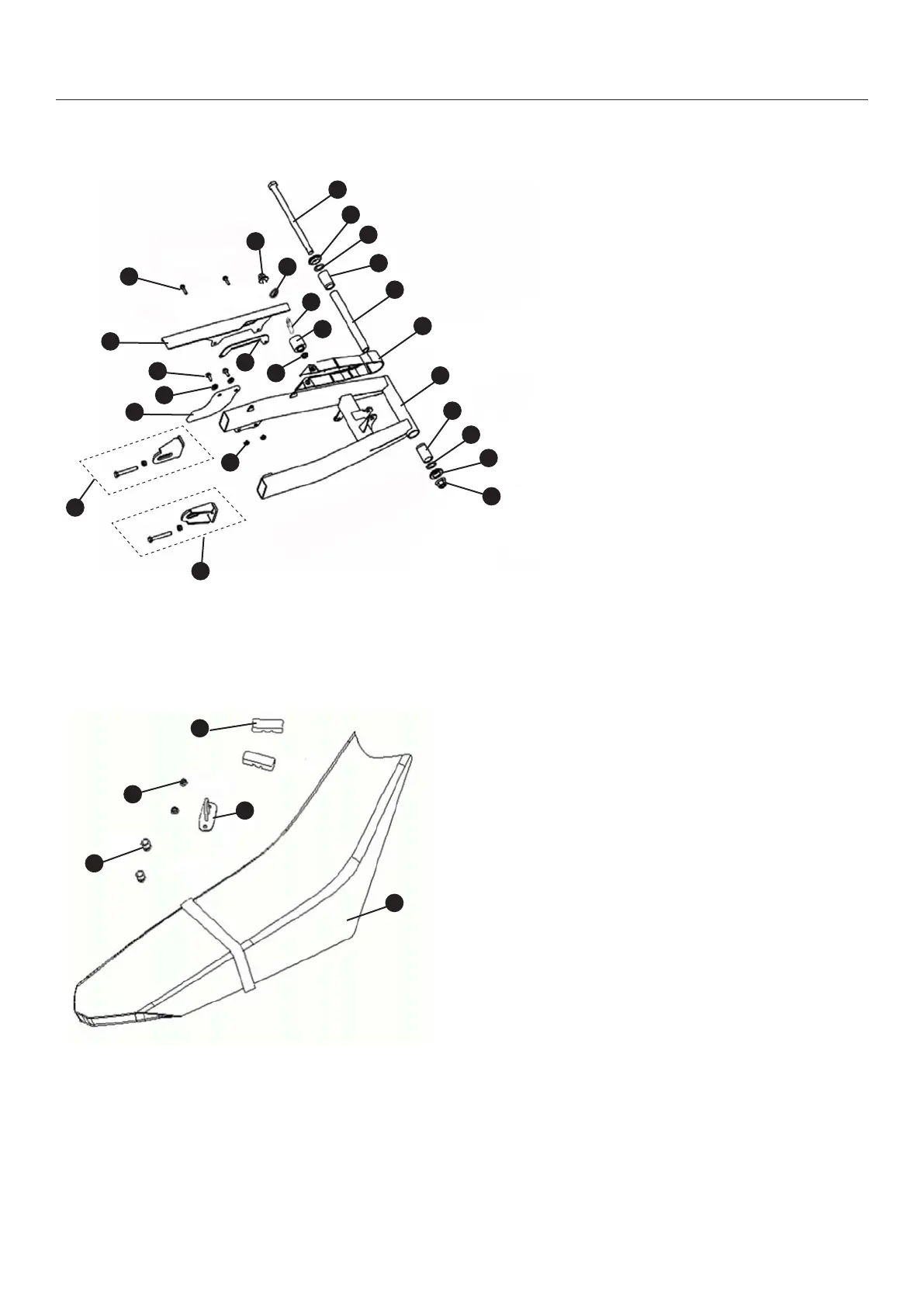

EXPLODED VIEW / PARTS LOCATION - REAR SWING ARM
REAR SWING ARM
CHASSIS
48
PART LIST - REAR SWING ARM
1. Mounting shaft
2. Anti dust ring
3. O-Ring
4. Bush
5. Sleeve
6. Chain guid
7. Rear swing arm
8. Nut M14x1.5
9. Chain adjuster right
10. Chain adjuster left
11. Nut M6
12. Chain guid
13. Spacer sleeve
14. Screw M6x16
15. Bracket chain case
16. Chain case
17. Screw Mx16
18. Screw M8x50
19. Washer M8
20. Spacer sleeve
21. Chain roller
22. Nut M8
5
4
3
2
1
3
4
7
6
8
2
9
10
22
15
18
17
16
14
13
12
11
21
20
19
5
3
4
2
1
PART LIST - SEAT
1. Seat
2. Rubber pad
3. Catch snap lock
4. Nut M5
5. Rubber pad
EXPLODED VIEW / PART LOCATION - SEAT
