KSR Moto TRIGGER 50 - Carburettor Exploded View; Part Location - Carburettor

FUEL SYSTEM/ CARBURETTOR
52

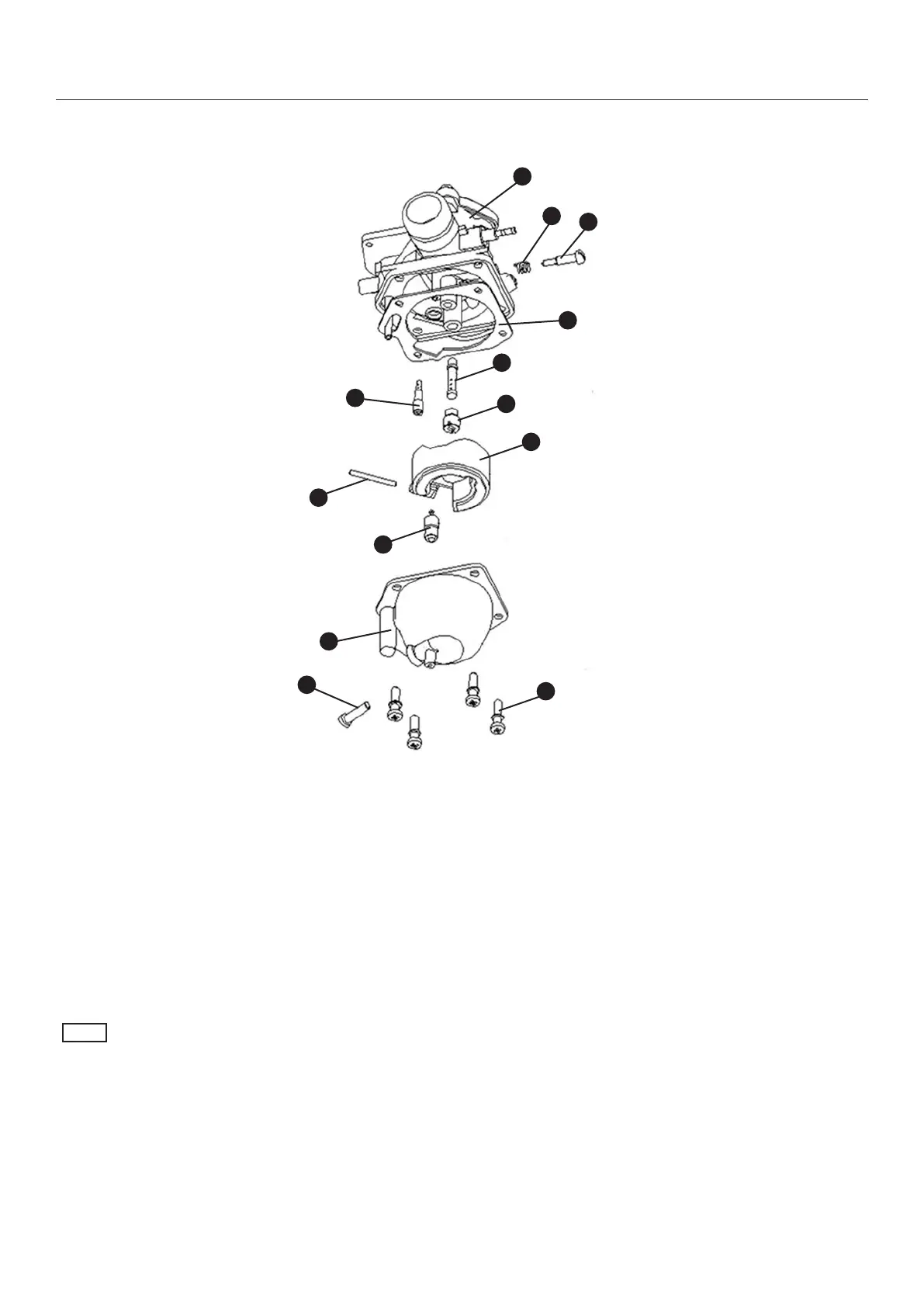

EXPLODED VIEW / PART LOCATION - CARBURETTOR
PART LIST - CARBURETTOR
1. Carburettor assy MJ95/ NJ22.5
2. Spring
3. Idle adjustment screw
4. Float chamber gasket
5. Main bubble tube
6. Idle Jet 22.5
7. Main jet 95
8. Floater
9. Floater pin
10. Needle valve
11. Float chamber
12. Drain screw
13. Screw M4x12
NOTE
Use a cloth to block the intake manifold after dis-
mounting carburettor to avoid other article entry.
For the detailed specication see page 8 and 18.
1
8
9
7
6
5
4
3
2
12
13
11
10
