KSR Moto TRIGGER 50 - Wheels and Tires

ENGINE/ WHEELS AND TIRES
92
NOTE
Assemble the engine to the frame in reversed order of removal.
!
WARNING
Add oil and water before starting the engine. Double check
engine oil amount by engine oil niveau screw.

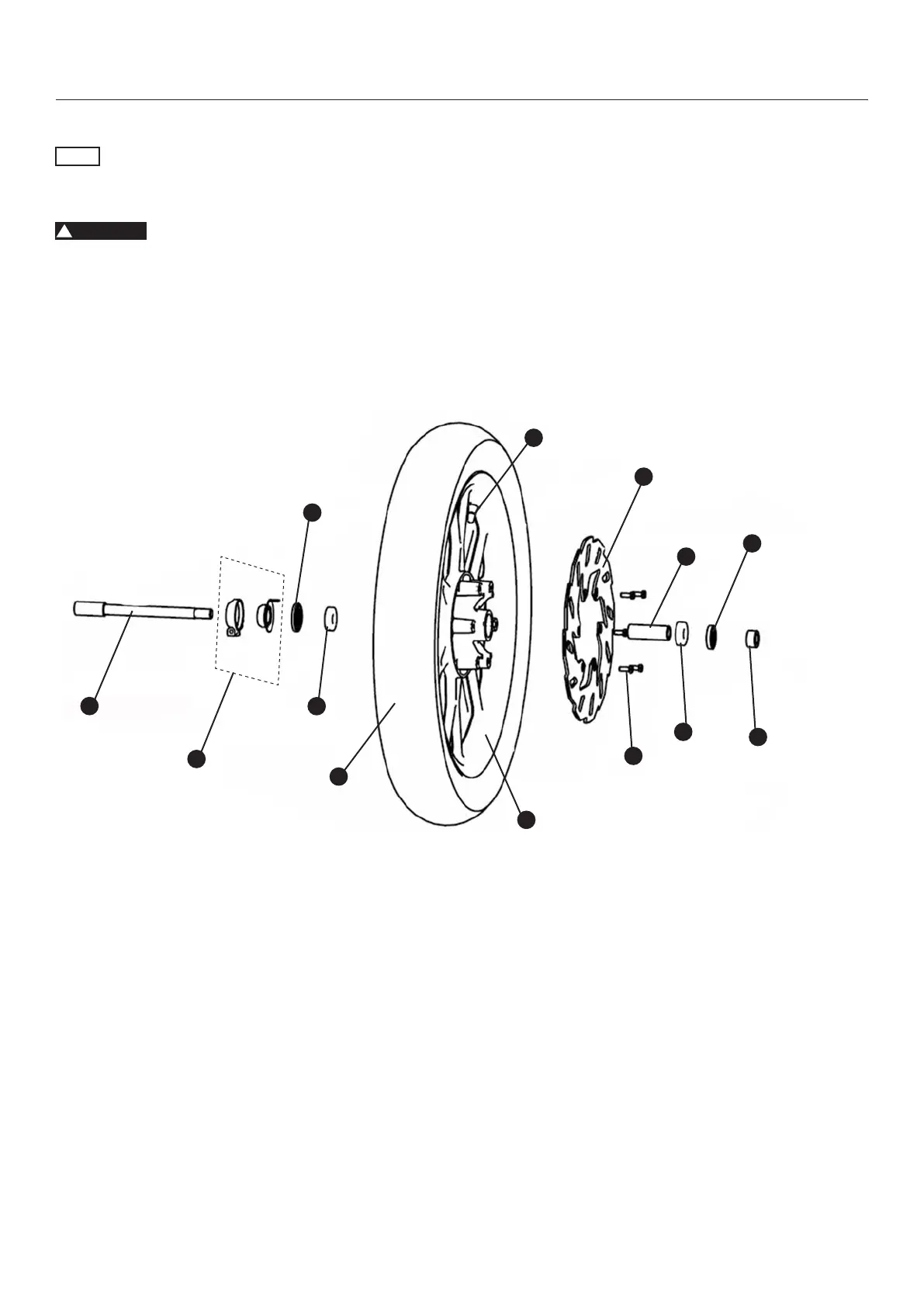

EXPLODED VIEW / PART LOCATION - FRONT WHEEL
2
10
7
5
4
3
1
9
8
6
4
3
11
PART LIST - FRONT WHEEL
1. Axle
2. Speedometer
3. Oil seal 22x35x7
4. Rolling bearing 6202-2RS
5. Tire 100/80-17
6. Rim 2.25x17
7. Valve/ dust cap
8. Brake disc
9. Mounting bolts
10. Middl shaft sleeve
11. Left shaft sleeve
