WHEELS AND TIRES
93

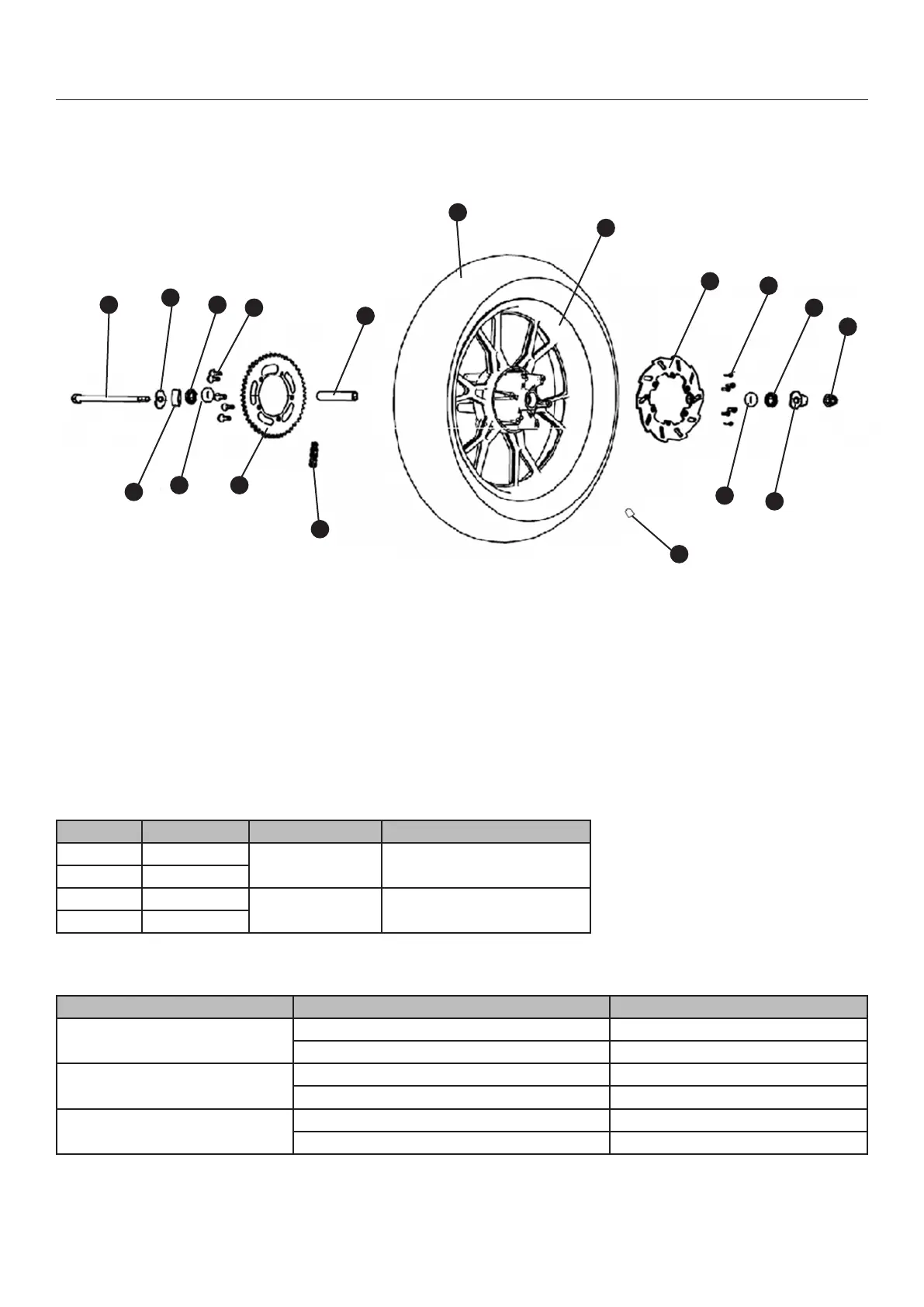

EXPLODED VIEW / PART LOCATION - REAR WHEEL
ITEM DIMENSION PRESSURE/ BAR MINIMUM TREAD DEPTH
Front tire 100/80 - 17
2.25
Technically - 1,6 mm
Legal value may be different
Front rim 2.50 x 17
Rear tire 130/80 - 17
2.5
Technically - 1,6 mm
Legal value may be different
Rear rim 3.00 x 17
FAILURE CAUSE TO DO
It’s hard to move the wheels or wob-
bly Front Wheel
One wheel bearing is damaged Replace the bearing
The tire air pressure is to low Adjust the air pressure
Wheel unbalanced
Rim damaged Replace the rim
Tire worn Replace the tire or Balance the wheel
Abnormal or scratching noise
Wheel bearing loosened or worn Replace the bearing
Speedometer drive defect Replace the speedometer drive
PART LIST-REAR WHEEL
1. Axle
2. Press plate
3. Left sleeve
4. Oil seal 22x35x7
5. Rolling bearing 6202-
2RS
6. Mounting bolts of chain
wheel
7. Chain wheel 55T
8. Bearing sleeve
9. Chain 420DX-1x128
10. Tire 130/80-17
11. Rim 3.00x17
12. Brake disc
13. Mounting bolts of brake
disc
14. Fixing nut M14x1.5
15. Valve/dust cap
TROUBLESHOOTING
8
10
7
6
5
4
3
2
1
9
13
12
11
14
15
