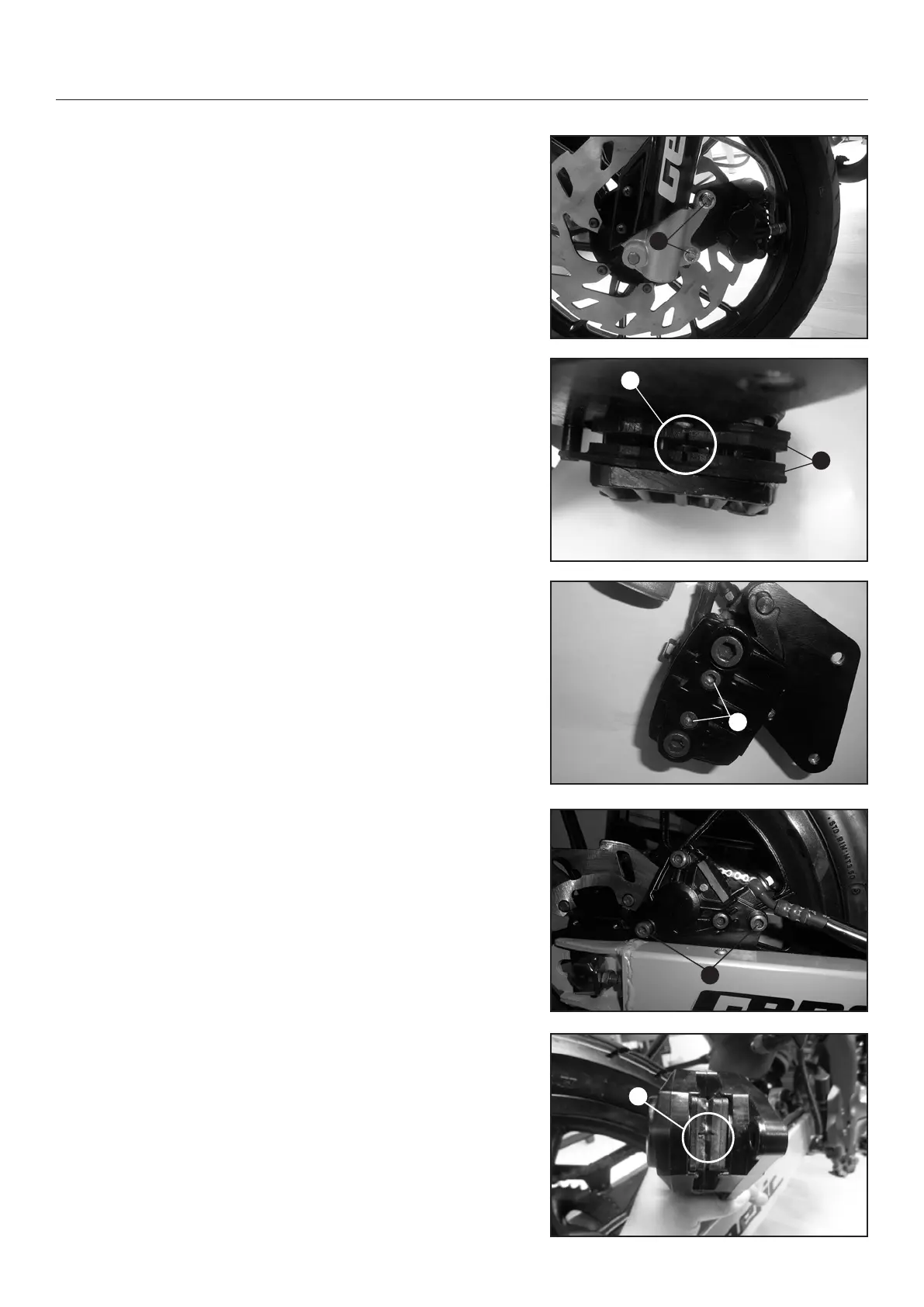

FRONT BRAKE PADS INSPECTION
Reduced braking efciency caused by worn brake pads.
Change worn brake pads immediately. Always replace the brake
pads in pair.
1. Loose the mounting bolts (1) of the braking calliper bracket.
2. If the minimum thickness is less than the indicators (2),
damage or cracking is visible change the front brake pads.
3. Loosen the two mounting bolts (3).
4. Change the brake pads (4) in pair.
5. Reassemble in reverse order.
REAR BRAKE PADS INSPECTION
Reduced braking efciency caused by worn brake pads.
Change worn brake pads immediately. Always replace the brake
pads in pair.
1. Loose the mounting bolts (1) of the braking calliper bracket.
2. If the minimum thickness is less than the indicators (2),
damage or cracking is visible change the rear brake pads.
