ENGINE/ DISASSEMBLING/ TOP END
63

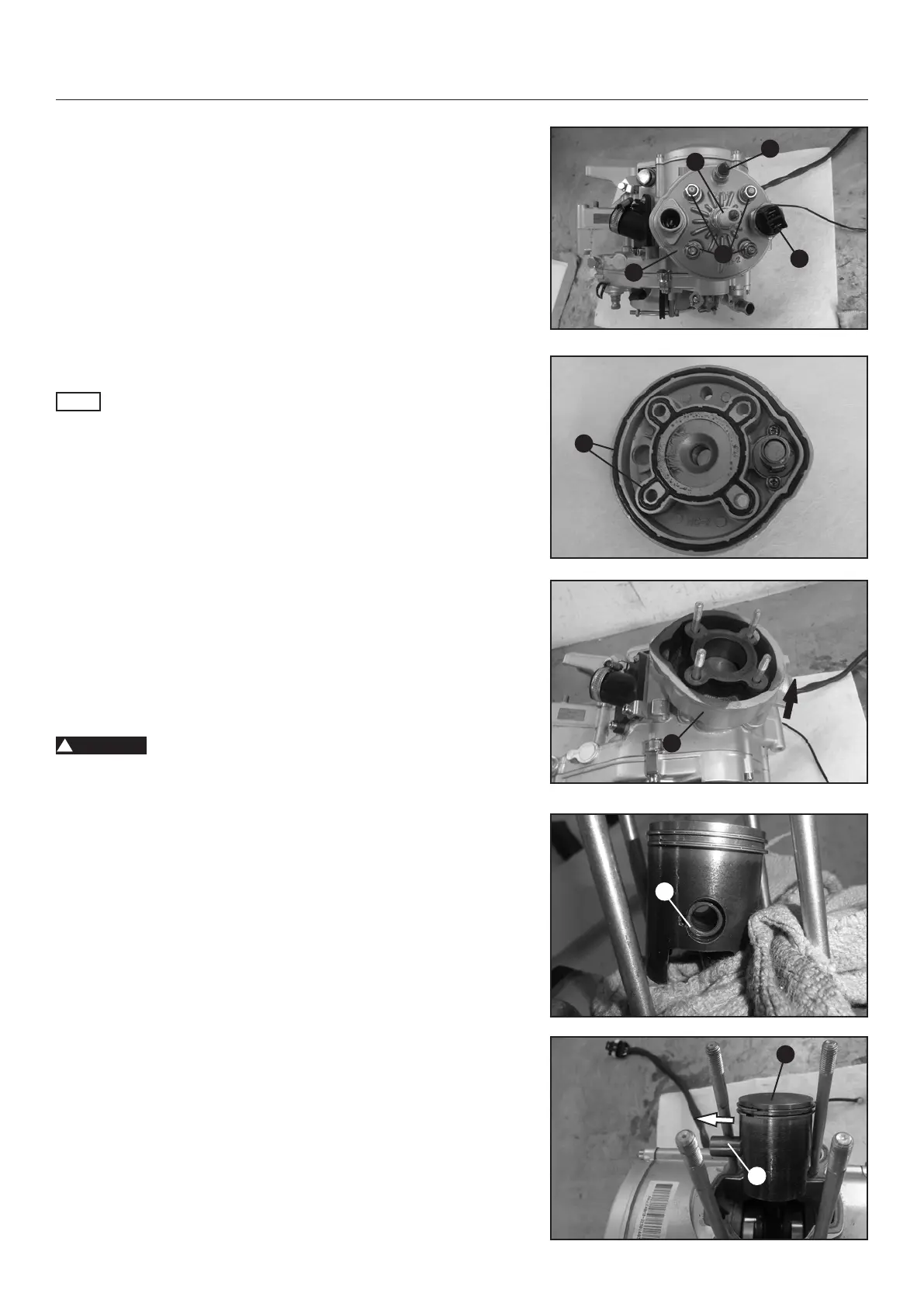

CYLINDER COVER REMOVAL
1. Remove the spark plug (1), the thermo switch (2), the
temperature sensor (3) and the four nuts (4).
2. Remove the cylinder head (5) and gaskets (6).
NOTE
Loosen each nut (4) 1/4 turn, and remove them after all nuts are
loosened.
Renew the gaskets (6).
CYLINDER REMOVAL
1. Remove the cylinder head (1) by pulling the cylinder head off.
PISTON REMOVAL
!
WARNING
Before start to disassembling the piston is recommended to
secure the crankcase opening with a rag.
1. Remove the C-type piston pin clip (1).
2. Push out the piston pin (2).
3. Remove the piston (3).
4
5
1
3
2
6
1
1
2
3
