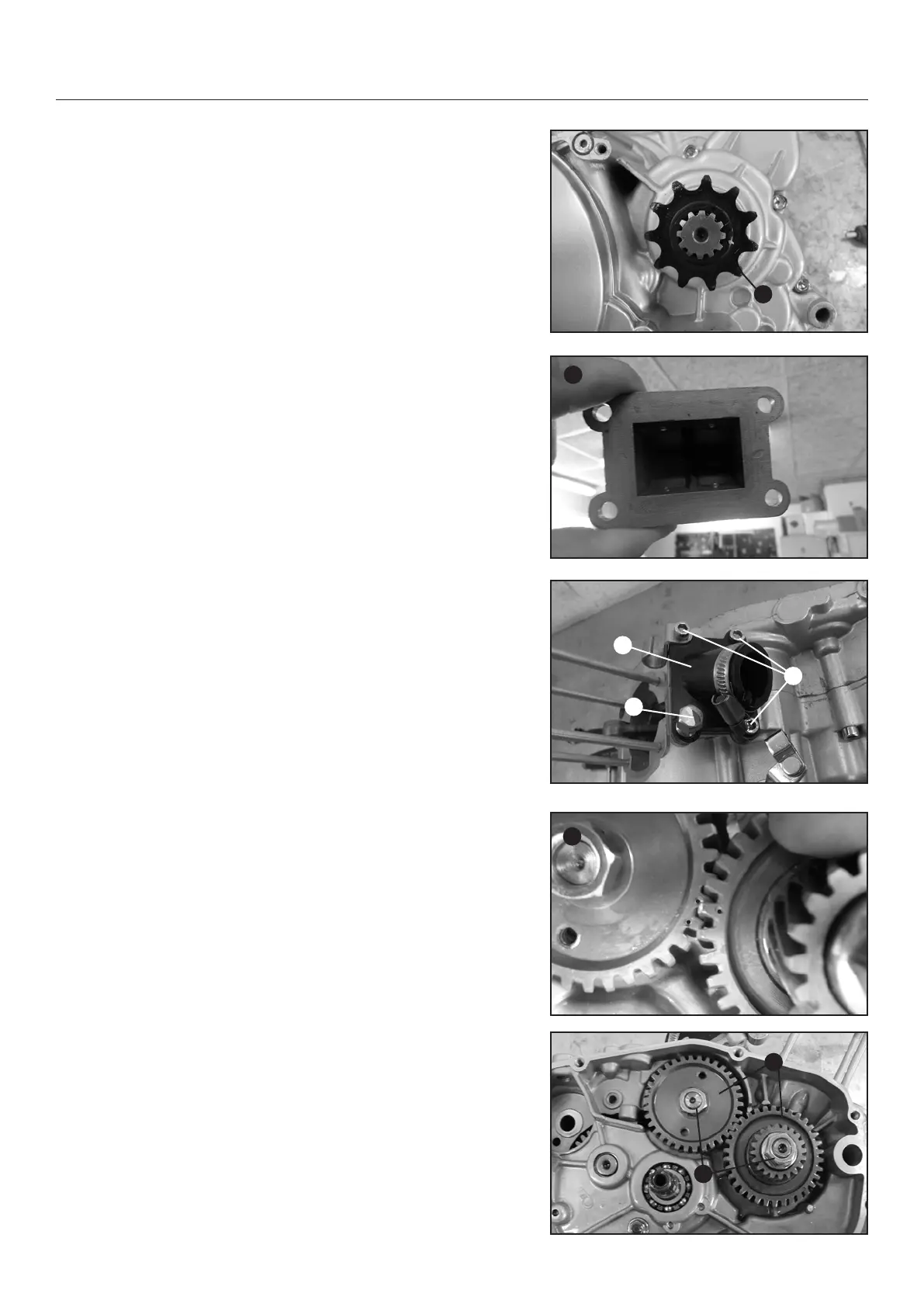

SPROCKET INSTALLATION
1. Assemble the sprocket in reverse order of removal (see page
65)
MEMBRANE INSPECTION
1. Controll the membrane to their thickness. Hold up the mem-
brane as shown in the picture (1) and look if light shines
throug. If light shines throug the membrane renew the mem-
brane.
MEMBRANE INSTALLATION
1. Install the membrane (1) and thighten the three bolts (2) in
specic torque.
2. Tighten the secure bolt till the head (3) of the bolt brakes
away.
RIGHT CRANKCASE ASSEMBLING
1. Install the dowel pins.
2. Install the crankshaft gear (1) and the primary shaft gear (2)
together. Do not use any additional force like a rubber ham-
mer. If necessary heat up the crankcase and cool down the
crankshaft. Install the crankshaft together with the primary
shaft gear at the following marking (Picture 1).
3. Tighten the two nuts (3).
4. Before continue assembling check the clutch.
