KSR Moto TRIGGER 50 - Exploded View; Part Location - Crank Assembly

ENGINE
58

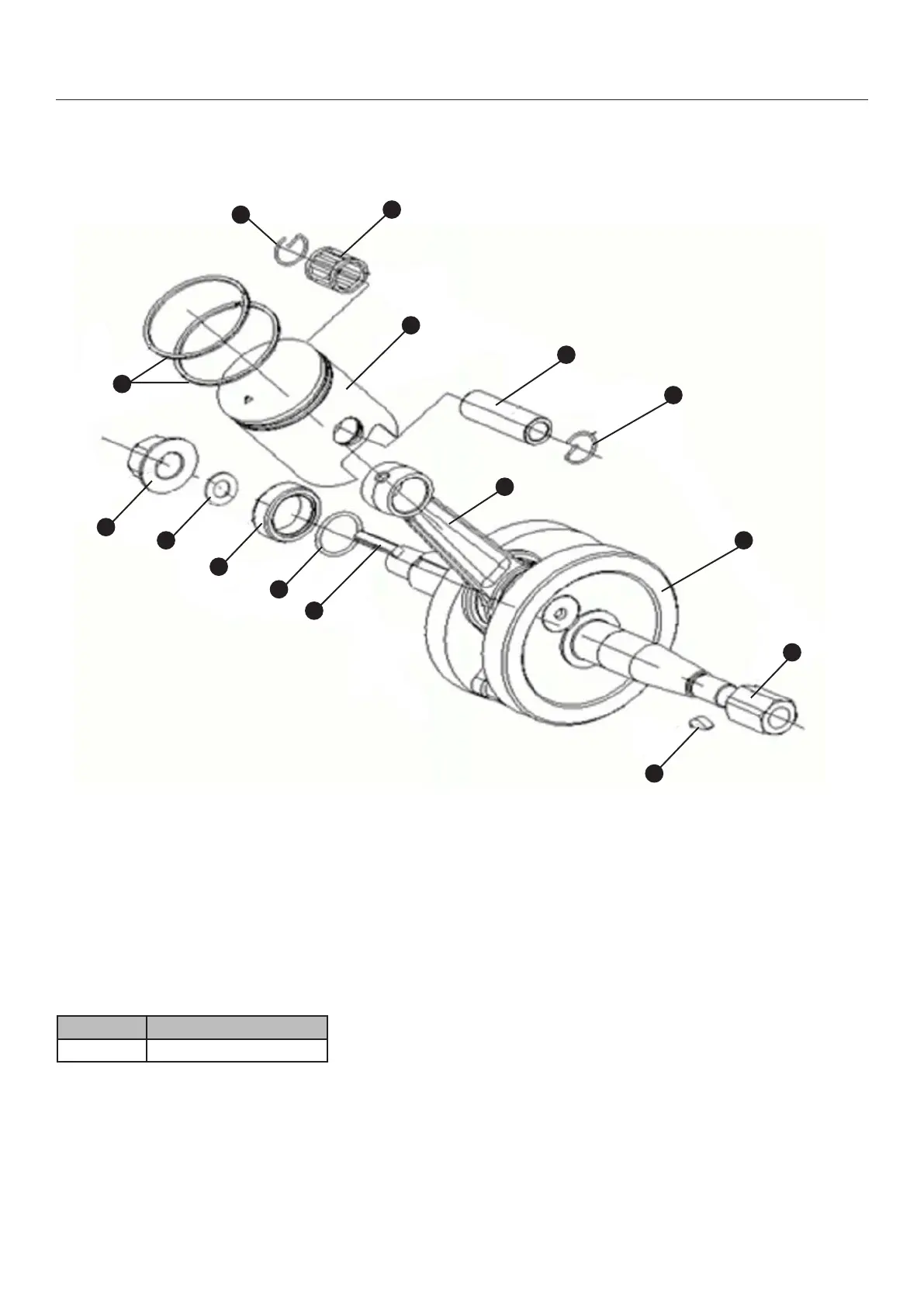

EXPLODED VIEW / PART LOCATION - CRANK ASSEMBLY
PART LIST - CRANK ASSEMBLY
1. Piston ring
2. Piston pin clip
3. Needle bearing
4. Piston
5. Piston pin
6. Connectin rod
7. Crankshaft
8. Nut
9. Woodruff key
10. Woodruff key
11. O-Ring 15.5x1.5
12. Bush
13. Washer
14. Nut
7
6
2
5
4
3
2
8
1
11
14
13
10
12
9
PART. NO. NOTE
14 Stick in
