KSR Moto TRIGGER 50 - Clutch Removal

CLUTCH REMOVAL

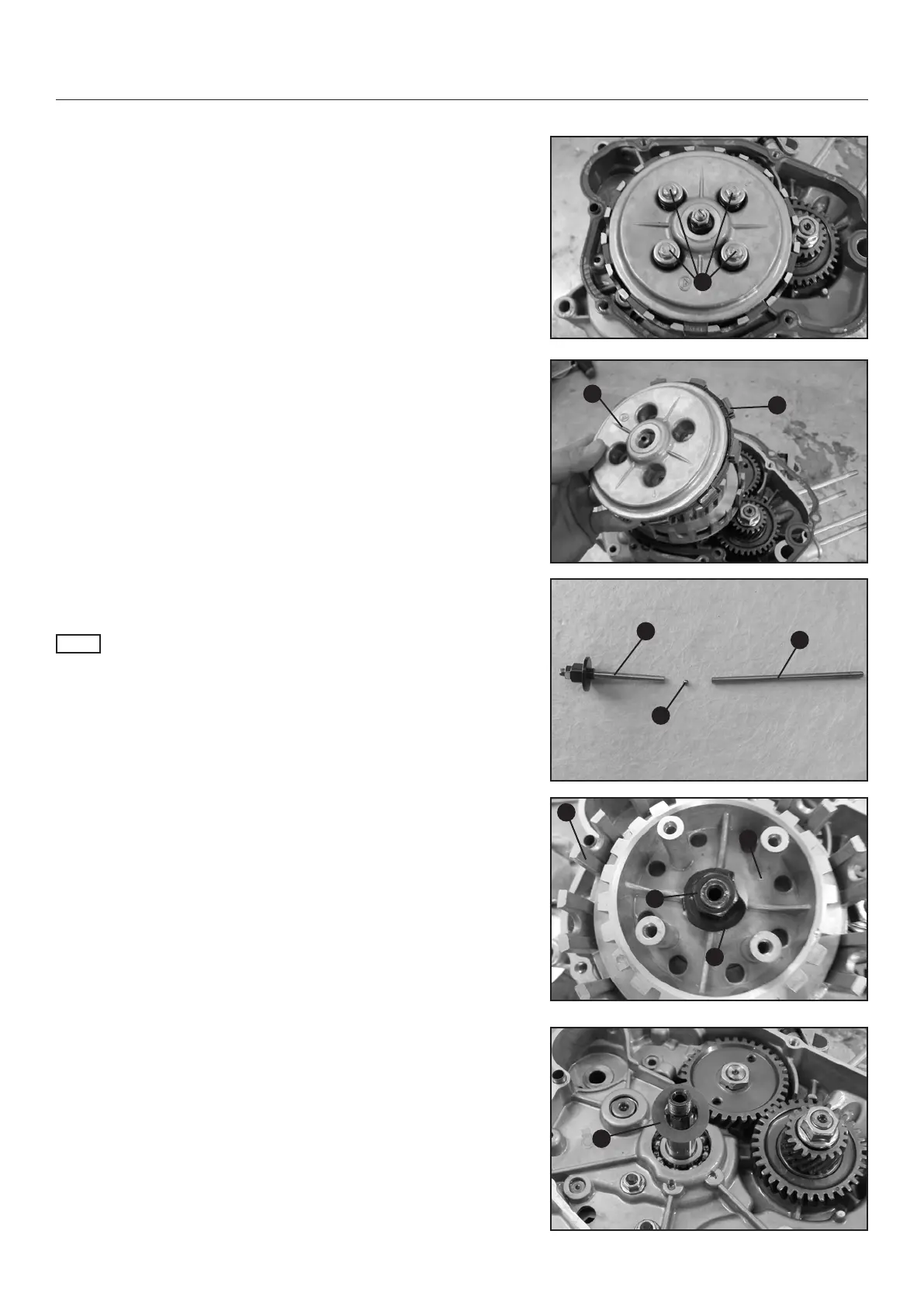

1. Remove the four clutch screws (1) with their springs.
2. Remove the clutch pressure plate (2) and the friction plates
(3).
3. Rotate the engine and pull out the clutch push rod (4) with the
bearing ball (5) and the bolt (6).
NOTE
Watch out not to lose the bearing ball.
4. Loose the secure washer (5) for clutch nut and remove the
clutch nut (6) and the secure washer.
5. Pull out the inner clutch basket (7) and the outer clutch bas-
ket (8) .
6. Also remove the washer (9). It is possible that the washer is
pinched on the rear side of the basket.
ENGINE/ DISASSEMBLING/ CLUTCH
