FUEL SYSTEM/ FUEL SUPPLY
55

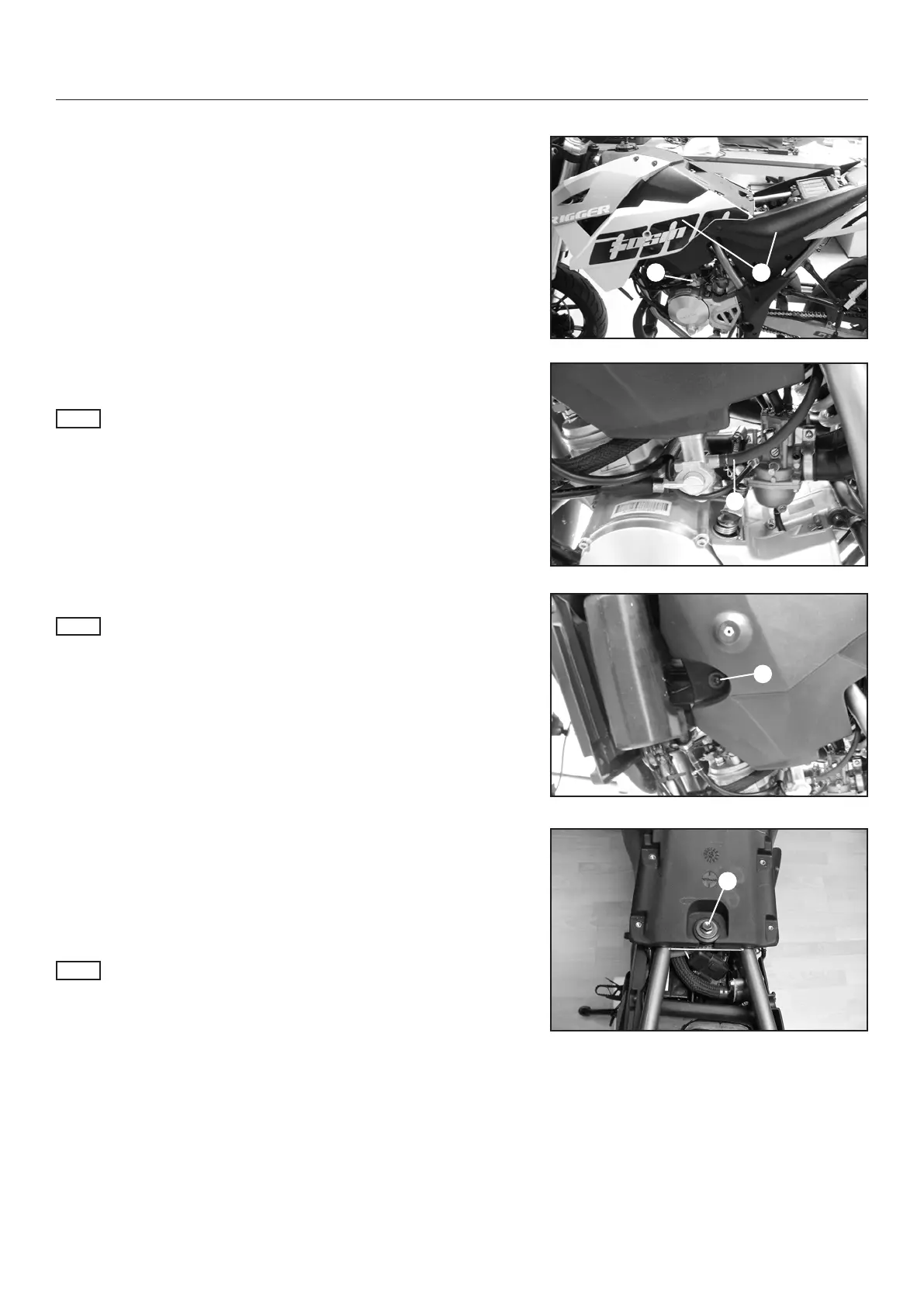

FUEL TANK REMOVAL
1. Switch of the ignition.
2. Switch the fuel cock (1) to the “OFF” position.
3. Remove the seat bench and the side covers (2).
4. Disconnect the fuel line (3) from the fuel cock.
NOTE
The fuel line is lled with fuel. Block it immediately after removal
from the fuel cock. It´s recommended to drain the fuel from the
tank before removal.
5. Remove the bolt (4) on the left and right side of the tank.
NOTE
Only one side (left side) is shown.
6. Remove the bolt (5) on the top of the tank.
7. Slide the fuel tank backwards to remove it.
8. Assembling in reversed order.
NOTE
Check the correct position before tightening the bolts.
