ENGINE/ CLUTCH
86

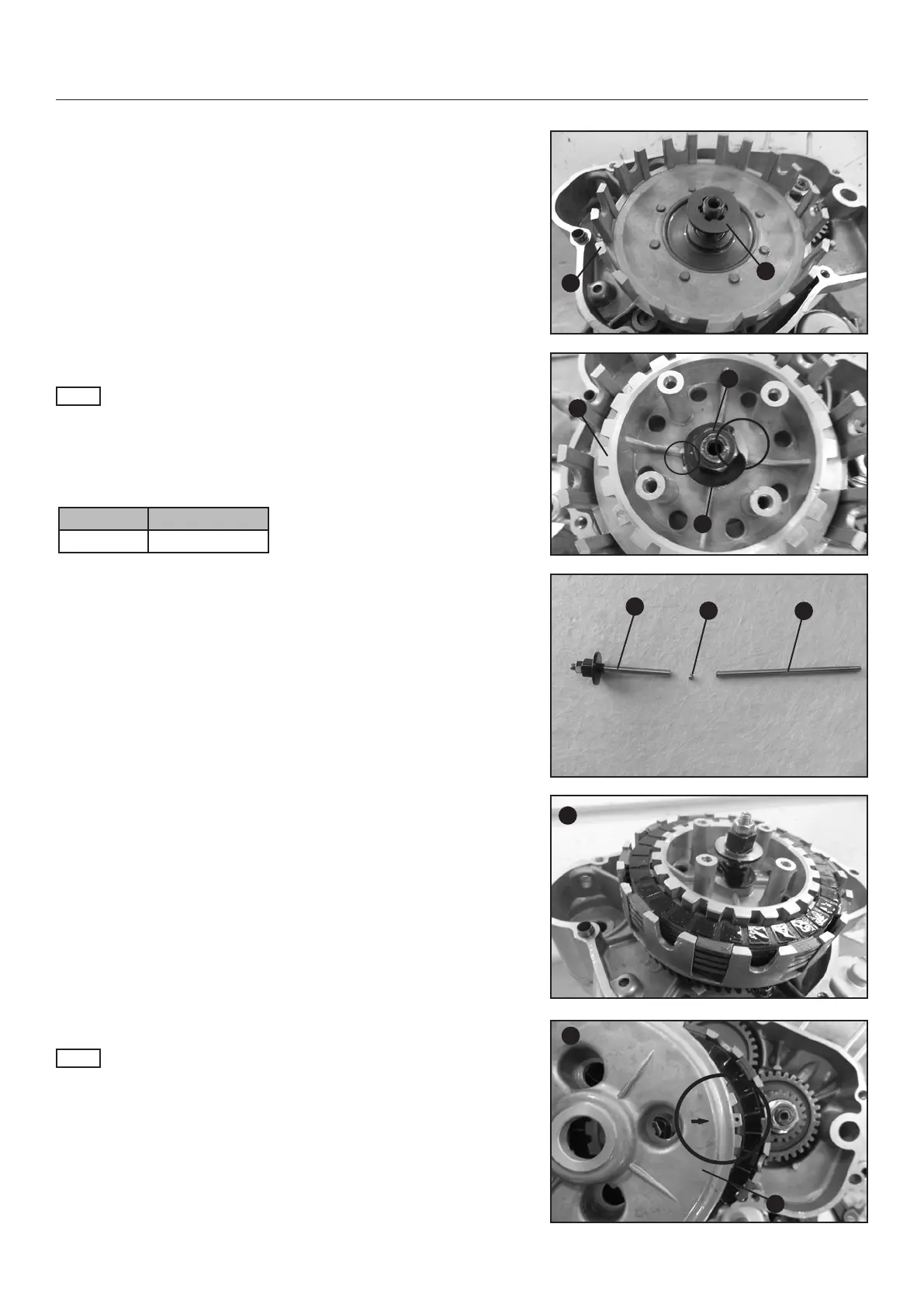

CLUTCH ASSEMBLING
1. Install housing set (1) and the internal gasket (2).
2. Install the center (3), the secure washer (4) and the nut (5).
NOTE
Watch out to the position of the secure washer.
3. Tighten the locknut (5) an x the secure washer (4).
4. Insert inward release lever (6), bearing ball (7) and outward
release lever (8) afterwards.
5. Start assembling the clutch with a wearing plate. Alternately
clutch wearing plate and iron friction plate (picture 1).
6. Afterwards install the pressure plate (9).
NOTE
Watch out to the position of the pressure cover.
The arrow on the pressure cover had to show to the point on the
center (picture 2).
1
2
6
7
8
1
TORQUE LIST
PART NO. TORQUE
5 50 - 60 Nm
2
9
4
3
5
