DRIVE CHAIN/ SUSPENSION
40

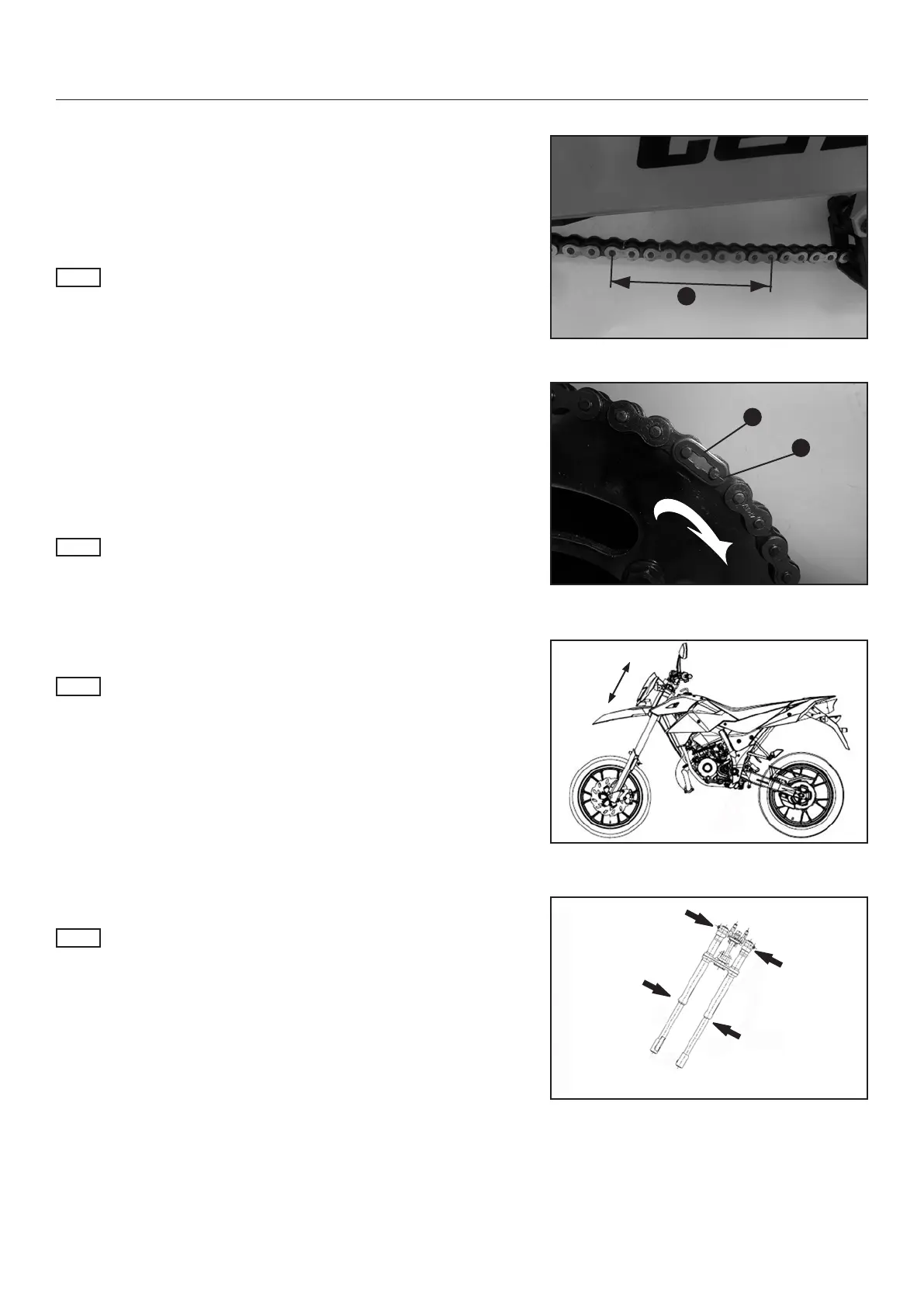

DRIVE CHAIN WEAR INSPECTION
1. Measure length of 10 chain links. If they cannot meet the
specied value, replace the drive chain.
Allowable limit A: 127 mm
NOTE
Stretch the chain by hands and then measure it. The measuring
range is from chain link roller to inner side of roller.
When any damage is visible on the chain replace it.
DRIVE CHAIN REPLACEMENT
1. Relax the rear wheel.
2. Open the chain lock (1) of the defect chain.
3. Install the new chain in reversed order.
4. Fix the rear wheel in reversed order. Take care about the cor-
rect installation and correct chain slack.
NOTE
The open side of the chain lock (2) must be installed into
backward rotation direction (arrow).
FRONT FORK OPERATION INSPECTION
NOTE
At every inspection the fork should be controlled.
1. Apply the front brake and compress the front shock absorber
up and down (arrows) to check for correct operation.
2. When the fork stick, feel spongy or the free play between the
fork tubes is too big replace the defect fork leg.
3. Check if each screw is tightened.
FRONT FORK OIL LEAK INSPECTION
NOTE
At every inspection check also if the fork is tight.
1. Check the dust/ oil seal between the fork legs and the top end
(arrows). When oil is leaking replace the affected fork leg.
A
1
2
