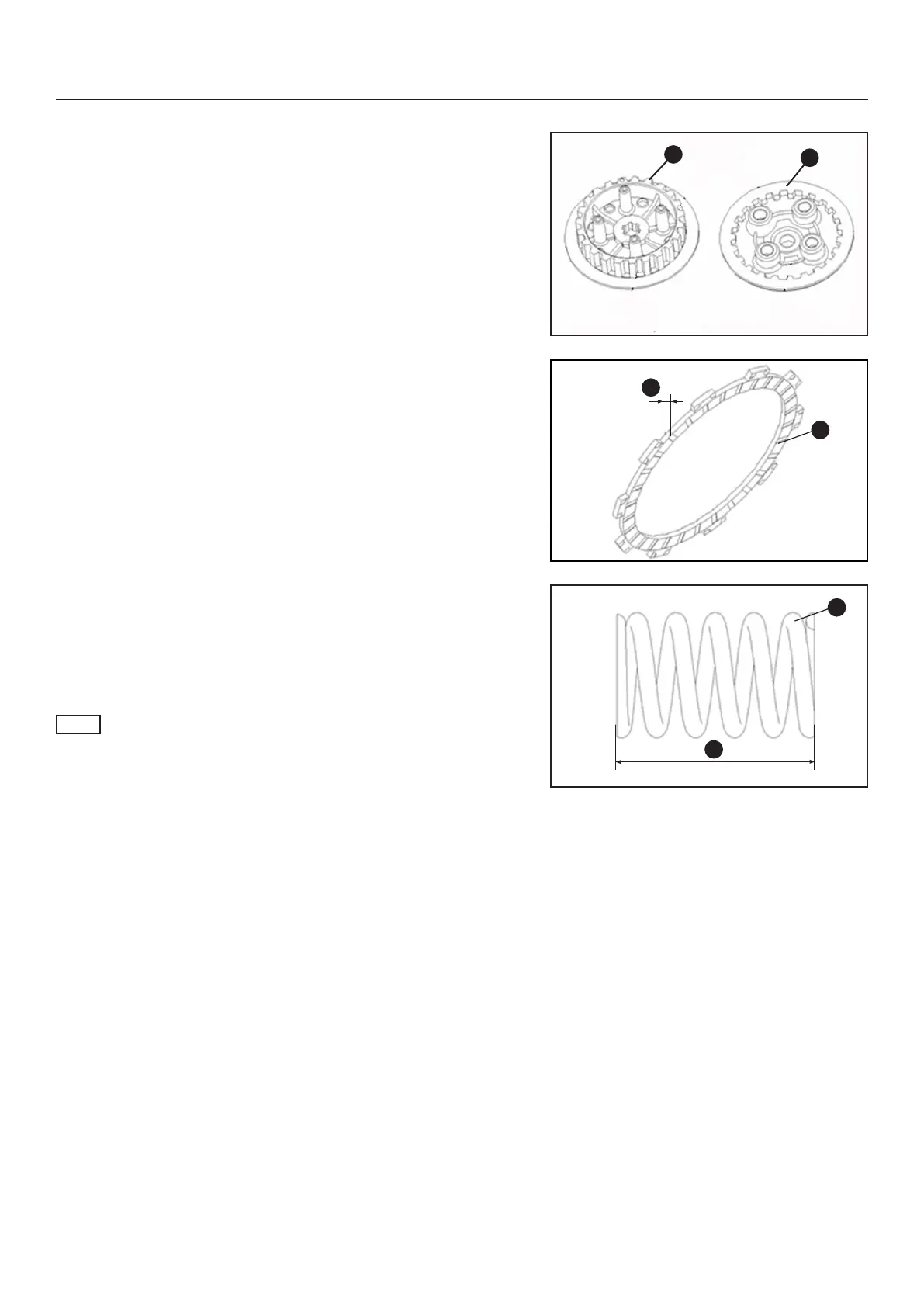

CLUTCH INSPECTION
1. Check if there are burs or broken parts on the center bracket
(1) or pressure plate (2) of clutch. If there are, x and adjust
with a le.
2. Check if teeth of pressure plate and center bracket are injured.
If they are, replace them.
3. Check the thickness of clutch friction plates (3).
Allowable limit X: 2,6 mm
4. Check the metal discs.
5. When the metals worn, wrapped or glazed, replace it.
6. Check the free length of pressure spring (4).
Allowable limit Y: < 29,7 mm.
7. When one of the springs is below the allowable limit or very
weak replace it.
NOTE
Replace clutch friction plates or clutch metal discs always as set.
3
X
Y
4
2
1
